Air Flow Control Regulator Valve
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Regulating | |
| Pressure | Low Pressure | Power | Pneumatic | |
| Material | Other, Die-cast aluminium | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | DN15,DN20,DN25 according to EN 10226 | |
| Place of Origin | Zhejiang, China | Model Number | FRG/2MT,RG/2MT | |
| Brand Name | WASSERMANN | Application | General |
Product Description
Air flow control Regulator valve
Model : FRG/2MT,RG/2MT
Gas pressure closing regulator (RG/2MT) or filter regulator (FRG/2MT) for small users.

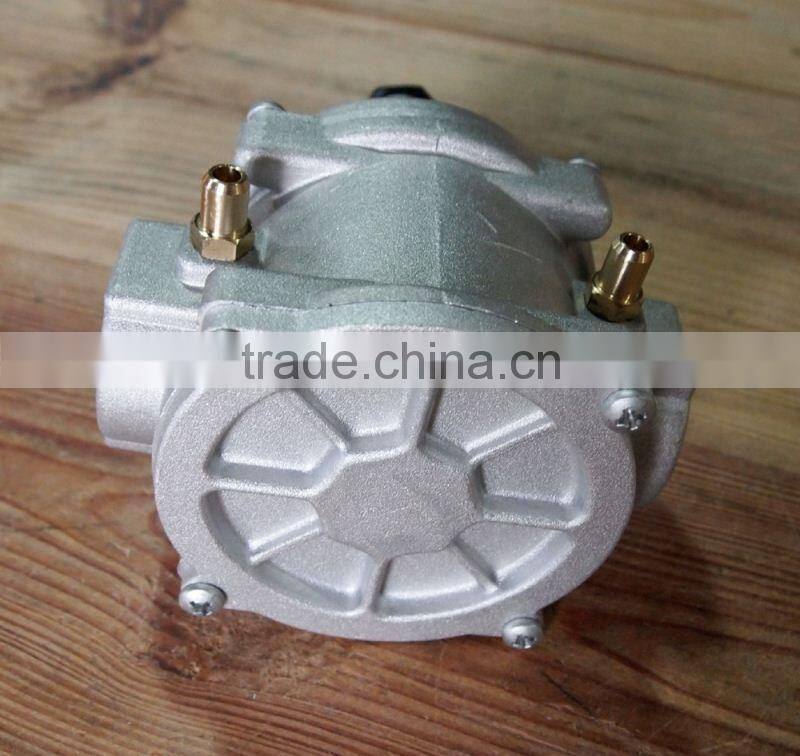

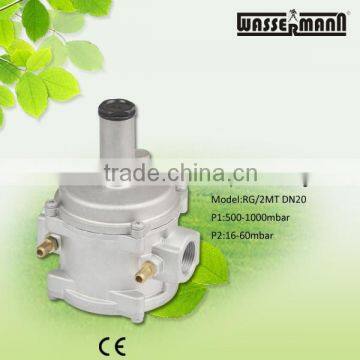

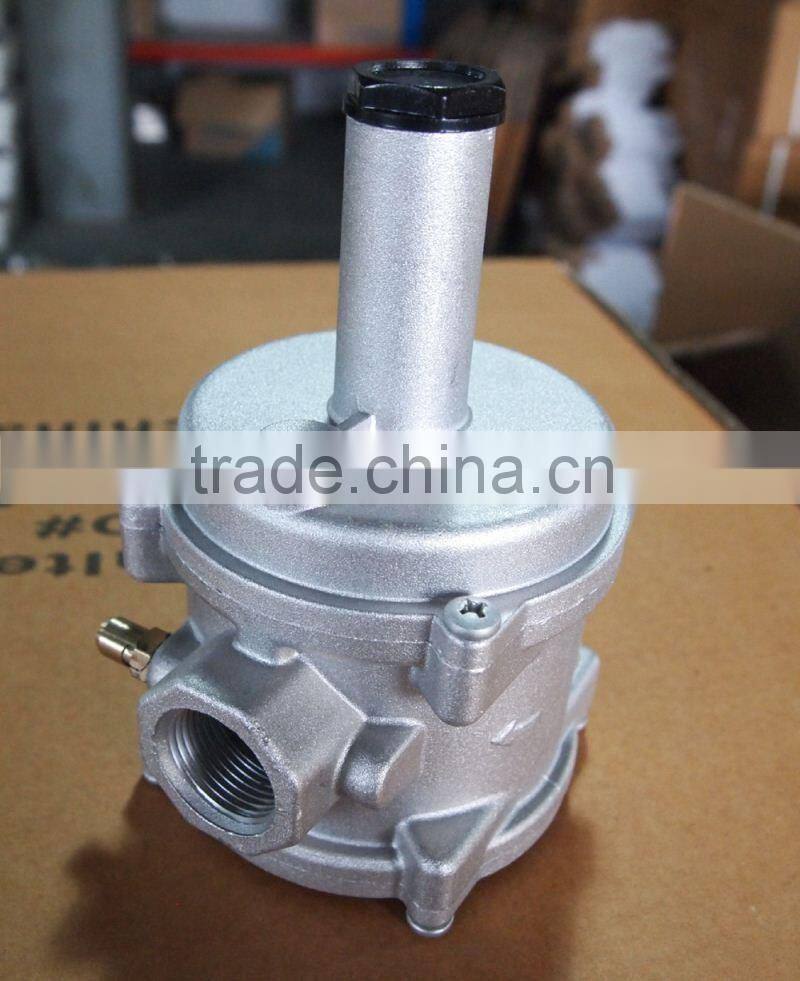

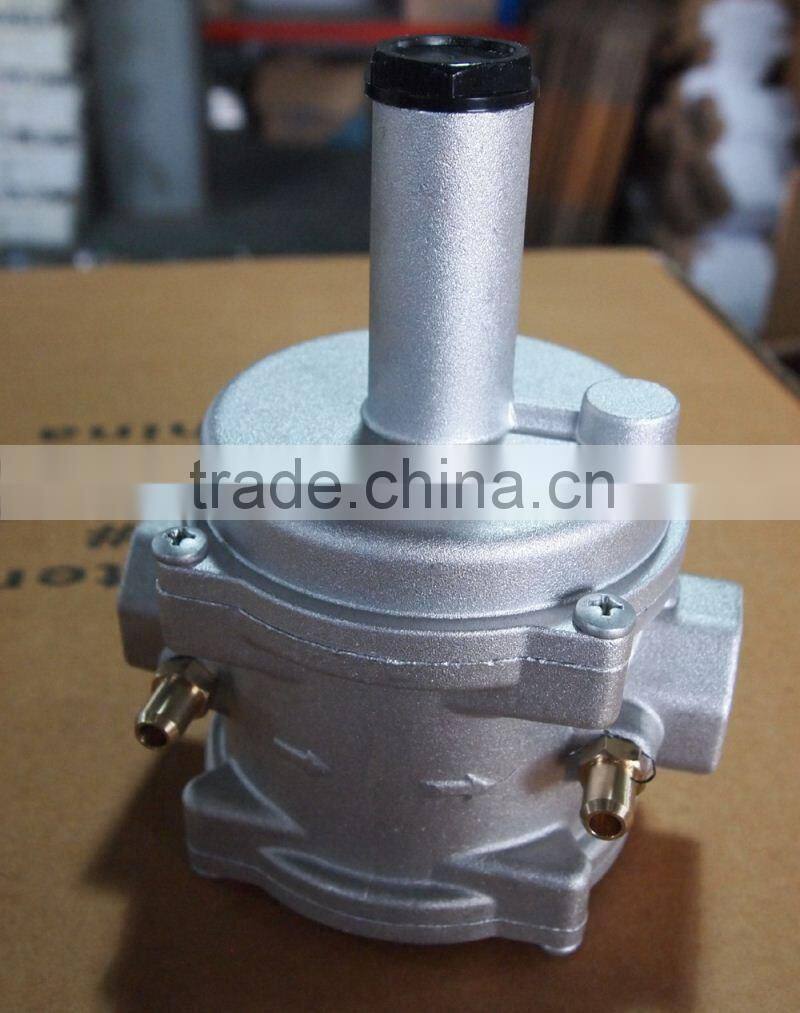

PRODUCT IMAGE
TECHNICAL DATA
• Use: not aggressive gases of the 3 families (dry gases)
• Threaded connections Rp: (DN 15 - DN 20 - DN 25) according to EN 10226
• On request ANSI 150 flanged connections
• Max. inlet pressure:
100 mbar (A version)
100 ÷ 200 mbar (B version)
200 ÷ 300 mbar (C version)
300 ÷ 400 mbar (D version)
400 ÷ 500 mbar (E version)
• Max. outlet pressure: 12 ÷ 200 mbar
• Environment temperature: -15 ÷ +60 °C
• Class: A
• Group: 2
• Filtration: 50 μm
• Filtration class: G 2 (according to EN 779)
MATERIALS
• Die-cast aluminium (UNI EN 1706)
• OT-58 brass (UNI EN 12164)
• 11S aluminium (UNI 9002-5)
• Nylon 30% glass fibre (UNI EN ISO 11667)
• NBR rubber (UNI 7702)
• Viledon
SPARE PART LIST

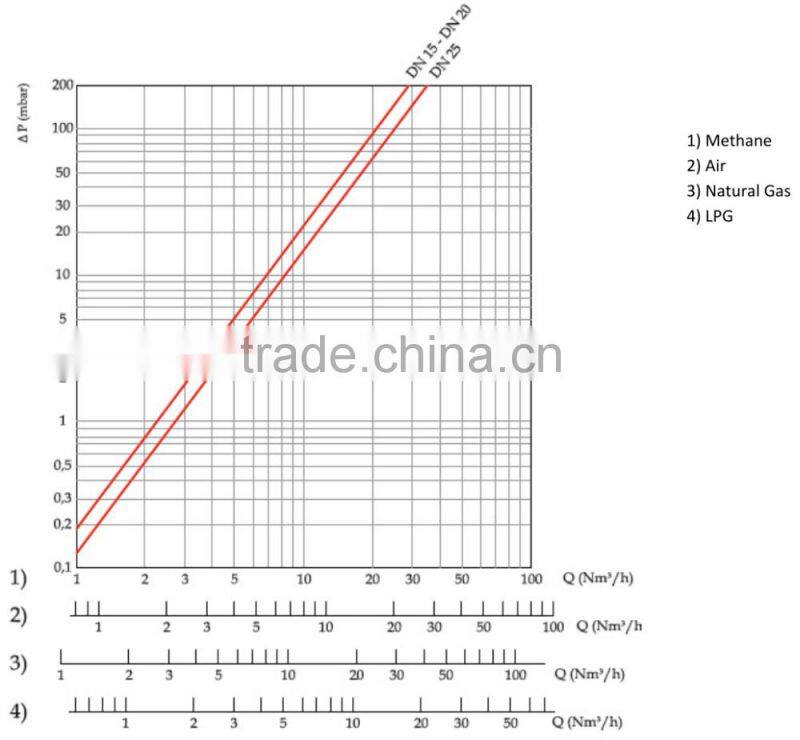

CAPACITY DIAGRAM

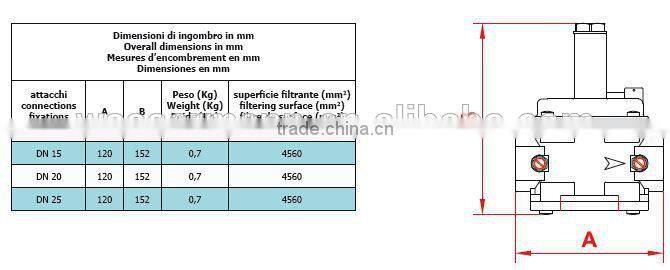

DIMENSIONS

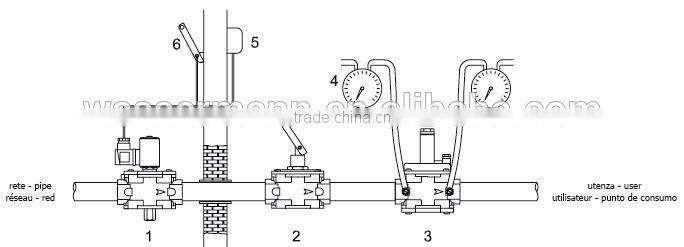

EXAMPLE OF INSTALLATION
EACH REGULATOR IS PACKED BY A SMALL WHITE BOX
INNER BOX SIZE : 125x100x155mm
30PCS ONE CARTON
MASTER CARTON SIZE : 520x388x320mm
N.W. : 21KG/CTN
G.W. : 22KG/CTN
THE LAST BY PALLETS
