WZFQ-A Model Big Paper Rewinding Machine (China Quality Manufacture)

Type	Slitting Rewinder		Computerized	Yes
Place of Origin	Zhejiang, China		Brand Name	RUIHAI
Model Number	WZFQ-A

Specifications

high speed Paper rewinding machine big roll to small roll
-PLC control
-auto tension etc
-auto discharge
CE.certificate

Performance and Characteristics

This  high s rewinding peed paper slitting machine Paper rewinding machine is used for slitting and rewinding various large rolling materials such as paper, (50g/~300g/ capacitance paper, bill paper), double-face adhesive tape, coated paper, aluminum foil, PVC, plastic material, etc. This machine use three motors synchronous for controlling, automatic taper tension, central surface reeling. Frequency converter timing for main motor, keeping speed up and stable operation. It has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading. It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit. (or liquid press style subtense system) Equipped with automatic waste film blowing device. Automatic material loading by pneumatic, matched with inflatable shaft (3"or 6") or pneumatic non-shaft device



Machine Data of   paper rewinding machine

Model WZFQ- 1100A WZFQ- 1300A WZFQ- 1600A Max. Width of unwinding 1100mm 1300mm 1600mm Max. Diameter of unwinding Φ1400mm Φ1400mm Φ1400mm Min. Width of slitting 30mm 30mm 30mm Max. Diameter of rewinding Φ800mm Φ800mm Φ800mm Speed 10-160m/min 10-160m/min 10-160m/min Total power 12kw 12.8kw 16kw Suitable power supply 380V/50hz 380V/50hz 380V/50hz Weight (approx. ) 3000kg 3200kg 3800kg Overall dimension(LxWxH) 3000x2000x1600(mm) 3000x2400x1600(mm) 3000x2700x1600(mm)

Design and specifications are subject to change without notice.

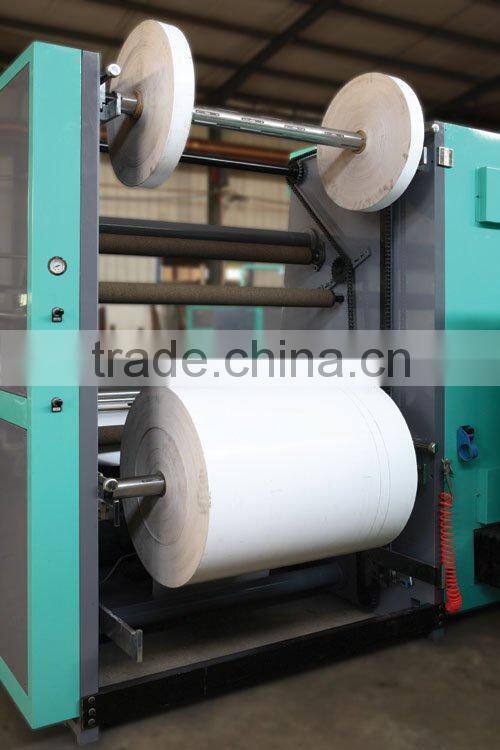

Back viewing of the   paper rewinding machine   :

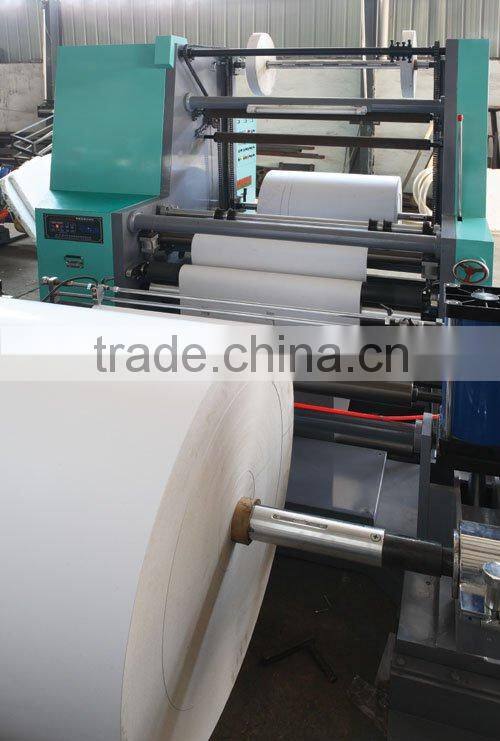

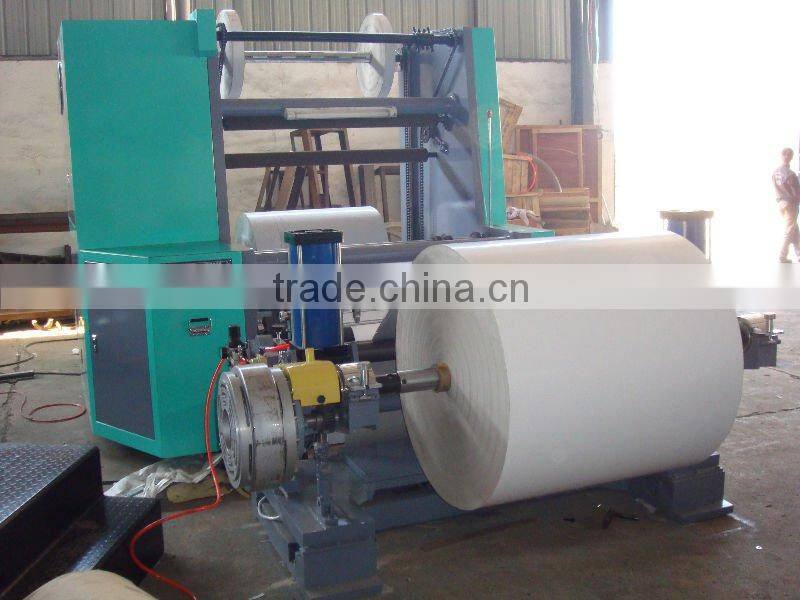

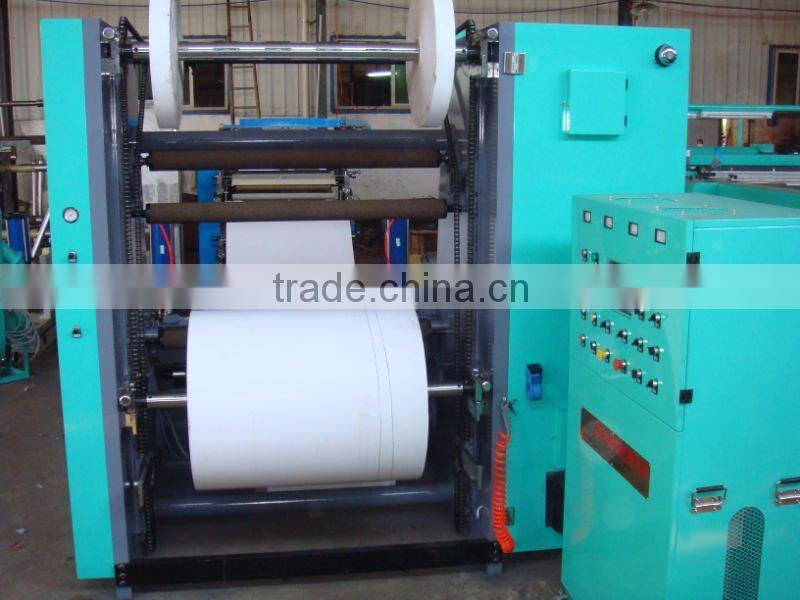

Front viewing of the   paper rewinding machine   :

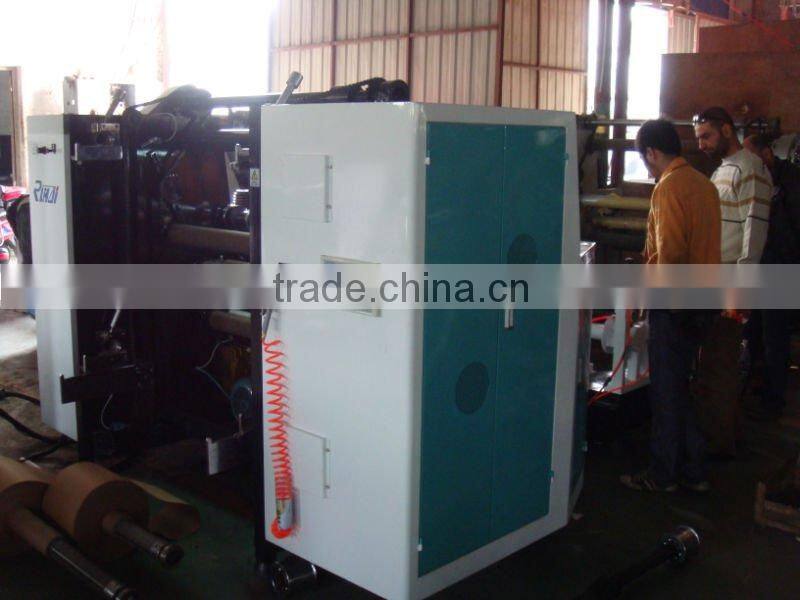

Customer testing on our   paper rewinding machine before shipmment:



If need more pictures and detailed specification vedio of thepaper slitting machine,please be free to contact with us
