Fabric slitting rewinder China good quality manufacture

Type	Slitting Rewinder		Computerized	Other
Place of Origin	Zhejiang, China		Brand Name	RUIHAI
Model Number	WZFQ-C		Voltage	380v
Power(W)	10kw		Certification	CE
Warranty	One year		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

Fabric slitting rewinder machine (slitter and rewinder,slitting rewinder)
-slit big roll to small roll



Performance and Characteristics
This high speed  Fabric slitting rewinding machine (slitter and rewinder,slitting rewinder)is used for slitting and rewinding various large rolling materials such as paper,(20g/-300g/)cellophane paper,bill paper,double-face adhesive tape,PVC,weave material,nowoven of cloth,etc.Adopt A and B pneumatic shaft structure for rewinding.It adopts photoelectric automatic error correction adjustment system for unwind-ing,anomalistic materials will be easy slit.(or liquid press style subtense system)Equipped with automatic waste film blowing device.(vertical knife structure)Manual material loading for unwinding(or pneumatic automatic material loading)with taper cover style pneumatic shaft.(3,6)



Main Technical Parameters of film slitting machine

Model WZFQ- 1100C WZFQ- 1300C WZFQ- 1600C Max.width of unwinding 1100mm 1300mm 1600mm Max.diameter of unwinding Φ1400mm Φ1400mm Φ1400mm Min.width of slitting 20mm 20mm 20mm Max.diameter of rewinding Φ500mm Φ500mm Φ500mm Speed 10-120m/min 10-120m/min 10-120m/min Precision of slitting ±0.2mm ±0.2mm ±0.2mm Total Power 7kw 7kw 8.5kw Suitable power supply 380V/50Hz 380V/50Hz 380V/50Hz Weight(approx) 2100kg 2300kg 2600kg Overall dimension(LxWxH) 2850x2150x1350(mm) 2850x2350x1350(mm) 2850x2650x1350(mm)

Design and specifications are subject to change without notice.

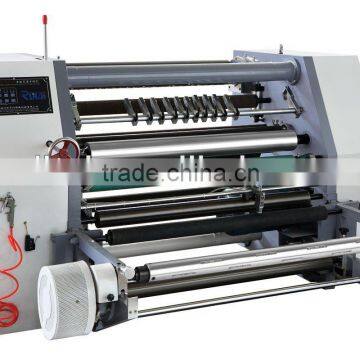

 More pictures of  fabric Fabric slitting machine :



Can be with two ways of cutter of film slitting machine:

Unwinding rolls(one side is connecting with machine)of film slitting machine:

More details and if need vedios of of film slitting machine running please do not hesitate to contact with us
