KFQ Model High Speed Jumbo Paper Roll Slitting Machine
- ANY PORT IN CHINA
 - T/T

You May Like
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | Other | Place of Origin | Zhejiang, China | |
| Brand Name | RUIHAI | Model Number | KFQ | |
| Voltage | 380v 410v | Certification | CE SGS | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
high speed paper slitting machine (slitter rewinder) suit for slitting various paper roll to small roll
Performance and Characteristics
This high speed roll slitting machine (slitter rewinder) is used for slitting and rewinding various large rolling materials such as paper, (80g/~400g/ kraft paper, cellophane paper, bill paper), double-face adhesive tape, PVC, plastic material, etc.
This slitting machine use PLC controller, automatic taper tension, central surface reeling. Frequency converter timing for main motor, keeping speedup and stable operation.
This slitting machinehas the functions of automatic metering, automatic alarm, etc. With A, B inflatable shaft structures for rewinding; Finished products are automatic loading and unloading. It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit. (or liquid press style subtense system) . Equipped with automatic waste film blowing device. Automatic material inputting by pneumatic, matched with inflatable shaft (3"or 6") or pneumatic non-shaft device
Machine Data
Model  | KFQ-1100  | KFQ-1300  | KFQ-1600  |
Max. Width of unwinding  | 1100mm  | 1300mm  | 1600mm  |
Max. Diameter of unwinding  | Φ1400mm  | Φ1400mm  | Φ1400mm  |
Min. Width of slitting  | 50mm(up to materials)  | 50mm(up to materials)  | 50mm(up to materials)  |
Max. Diameter of rewinding  | Φ1200mm  | Φ1200mm  | Φ1200mm  |
Speed  | 10-250m/min  | 10-250m/min  | 10-250m/min  |
Total power  | 18kw  | 18kw  | 21kw  |
Suitable power supply  | 380V/50hz  | 380V/50hz  | 380V/50hz  |
Weight (approx. )  | 2800kg  | 3100kg  | 3800kg  |
Overall dimension(LxWxH)  | 5700x2100x2040(mm)  | 5700x2300x2040(mm)  | 5700x2600x2040(mm)  |
More details and if need vedios of machine running please do not hesitate to contact with us
Machine working in customer workshop

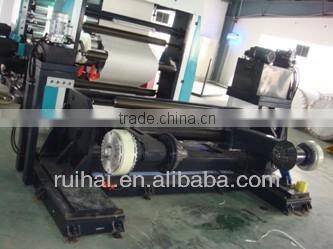

Unwinding is with hydualic loading system

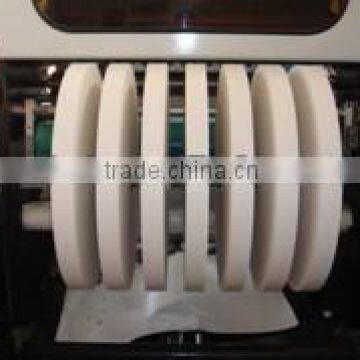

Rewinding shaft (automatci discharge)

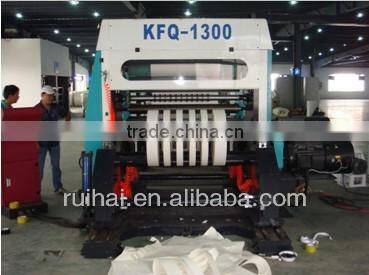

Japanese customer testing the machine before shippment

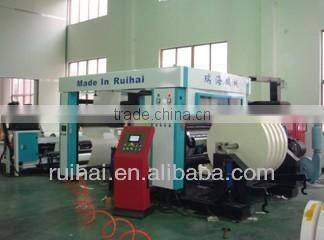

Work shop
Ce certification certify we are the final producer of this machine
If request more information or machine video please be free to contact with us
