Home > Products > Cutting machine series (Roll to sheet) > HQJ-D(A4)Model A4 Cut Size Machine ( A4 Paper Machine A4 Paper Cutter )

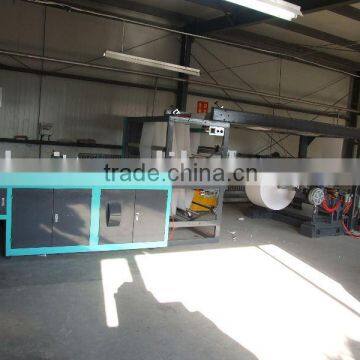

HQJ-D(A4)Model A4 Cut Size Machine ( A4 Paper Machine A4 Paper Cutter )
- ANY PORT IN CHINA
- T/T
You May Like
Product Details
| Type | Paper Cutting Machine | Computerized | Yes | |
| Place of Origin | Zhejiang, China | Brand Name | RUIHAI | |
| Model Number | HQJ-D(A4) |
Product Description
Specifications
A4 cut size machine ( A4 paper machine A4 paper cutter )-Specalist for A4 size A3 and A1 etc-can be 1,2,4 rolls
-PLC control
Performance and Characteristics
This A4 cut size machine ( A4 paper machine A4 paper cutter ) is suitable for cutting big rolling packaging materials such as paper,paper-plastic,multicolor laminated material,etc.
1. It adopts PLC touch screen control, servo motorfor controlling constant-length cutting.
2. It adopts pneumatic,photoelectric sensor for controlling transminssion system,with photo,electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
3. This machine has the functions of the frequency converter timing device,auto-matic counting,stop working by alarm magnetic powder tension control,can be cutted vertically,adopt blower to get rid of waste.
Machine Data
| Model | HQJ-1100D(2 or 4 roll) | HQJ-1400D(2.4roll) |
Max.width of cutting | 1000mm | 1300mm |
Max diameter of material | Φ1400mm | Φ1400mm |
Min.width of cutting | 50mm | 50mm |
Length of cutting | 20-400mm | 20-400mm |
Speed | 10-140times/min | 10-140times/min |
Precision | ±0.2mm | ±0.2mm |
Total Power | 9.5kw | 11kw |
Weight | 3500kg | 4000kg |
Overall dimension(LXWXH) | 8600x1500x2000mm | 8600x1800x2000mm |
If need more details or vedio of the machine please be free to contact with us
