Carbon steel DN50 Y-pipe filter

Material

stainless steel, carbon steel

Introduction

Y type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end .

effect

Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .

property

Housing material : carbon steel , stainless steel

Nominal diameter : DN15-DN600 mm

Filter screen material : stainless steel

Sealing material : NBR , pllytef (according to working medium )

Working temperature : no more than 90 centigrade

Connection type : flange

Normal pressure : 1.6-10MPa

Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

feature

easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .

Technical parameters

1.Housing material : carbon steel , stainless steel

2.Nominal diameter : DN15-DN600 mm

3.Filter screen material : stainless steel

4.Sealing material : NBR , pllytef (according to working medium )

5.Working temperature : no more than 90 centigrade

6.Connection type : flange

7.Normal pressure : 1.6-10MPa

8.Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

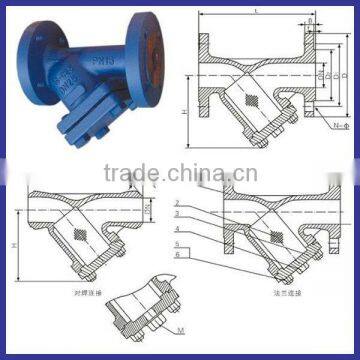

Model

Size (mm)

Valid filter area m2

DN

In

L

H

H1

FTR-15×*

15

1/2

125

70

150

0.00185

FTR-20×*

20

3/4

145

70

150

0.00281

FTR-25×*

25

1

160

80

160

0.00343

FTR-32×*

32

1 1/4

180

90

180

0.00486

FTR-40×*

40

1 1/2

200

100

240

0.00767

FTR-50×*

50

2

220

130

250

0.01161

FTR-65×*

65

2 1/2

260

165

350

0.02111

FTR-80×*

80

3

280

195

390

0.03029

FTR-100×*

100

4

320

230

450

0.04063

FTR-125×*

125

5

320

230

490

0.05523

FTR-150×*

150

6

380

335

580

0.07709

FTR-200×*

200

8

495

420

690

0.11967

FTR-250×*

250

10

595

500

800

0.19155

FTR-300×*

300

12

640

580

950

0.26738

FTR-350×*

350

14

750

650

1100

0.30926

FTR-400×*

400

16

800

700

1360

0.40946

FTR-450×*

450

18

850

800

1500

0.55638

FTR-500×*

500

20

900

875

1650

0.65385

FTR-550×*

550

22

1000

940

1780

0.76956

FTR-600×*

600

24

1250

1050

1900

0.87528

Our company was founded in 1987 ,major products are hydraulic filter , air filter , duplex filter ,etc , high quality and shortest delivery time is our advantages .

High quality and shortest delivery time is our advantages , our products export to USA, India ,Malaysia ,Saudi Arabia ,Philippines ,Syria
South Africa ,Brazil ,Australia ,Iran ,Venezuela ,France ,etc .
