FIR series ss 180 mesh Y type filter
- Tianjin Shanghai
- T/T Credit Card
You May Like
Product Details
Condition | New | Type | Return Filter | |
Structure | Cartridge | Place of Origin | Henan, China | |
Brand Name | D.K | Model Number | FIR | |
Power(W) | 99.9% | Weight | 10-200kg | |
Dimension(L*W*H) | 800*70 | Certification | ISO9001-2008 | |
Warranty | One year | After-sales Service Provided | Overseas service center available |
Product Description

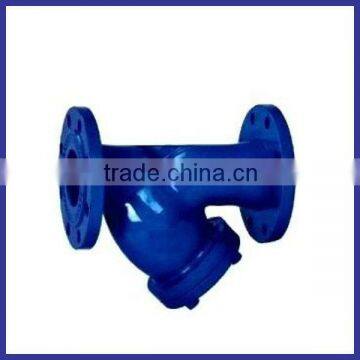

ss 180 mesh Y type filter
Material:stainless steel, carbon steel
property:Housing material : carbon steel , stainless steel
Nominal diameter : DN15-DN600 mm
Filter screen material : stainless steel
Sealing material : NBR , pllytef (according to working medium )
Working temperature : no more than 90 centigrade
Connection type : flange
Normal pressure : 1.6-10MPa
Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)
Introduction:Y type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end .
effect:Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .
feature:easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .
ss 180 mesh Y type filter
Technical parameters
- Housing material : carbon steel , stainless steel
- Nominal diameter : DN15-DN600 mm
- Filter screen material : stainless steel
- Sealing material : NBR , pllytef (according to working medium )
- Working temperature : no more than 90 centigrade
- Connection type : flange
- Normal pressure : 1.6-10MPa
- Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)
ss 180 mesh Y type filter
Model and size
Model | Size (mm) | Valid filter area m2 | ||||
DN | In | L | H | H1 | ||
FIR-15×* | 15 | 1/2 | 125 | 70 | 150 | 0.00185 |
FIR-20×* | 20 | 3/4 | 145 | 70 | 150 | 0.00281 |
FIR-25×* | 25 | 1 | 160 | 80 | 160 | 0.00343 |
FIR-32×* | 32 | 1 1/4 | 180 | 90 | 180 | 0.00486 |
FIR-40×* | 40 | 1 1/2 | 200 | 100 | 240 | 0.00767 |
FIR-50×* | 50 | 2 | 220 | 130 | 250 | 0.01161 |
FIR-65×* | 65 | 2 1/2 | 260 | 165 | 350 | 0.02111 |
FIR-80×* | 80 | 3 | 280 | 195 | 390 | 0.03029 |
FIR-100×* | 100 | 4 | 320 | 230 | 450 | 0.04063 |
FIR-125×* | 125 | 5 | 320 | 230 | 490 | 0.05523 |
FIR-150×* | 150 | 6 | 380 | 335 | 580 | 0.07709 |
FIR-200×* | 200 | 8 | 495 | 420 | 690 | 0.11967 |
FIR-250×* | 250 | 10 | 595 | 500 | 800 | 0.19155 |
FIR-300×* | 300 | 12 | 640 | 580 | 950 | 0.26738 |
FIR-350×* | 350 | 14 | 750 | 650 | 1100 | 0.30926 |
FIR-400×* | 400 | 16 | 800 | 700 | 1360 | 0.40946 |
FIR-450×* | 450 | 18 | 850 | 800 | 1500 | 0.55638 |
FIR-500×* | 500 | 20 | 900 | 875 | 1650 | 0.65385 |
FIR-550×* | 550 | 22 | 1000 | 940 | 1780 | 0.76956 |
FIR-600×* | 600 | 24 | 1250 | 1050 | 1900 | 0.87528 |
ss 180 mesh Y type filter
Xinxiang D.King Industry Co., Ltd
-- Xinxiang D.King Industry Co., Ltd was established 1987, and it is specialized in filtration for 30 years .The major products are hydraulic filter , air filter , water filter , duplex filter , candle filter , filter machine .etc. -- Xinxiang D.King Industry Co., Ltd is a member of the Xinxiang City Filter Association .take part in the research , design and produce of the filter and to make the filter standard. -- Xinxiang D.King Industry Co., Ltd was the golden supplier on Alibaba for its good reputation. Engaged in international business for more than 10 years , the products has its own market in Australia, The Middle East, South Korea, southeast Asia ,South America etc. -- Xinxiang D.King Industry Co., Ltd is one of founder enterprise of Xinxiang Chamber of Commerce . Amy ,the manager of the company , has served as the vice chairwoman of the chamber of commerce all the time and she is mainly responsible for propaganda work, and some important activities between the chamber of commerce. -- Xinxiang D.King industry Co.,Ltd is a manufacturer of filters , have got ISO9001:2008, BV and CE certificate. -- Welcome to visit our factory any time! |
Friends From All Over The World
Love Outreach
Before purchase:
|
Q: Are you trading company or manufacturer ?
A: We are OEM
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How can I trust you?
A:I don't know,but you can see our sertification.
...
