18/24/36'' Electric Actuator for the Tracking System

Feature electric actuator for the tracking system

G-Rock solar tracking linear actuator greatly improves the performance of the PV system, it drives the PV panel to follow the course of the sun, so that the panel surface is alays in an optimum angel to su ray, as the testin data shows, can increase the amount of power by 30%-50%, and G-Rock solar tracking actuator character list below;

1. Featuring DC, 12v to 48v optional.
2. Limit switch built-in. The cam-operated limit switches form part of the actuator body and is contained within a robust metal housing.

3. Kinds of options on sensor. For machines that require accurate positioning,

it is possible to replace the third switch with a single-turn geared potentionmeter to control the position of the actuator throughout the stroke.
4. Lubricated with long-life grease, armed with tube boot and motor boot, the linear actuators offer unbeatable reliability and

virtually maintenance-free operation.
5. Anti-rust quality.
6. Self-locking function.
Especially, we utilize below element:

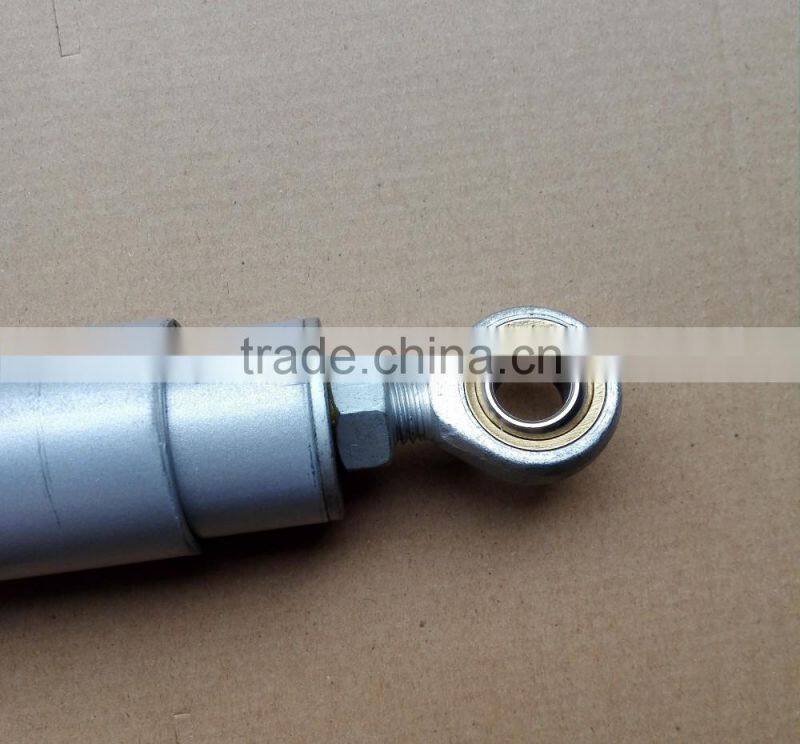

7. Industrial grade rod end, which guarantees smooth tracking through the years

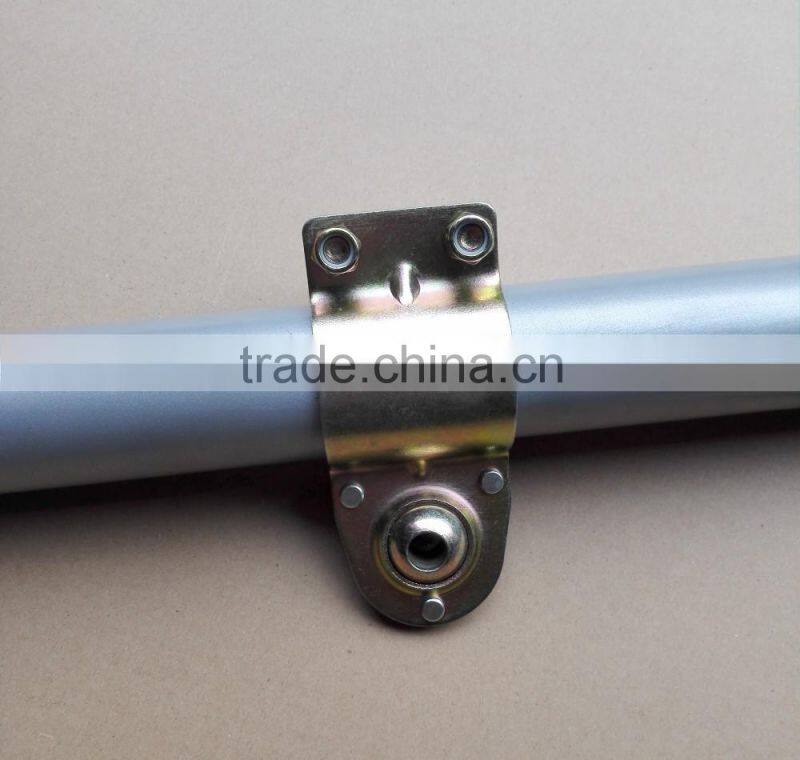

8. Super-grip heavy duty bracket: No more slipping tube, hold up to more than 8000lbs.
9. -30℃ cold resistance.
10. Bronze nut, super-hold high static load capacity.

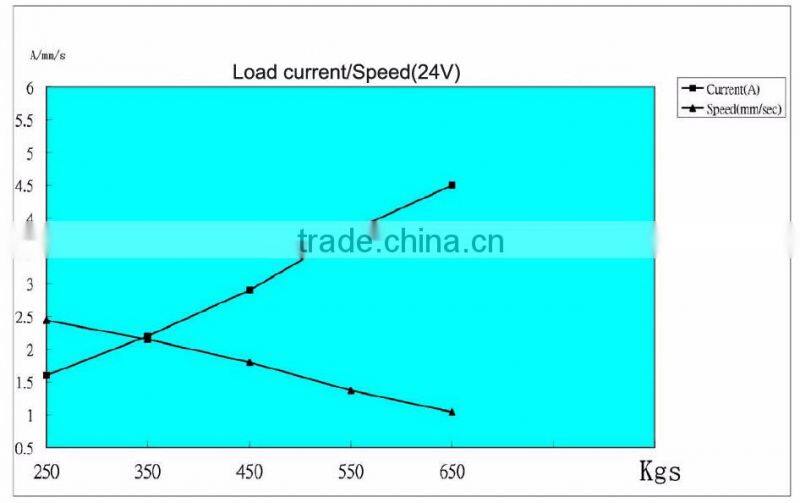

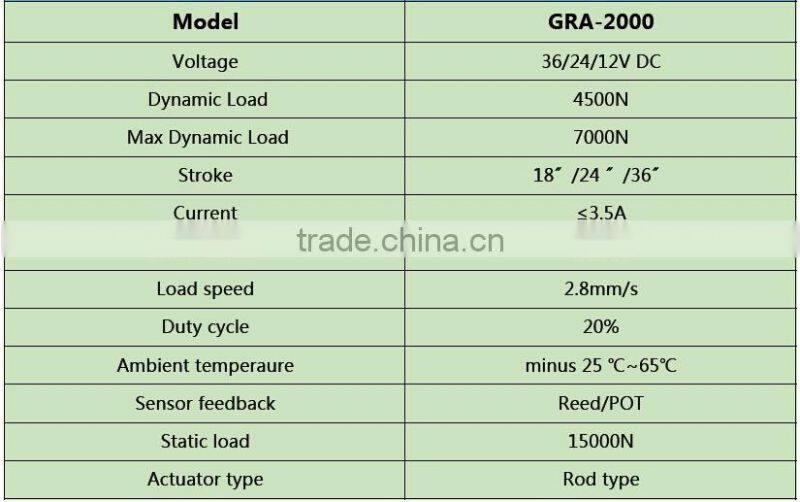

Parameters

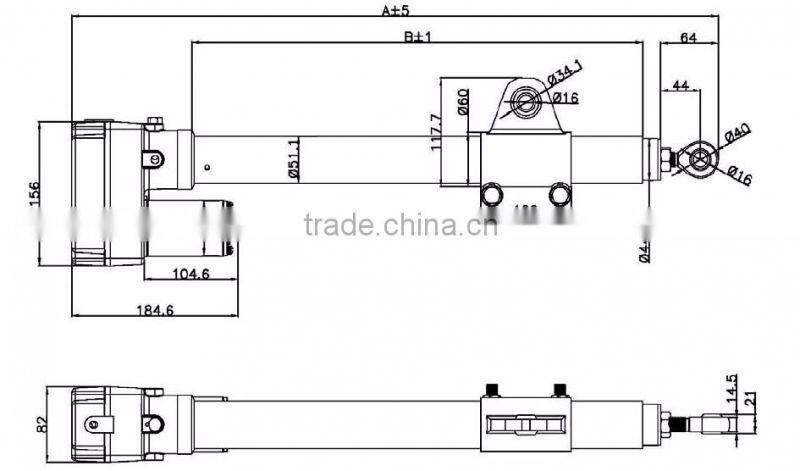

Drawing & Dimension

Parameters

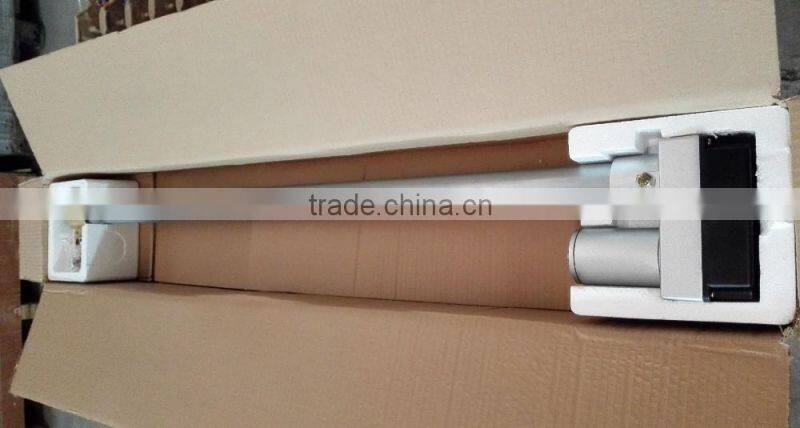

Packaging Detail

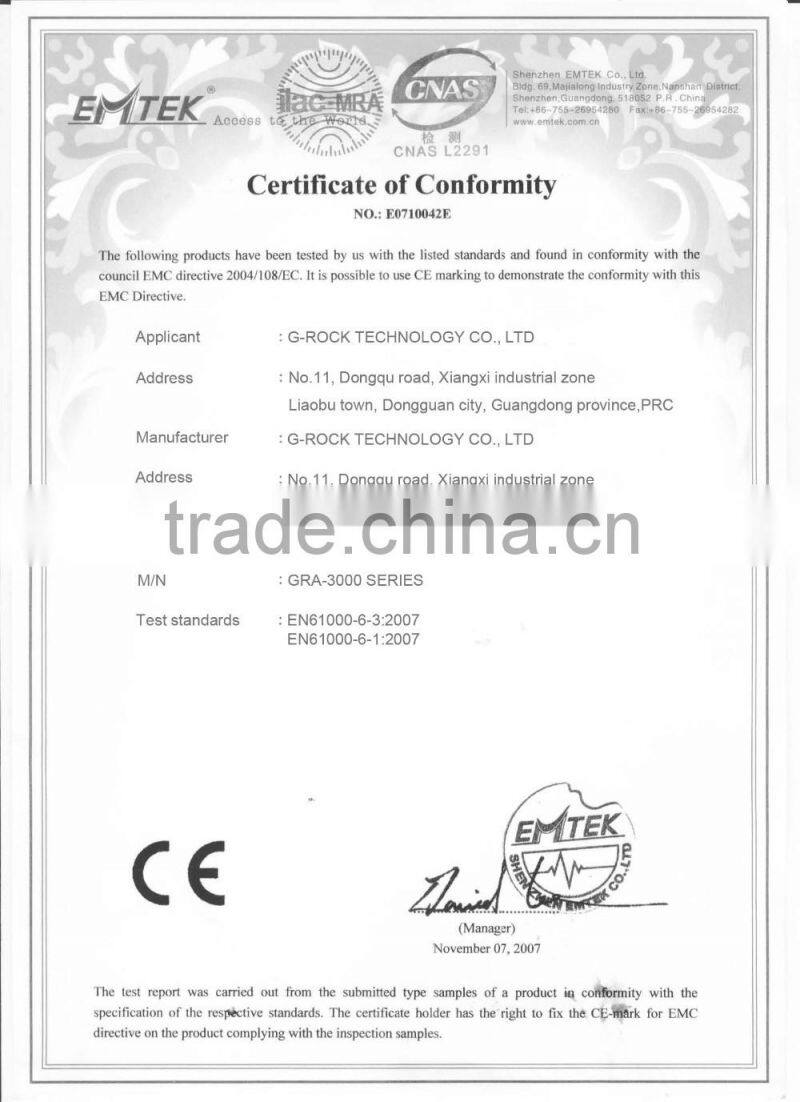

CE certification

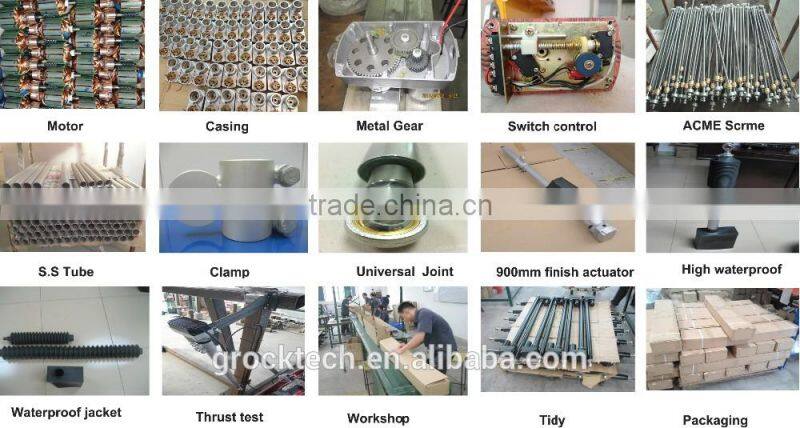

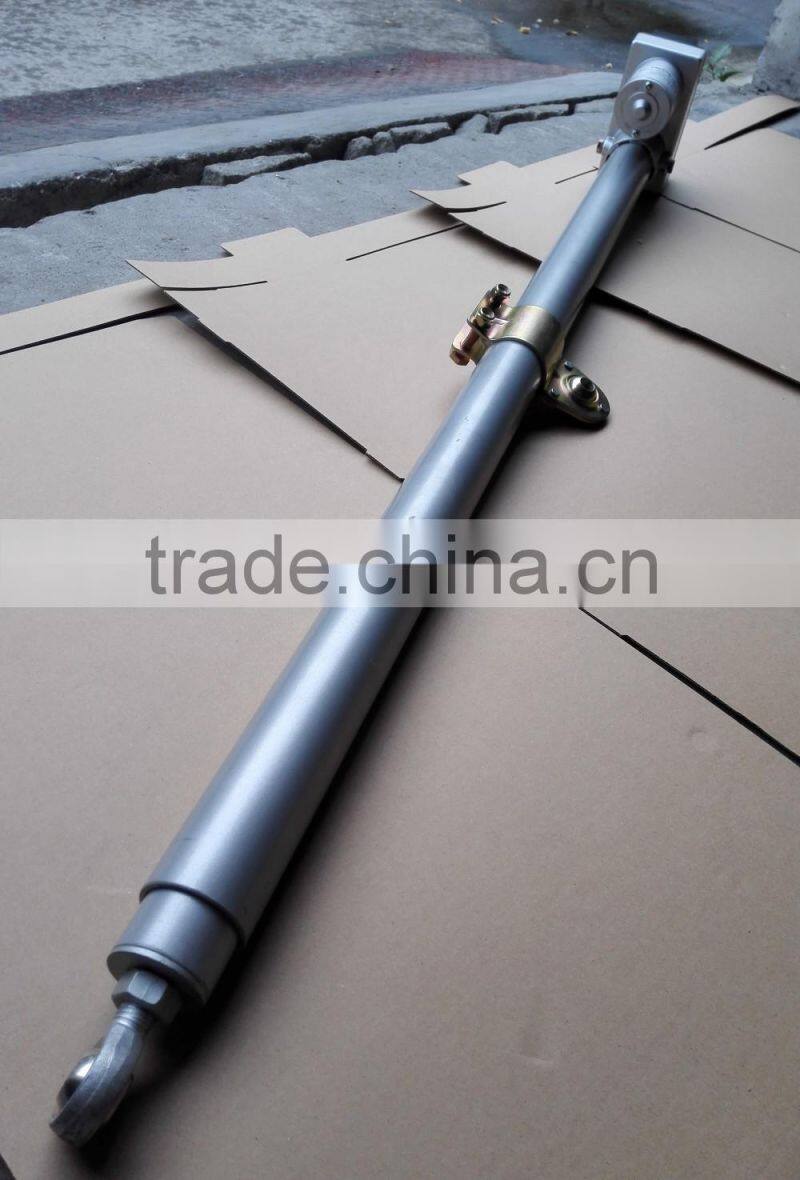

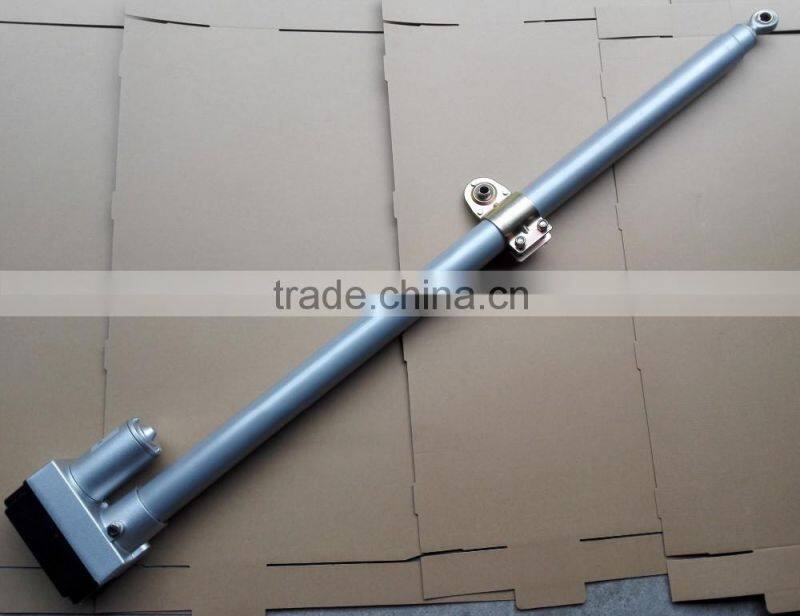

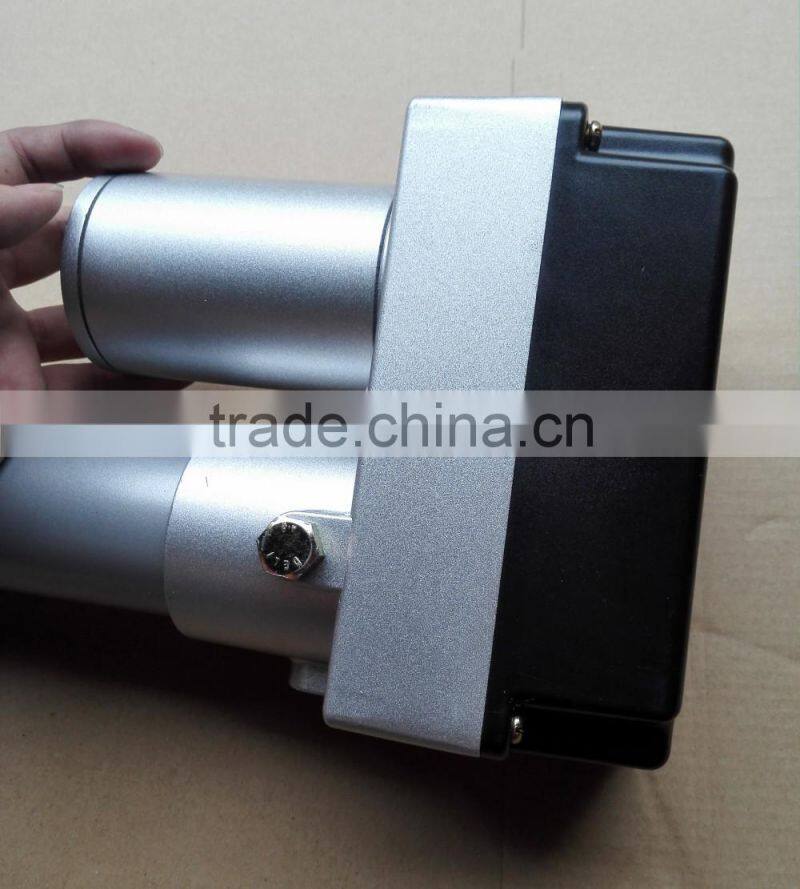

Photos View

Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

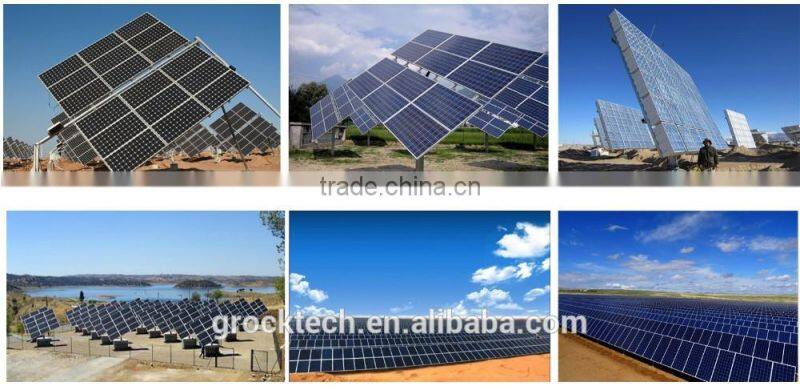

4, A number of large-scale of solar power station project success at home and abroad.

About us

G-Rock technology Co., Ltd found in 2005,  Built as a spin-off from JAEGER INDUSTRIAL CO., LTD,

G-ROCK (old name is JGR industrial co., ltd) has operated since 2005, intergrated the R&D, and grown

up to be a reliable quality products manufacturer in Hong Kong with factories in Dongguan city,China.

Full series of actuators, cover the whole linear industry. sample and bulk production delivery is fast,

Also with 24 hours online service and professional after-sales team.

The factory is located in Dongguan city, the transportation is quite convenient. near Guangzhou port and

Shenzhen port.
