Home > Products > Outdoor Waterproof Split Core Current Transformer > IP67 Waterproof Outdoor Split Core Toroidal Current Transformer I.D.36mm 5A Output

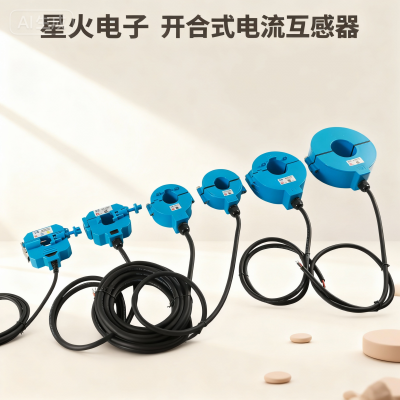

IP67 Waterproof Outdoor Split Core Toroidal Current Transformer I.D.36mm 5A Output
- T/T L/C PayPal D/P Western Union Other
 - 7 days

You May Like
-


CE Split Core Current Transformer 150A/5A ID 24mm Low Voltage CT
 -


CE Low Voltage Split Core Current Transformer 600A/5A ID 36mm
 -


Flexible Current Transformer 2000A/0.333V Rogowski Coil
 -


UKCA Split Core Current Transformer Low Voltage 200A/5A ID 24mm
 -


UL Split Core Current Transformer 100A 0.333V Output Open Type CT
 -


UL Split Core Current Transformer 120A 80mA Cts Clip on Clamp ID 16mm

Product Details
| Application | Power, Electronic | Phase | Single | |
| Transport Package | Cartons | Specification | Piece | |
| Trademark | Elecspark | Origin | China |
Product Description
outdoor waterproof current transformer
pecifications Of Outdoor Waterproof Anti-UV Split Core Current Senor
| Model | FSCT-T36 |
| Standards | GB 20840 (IEC 61869), GB4208 |
| Window size | 36mm |
| IP rating | IP67 |
| Burden | 1.5VA-5VA |
| Rated current | 100-800 Arms |
| Max current | 800 Arms |
| Turns | 100-3000T |
| Accuracy class | 0.5, 1.0 |
| Equipment maximum voltage | 0.66/0.72KV |
| Rated output | 5A,1A,mA,mV,V |
| Wire lead | 2*2.5mm2 sheathed wire |
| Insulation strength | 3KV VAC/min |
| Insulation impedance | DC500V/100MΩ |
| Rated frequency | 50-400HZ |
| Working temperature | -40oC~70oC |
| Storage temperature | -40oC~90oC |

Application Of Outdoor Waterproof Anti-UV Split Core Current Senor 600A 5A
.Power quality monitoring
. Power instrument and meter
. Distributed measurement systems
. Measurement of current of power supply equipment below 10KV
. Microcomputer protection
Installation Of Outdoor Waterproof Anti-UV Split Core Current Senor 600A 5A
