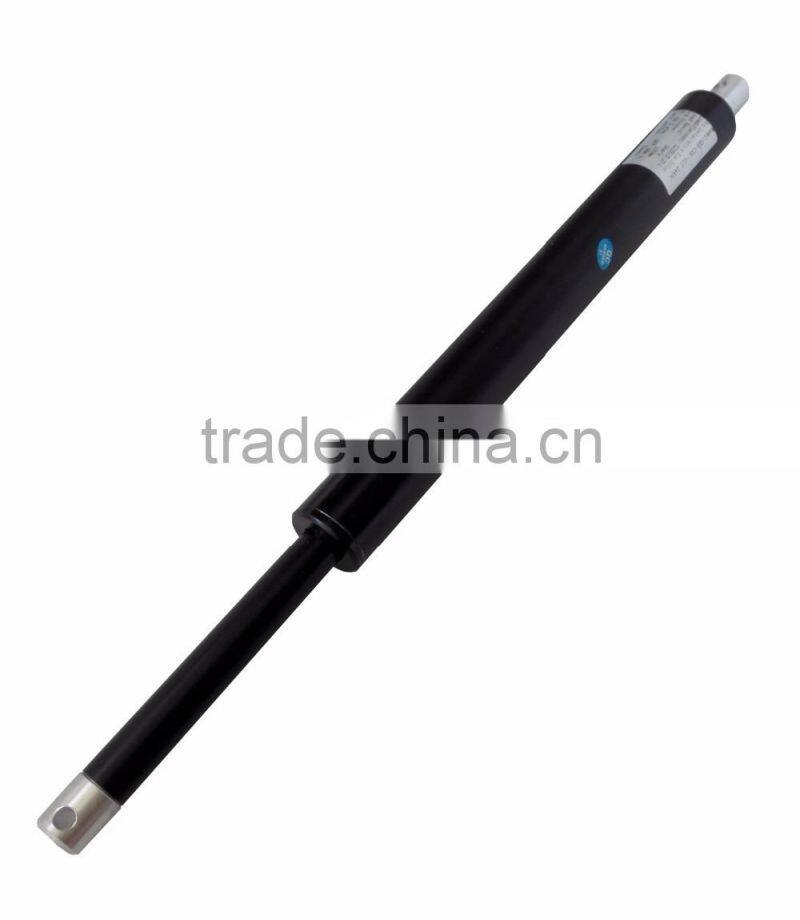

Tubular motor with plant gear box 12v linear actuator for window open

Feature of window actuator

G-Rock micro actuator, with compact and flexible installation advantage, the thrust from 60-5000N, load speed from 3.5-8.0mm/s, tube diameter with the range 20,30,33,42,50mm, widely used in small automatic industry, side window, etc.

1. Featuring DC, 12 /24V optional;
2.Simple but delicacy design,low noise operation;

3. Tubular motor+Variable speed gear box;

4.  Aluminium alloy tube;

5.  Stroke:S=50-300mm, other stroke can be customized;
6. Self-locking function;
7.  Endurance tests(10000 cycles) are carried out;
8.  Duty cycle:10%;
9.  Protection class IP56;

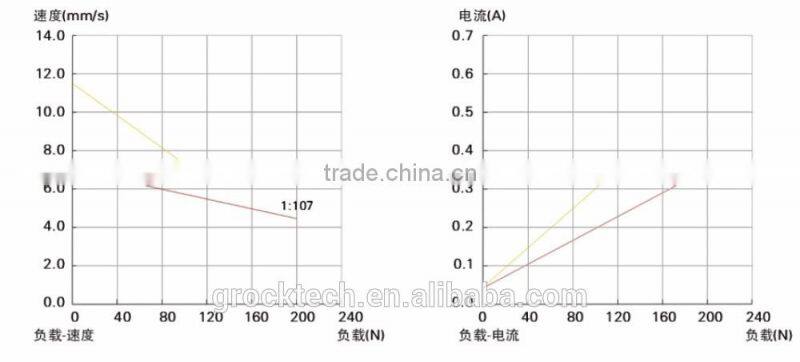

Parameters

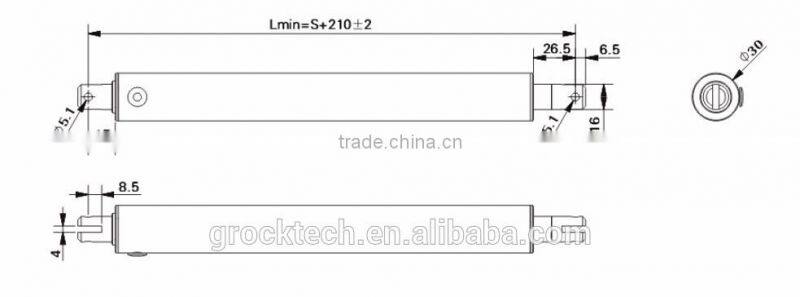

Drawing & Dimension

Parameters

Packaging Detail

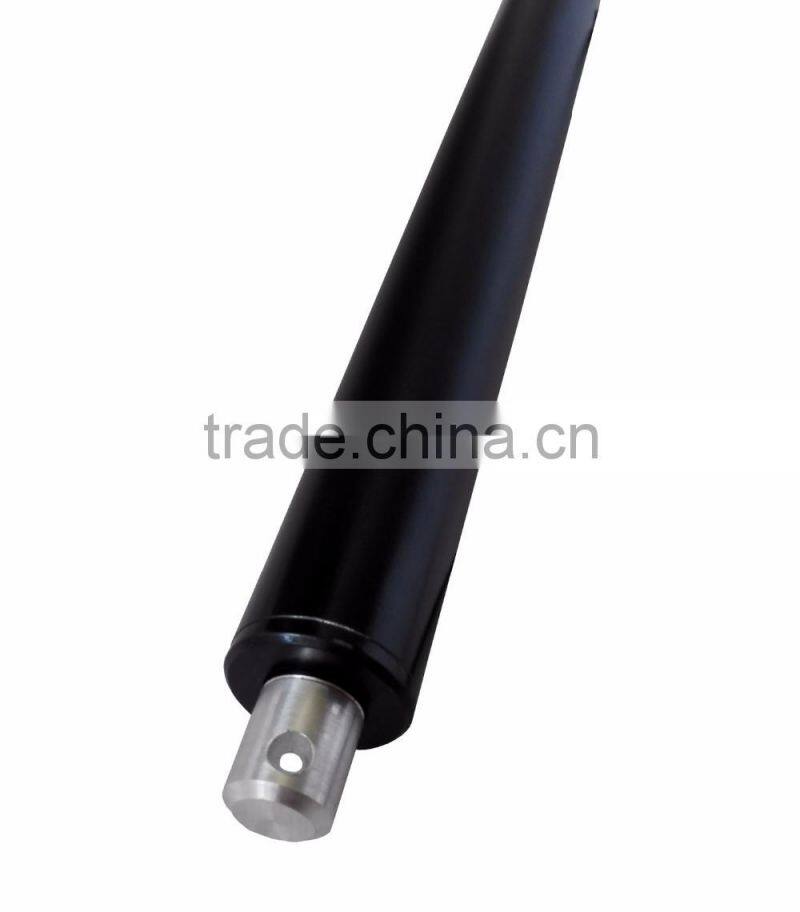

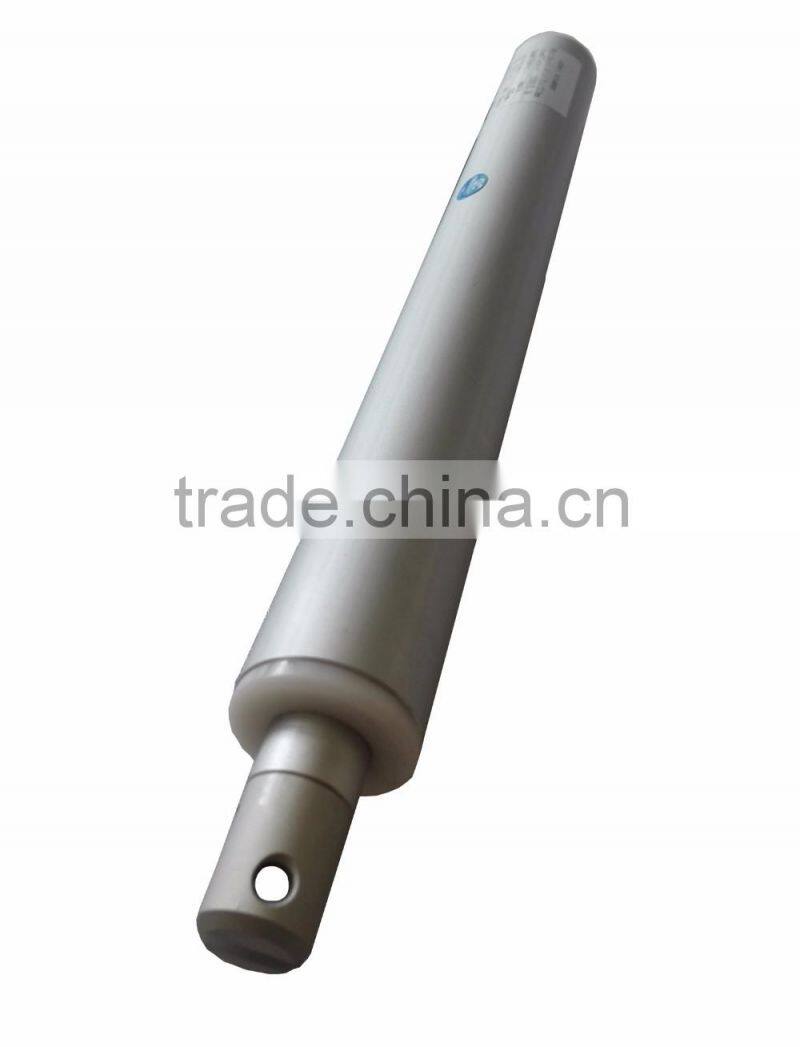

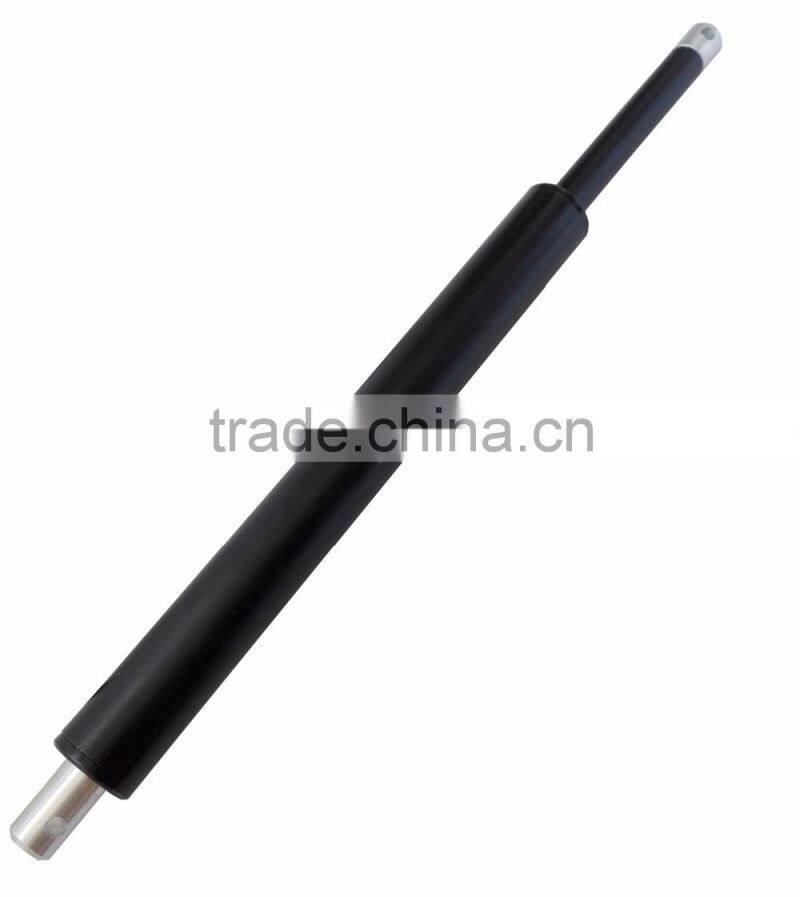

Photos View

Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

About us

G-Rock technology Co., Ltd found in 2005,  Built as a spin-off from JAEGER INDUSTRIAL CO., LTD,

G-ROCK (old name is JGR industrial co., ltd) has operated since 2005, intergrated the R&D, and grown up to be a reliable quality products manufacturer in Hong Kong with factories in Dongguan city,China.

Full series of actuators, cover the whole linear industry. sample and bulk production delivery is fast,

Also with 24 hours online service and professional after-sales team.

The factory is located in Dongguan city, the transportation is quite convenient. near Guangzhou port and Shenzhen port.
