Dear customer,

   Thank you for visiting our website.

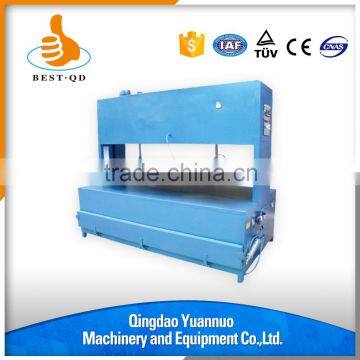

   We are professional manufacturer of Acrylic Vacuum Forming Machine and other AD sign equipment since 2008. This machine is mainly used to thermoforming Acrylic sign, acrylic letter and light box. There are 3 ready models for your selecting. Special model can be customized according to clients exact demand.

   Please kindly contact us by e-mail, or skype or WhatsApp or telephone so that we can provide professional guide and save your valued time.

                                                                                                                         Thank you!

Picture show:

  Specification:

Application:

1.The machine is mainly used to make Acrylic Signs, Acrylic Letters, and Acrylic Light Box.

2.Applicable material including but not limited to Acrylic, ABS, PVC etc.

3.It is a useful and necessary and high efficiency equipment for Outdoor and Indoor Advertising making shop.

Samples as below:

Technical Feature:

1. It is a high integrated equipment with funciton of heating and softening, vacuum forming, blowing forming and compress forming.

2. Strong hydraulic lift system provide the machine with enough working pressure.

3. The machine is equipped with  Gear Rack And Pinion system at each side, 2sets totally.

4. The machine is equipped with Control Panel and Hand Controller, both of them can control the machine. With the mobile Hand Controller, the working process can be observed in 360 degree full view by the user. Especially for the machine with vacuum forming and blowing forming function, the mobile hand controller is more useful. Take blowing forming for example, when you press down the "blow" button on the control panel, the gas flew can not be controlled according to actual forming status. But if you control by hand controller, when you press the "blow" button on it, the gas come out. When you find the product is finished properly, just need to release the button and gas will stop.

5. The heating oven is divided by 2 separate parts, they can work together or individually according to the material size.

6. The oven door is controled by pneumatic system, save working time and prevent heating escaping efficiently.

7. High precision temperature control system, digital display and will alarm automatically.

8. Special full steel structure and double roof beams make sure longer working life and more steady operation.

9. Our machine is equipped with 2pcs exhaust fans at each side, 4pcs totally.

Furthermore, we designed exhaust heating holes at 3 sides (right side, left side and back of the machine).

They are useful to exhaust extra heat created during the acrylic sheet is heated.

If extra heat can not be exhausted in time, it will be transferred to the worktable, so slower workpiece cooling speed or result in defective workpiece.

10. Our machine is equipped with metal heating tubes.Comparing with quartz heating tube, they are more durable and longer lifespan.

11) We cover the oven bottom with asbestos sheet to prevent scratching acrylic sheet when you put it and put out of the oven. The asbestos sheet is high grade fire proof material with high temperature-resisting characteristics. Except our company, now most of other manufacturers don't use asbestos sheet any more so to save their cost.

Delivery Time:

10 days after receiving T/T 50% deposit.

Warranty and after sale service:

1.2 years warranty dating from buyer receiving the machine.

2.During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.

3.When warranty period is expired, if some part is broken or damaged, you can buy new from our company.

4.We provide you free cost technical supporting during the whole lifespan of the machines.
