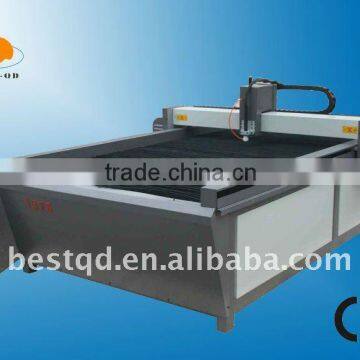

CNC Plasma Cutting Machine 1300x2500mm With Competitive Price

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao Tianjin Dalian Shanghai Ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	BEST
Model Number	BT-1325PH

Product Description

Specifications

>CNC Plasma Cutting Machine
>Competitive price
>Cutting thickness 0.5-12mm
>CE, ISO9001
>Manufacturer

Name: CNC Plasma Cutting Machine 1300x2500mm With Competitive Price

Application:

To cut metal sheet including aluminium sheet, iron sheet, galvanized sheet, titanium sheet etc.

Techincal Feature:

1.The bed lathe is welded with thick-wall cast steel tube, and is quenched before shipping to eliminate innerstress, so the machine is quite strong, stable,durable, nondeformable and high rigidity.

2. Gantry style structure, Y axis equipped with double stepper driven motors, more powerful.

3. X Y axis equipped with cylindrical guideway, driven by rack and gear, high precision and steady transmission.

3. Well softwares compatibility, such as Type3 / Artcam / Castmate / Ucancam V8 etc CAD/CAM software are all compatible.

4.Adopt Chinese plasma electrical source to cut 0.5-12mm thick metal sheet, which is economical and useful.

5. Also, Hypertherm electrical source and Cut master electrical source made in USA are optional according to clients requirement for thicker metal sheet.

Techincal Parameter:

Model No.	BT-1325PH
X, Y Working Area	1300x2500mm
Machine Structure	Gantry style, welded with thick-wall cast steel tube
X, Y, Z Guideway	Cylindrical guideway
X, Y, Z Transmission System	X, Y axis rack and pinion, gear drive. Z axis cylinder drive
X, Y, Z Drive System	Stepper Motor
Control System	NC Studio
Data Transfer	PCI Card
Program System and Softwares Compatibility	Ucancam V9 (Type 3, Artcam, Jingdiao, Mastercam are optional)
Working Dicate	G-code
Plasma Gnerator	Hyperthem made in USA
Cutting Thickness	0.4-15mm
Cutting Speed	0-8m/min adjustable
Working Mode	Untouched Arc Striking
Working Voltage	Plasma generator and vacuum pump need 3-phase AC380V/50-60Hz, other equipment need AC220V/50-60Hz
Weight	800kg
Packing Dimension	3090x1780x1350mm

Samples Cut By The Machine:

Packing:

Free-fumigation wooden case

Remark:

Please contact with us for working video ofthe machine.
