Home > Products > New Products > DFR-315 Full Hydraulic Small Rotary Pile Driver
DFR-315 Full Hydraulic Small Rotary Pile Driver
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
Used Blast Hole Drill Rig XY-100 Small Rotary Water Well Drilling Machine
-
Max Depth 200m XY-200F Bore Well Drilling Machine for Sale
-
15m Depth Hammer Pile Driver DFR-10W Used Screw Pile Driver Price
-
Bore Well Drilling Machine Price DFC-400 Truck Mounted Water Well Drilling Rig
-
Borehole Drilling Machine DFC-200 Used Truck Mounted Water Well Drilling Rig
-
Air Compressor for Drilling Rig DFQ-400 Used Borehole Drilling Machine for Sale
Product Details
| Condition | New | Piling Speed(m/min) | 20m/5min | |
| Place of Origin | Henan, China | Brand Name | DEFY | |
| Model Number | DFR-315 | Weight | 20 ton | |
| Dimension(L*W*H) | 9310*2400*3350 mm | Certification | BV,SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

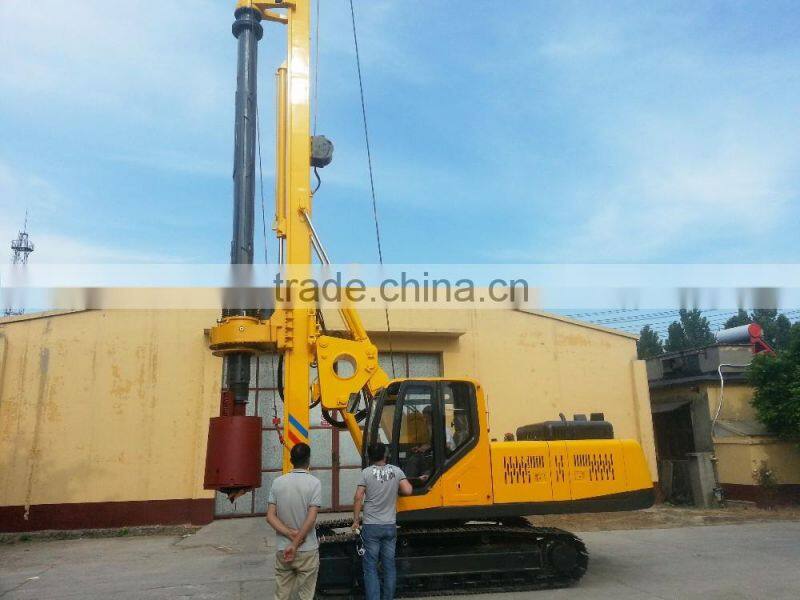

DFR-315 full hydraulic small rotary pile driver
DFR-315 small pile driver is designed by DEFY factory based on former DFR-12C. It is a kind of full hydraulic pile driver with rod locking design. More safe and convenient to use.
Structure | Item | DFR-315 |
Engine | Brand | Yu Chai |
Model | YC4A1152-T20 | |
Rated Power | 85KW/2200r/min | |
Type | Water-cooled, inline four-cylinder, turbocharged | |
Maximum torque | 425N.M/1400-1700r/min | |
Drilling diameter | mm | 500-1200 |
Drilling depth | m | 15 (three section lock lever) |
Hydraulic system | Maximum working pressure of the main pump | Kawasaki 25Mpa |
The maximum flow rate of the main pump | Kawasaki 63*2 | |
Power head | Maximum torque | 32KN.M(DEFY Made) |
Rotating speed | 6-35 | |
High-speed rejection soil | 60rpm | |
Pressurization system | Maximum pressure force | 100KN |
Maximum lifting force | 100KN | |
Maximum stroke | 2500mm | |
Main winch | Maximum lifting force | 100KN/m |
Maximum lifting speed | 45m/min | |
Auxiliary winch | Maximum lifting force | 20KN/m |
Maximum lifting speed | 50m/min | |
Mast | Inclination (left and right) | ±4° |
Inclination (Front and back) | 5° | |
Chassis | Maximum travel speed | 2.8km/h |
Maximum gradeability | 30° | |
Track width | 600mm | |
Telescopic Crawler | Optional | |
Chassis length | 3600mm | |
Total Weight | Ton | 20 |
Transportation dimension | L*W*H | 9310*2400*3350 mm |
Working dimension | L*W*H | 5800*2400*10700 mm |
1. Advanced mobile type, quick to transfer from transportation to working mode.
2. High safety standard, satisfying dynamic and static stability requirements, ensuring safe working.
3. Optimized luffing mechanism, working stable, easy to maintenance.
4. Innovative drilling bucket depth measurement system, showing a higher accuracy than conventional pile driver.
5. Bottoming protection and priority control function of main winch, making it easier to operate.
6. Multi-stage of vibration-proof power head, ensuring it working more stable.
7. Mast can adjust vertical property automatically, making it to drill more precise.
8. Humanized cabin design, with large space.
9. Secondary operating interface, more convenient using.
10. Efficient energy-saving turbocharged water-cooled diesel engine.
11. Excellent fuel system
12. Advanced cooling system
13. Intelligent Control System
