50m,100m,150m,200m Small Portable Bore Well Geotechnical Investigation Drill Rig
- Qingdao or as request
- T/T Credit Card
You May Like
-
High Efficiency Powerful Diesel Granite Drilling Rig for Borehole
-
Deep Mining Crawler Diesel Exploration Drilling Rig for Blasting DFY-100
-
100m Trailer Mounted Small Water Well Drilling Rig
-
2014 New Design Powerful 28m Hydraulic Static Pile Driver
-
2014 New Design Powerful 28m Spiral Piling Machine
-
Durable 26m Crawler Type Long Spiral Pile Drilling Machine
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | XY-100 | |
| Usage | Other, water well,soil sampling | Power(W) | 11kw | |
| Dimension(L*W*H) | 2000mm*900mm*1400mm | Weight | 520 not include power | |
| Certification | BV,SGS certificate | Warranty | one year,excluding wearing parts | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

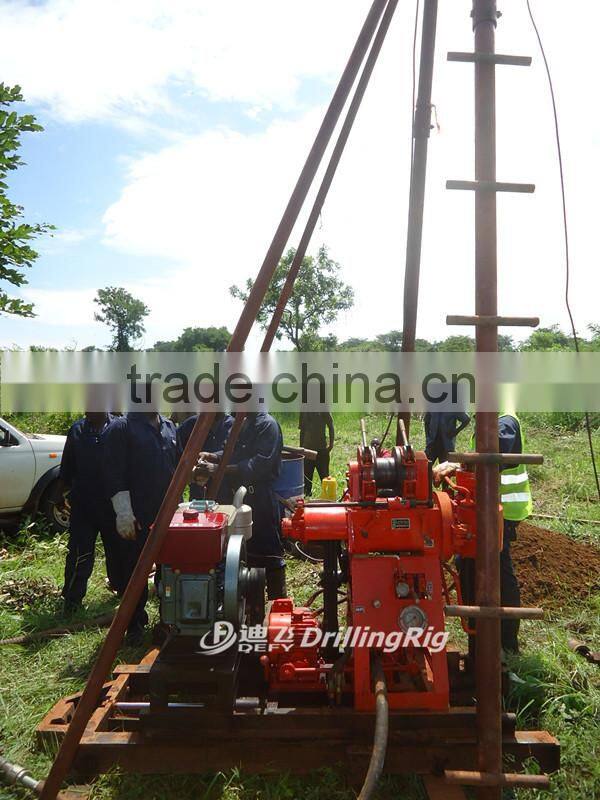

50m,100m,150m,200m small portable bore well geotechnical investigation drill rig
1. Introduction
XY-100 drilling rig is a new-type, portable engineering drilling machine for multiple applications.
- Geological prospecting;
- Foundation holes of small buildings;
- Drilling of water wells;
- Core sample,soil investigation etc
2. Characteristics
1. Diesel engine driven, convenient for outdoor working.
2. Two or four wheels mobile base can be on tractors, trailers or cars,mobile.
3. Hydraulic controlling system ensures automatic up and down of the hoist and drill rod. time and labor saving.
4. alloy bit and diamond bit are equipped for different stratums, such as soil, sand, soft rock, stone etc.
5.Supply you all the accessories for drilling work,you can start work directly as soon as receive goods.
3. Specifications
1.Overall parameters | |
Drilling depth | 100m |
Maximum open hole caliber | 300mm |
End hole caliber | 75mm |
Diameter of drill rod | 50mm |
Drilling angle | 90~75 |
Weight(not include power) | 520kg |
Dimension | 2000*900*1400mm |
2. Vertical shaft |
|
Rotating speed | 142, 285, 570 r/min |
Feeding stroke | 450mm |
3.Hoist |
|
Max. single line hoisting capacity | 1600Kg |
Diameter of wire rope | 11mm |
Volume of winding drum | 27 m |
Hug floodgate caliber | 230mm |
Hug floodgate belt width | 50mm |
4.Mud pump |
|
Type | Horizontal single urn twin-action |
Rate of flow | 95/77L/min |
MAX. pressure | 1.2MPa |
Working pressure | 0.7MPa |
Diameter of water inlet tube | 42mm |
Diameter of water outlet tube | 32mm |
5.Power |
|
Diesel engine | 18HP, 2000r/min |
Electrical motor | 11KW, 1460r/min |
Model | Drilling caliber | Max. drilling depth |
XY-100 | 300mm~75mm | 100m |
XY-130 | 300mm~75mm | 130m |
XY-150 | 400mm~75mm | 150m |
XY-180 | 400mm~75mm | 180m |
XY-200 | 400mm~75mm | 200m |
1.Professional techinical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and soloved in 24 hours.
3.Machine can be customized as per your requirement.
Remark: Zhengzhou DEFY offers different capacity 100m,200m,300m,400m,600m borehole drilling rig with trailer,tractor,crawler,truck chassis, if you are interested in, please kindly contact the following sales:
