100m Trailer Mounted Small Water Well Drilling Rig
- Qingdao Shanghai Lianyungang
- T/T Credit Card
You May Like
-
2014 New Design Powerful 28m Hydraulic Static Pile Driver
-
2014 New Design Powerful 28m Spiral Piling Machine
-
Durable 26m Crawler Type Long Spiral Pile Drilling Machine
-
Durable 26m Crawler Type Screw Concrete Piling Machine
-
Durable 20m Screw Bore Pile Machine
-
Foundation Construction Long Screw Pile Driving Machine
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | XY-100 | |
| Usage | Other, diamond mining drilling machine | Voltage | 380V | |
| Power(W) | 18HP | Dimension(L*W*H) | 2000mm*900mm*1400mm | |
| Weight | 520kg | Certification | BV,SGS | |
| Warranty | 1Y | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

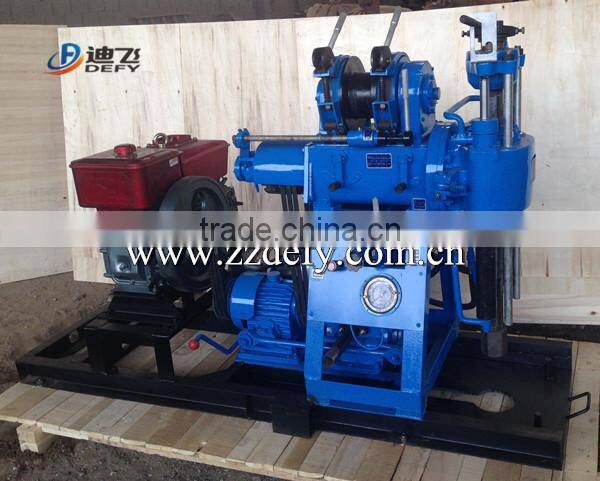

XY-100 trailer mounted small water well drilling rig
Introduction:
XY-100 small water well drilling rig is a portable type drilling rig with hydraulic controlling system, wheels mobile base and large improved vertical shaft gears. It has been serving customers from Kenya, Chili, Tanzania, Mexico, France, etc.
Specification of XY-100 drilling rig:
1. Overall parameters | |
Drilling depth | 100m |
Maximum open hole caliber | 300mm |
End hole caliber | 75mm |
Diameter of drill rod | 42mm |
Drilling angle | 90~75 |
2. Vertical shaft |
|
Rotating speed | 142, 285, 570 r/min |
Feeding stroke | 450mm |
3. Hoist |
|
Max. single line hoisting capacity | 1600Kg |
Diameter of wire rope | 11mm |
4. Mud pump |
|
Type | Horizontal single urn twin-action |
Rate of flow | 95/77L/min |
5. Power |
|
Diesel engine | 18HP, 2000r/min |
Electrical motor | 11KW, 1460r/min |
Applications:
1. Geological prospecting; 2. Foundation holes; 3. Drilling of water wells; 4. other projects.
Structure Design:
1. Power can be electric motor or diesel engine as options.
2. Two or four wheels mobile base can be on tractors, trailers or cars. Very convenient for outdoor and rugged place.
3. Hydraulic controlling systemensures automatic up and down of the hoist and drill rod. Very convenient and time-saving.
4. Three wing bit, alloy bit and diamond bit are equipped for different stratums, such as soil, sand, soft rock, hard rock, etc.
5. Easy to assemble and dissemble. One person is able to carry and operate it.
Other models for choice:
Model | Drilling caliber | Max. drilling depth |
XY-100 | 300mm~75mm | 100m |
XY-130 | 300mm~75mm | 130m |
XY-150 | 400mm~75mm | 150m |
XY-180 | 400mm~75mm | 180m |
XY-200 | 400mm~75mm | 200m |

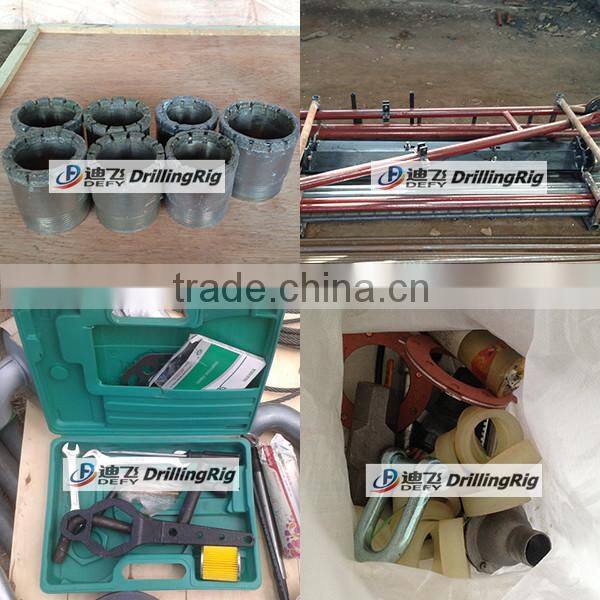

Spare parts:
Company certificates:
Remarks:
We offer complete set of drilling machine and accessories to ensure direct use after receiving cargo. Our engineer will give you the most professional advice on your detail project drilling data, such as diameter and depth. Pls send me inquiry kindly if you have interest in our core drilling rig. ^_^
Contact Person: Lucile
Tel: 0086-371-55819257
Fax: 0086-371-66770722
Mail: lucile ( at )
Mobile & Whatsup: 0086-18135686181
Skype: defy007
Facebook: lucileliu1
