80tons Ground Marshalling Shunting Winch for Dispatching
- lianyungang
- T/T Credit Card
You May Like
-
JDM Series Electric Hydraulic Traction Machine
-
800KN Hot Sale Traction Winch for Train Station
-
Traction Scheduling Winch for Loading and Unloading Goods
-
JDM Towing Winch/anchor Winch Used in Coal Mine and Construction
-
Two Friction Wheels 25 Ton Mining Shunting Windlass Manufacturer
-
High Quality 30 Ton Electric Shunting Winch Used for Mine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wells | |
| Model Number | 4JDM-80 | Power Source | Electric | |
| Application | Other, mining equipment | Capacity | 800KN |
Product Description

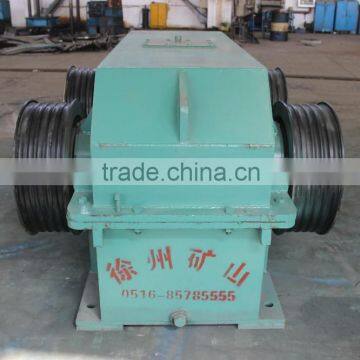

80tons ground shunting winch,marshalling winch for ground loading
| model | JC-140 JDM-14 | 2JDM-20 | 4JDM-20 | 2JDM-25 | 4JDM-25 | 2JDM-30 | 4JDM-30 | 2JDM-40 | 4JDM-40 | 2JDM-50 | 4JDM-60 | 4JDM-80 |
| Wire rope static tension KN | 140 | 200 | 200 | 250 | 250 | 300 | 300 | 400 | 400 | 500 | 600 | 800 |
| rope diameter mm | 26 | 32 | 32 | 36 | 36 | 40 | 40 | 42 | 42 | 44 | 46 | 52 |
| drum diameter mm | 525 | 600 | 570 | 660 | 570 | 750 | 680 | 960 | 680 | 960 | 1250 | 1250 |
| drun no. | 1 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 2 |
| motot power Kw | 22 | 30 | 30 | 40/55 | 37 | 47/67 | 47/67 | 90 | 60/90 | 110 | 160 | 185 |
| moter rapid speed r/min | 730 | 980 | 750 | 750/1500 | 750 | 750/1500 | 750/1500 | 750 | 750/1500 | 750 | 740 | 740 |
| weight Kg | 2580 | 5380 | 6280 | 5830 | 6660 | 6930 | 9200 | 8556 | 10300 | 8750 | 26000 | 28000 |
JDM dispatching winch system is mainly applied in coal mine, coal washery,electric power plant,cement plant, it can dispatch carts on the ground, especially for loading and unloading coal in a railway bunker.

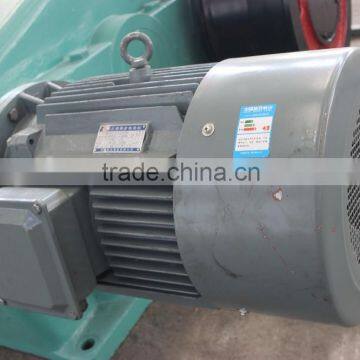

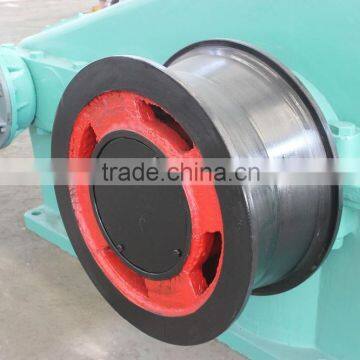

The system consists of motor, coupling, reducer, motor frame, frame wheel, heavy punch stand (
including heavy punch, pulley, tractor,holding rope wheel set, guiding wheel set, pressing rope wheel set etc.), which running with steel rope.
Features:
1. Dispatching can use one way of tracking by tractor installed in the center of the whole system, or the other way of branch rope linking up traction.
2. Tracking methods have 2 ways as terminal and pass over , the pass over way needs underground chamber for placing the tractor.
3. Motor adopted normal single speed motor or variable pole and speed motor.
Xuzhou Mine Equipment Manufacturing Co., Ltd. comes from XCMG Mining Equipment Factory, founded in 1956, which belongs to National Machinery Department. Since 2001, it reformed as a private owned enterprise, our factory located at the foot of JIULI mountain, where has been always treated not only as a crucial transportation junction, but also a business center.
As a leading manufacturer of mining equipment in China, we have been devoted to creating new and quality products in mining field for more than 50 years. The factory site covers around 100,000 square meters, with registered capital of US$ 5 million and more than US$ 36 million permanent assets,having more than 300 workers, including 50 engineering technicians,owning 180 sets of machining equipment totally, including various kinds of high-end, huge, rare inspection devices, and with complete supplying and service system. Our sales network has been expanded to all the mining group in every province, city and autonomous region. Also exported to Vietnam, Russia, Bengal, India, Malaysia, Mongolia etc. The sales turn over has successfully reached US$ 30 million.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Any inquiry,pls feel free to contact us!
