20 Ton Rail Train Shunting Winch
- any ports
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wells | |
| Model Number | 4JDM-20 | Power Source | Hydraulic | |
| Application | Other, mining equipment | Capacity | 5~650KN |
Product Description
20 ton rail train shunting winch
20 ton rail train shunting winch
JDM dispatching winch system

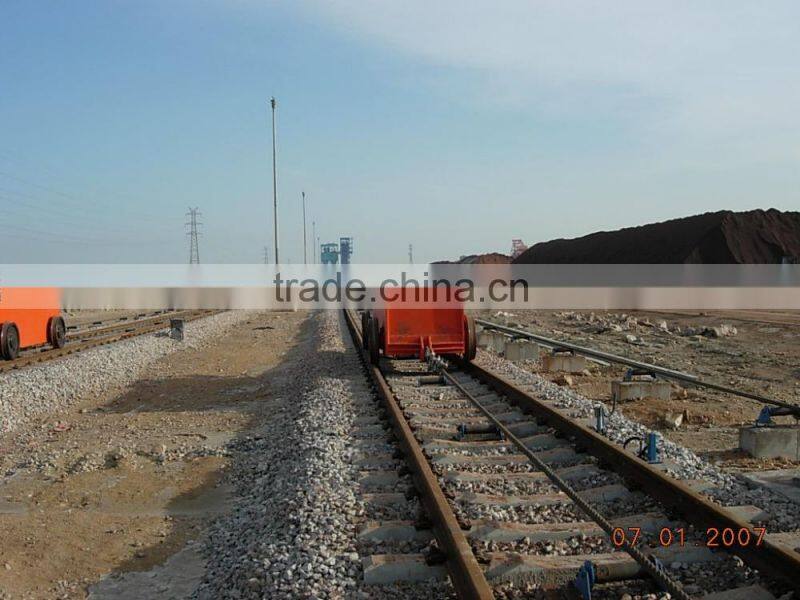

JDM dispatching winch system is mainly applied in coal mine, coal washery,electric power plant,cement plant, it can dispatch carts on the ground, especially for loading and unloading coal in a railway bunker.

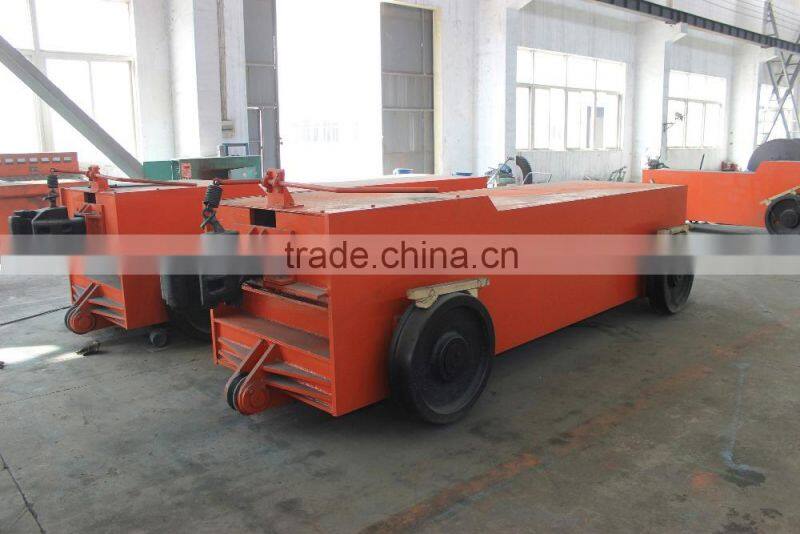

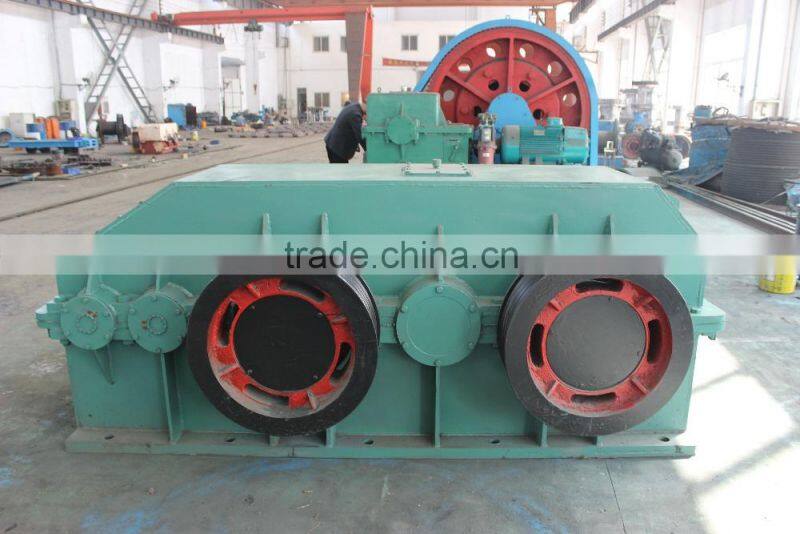

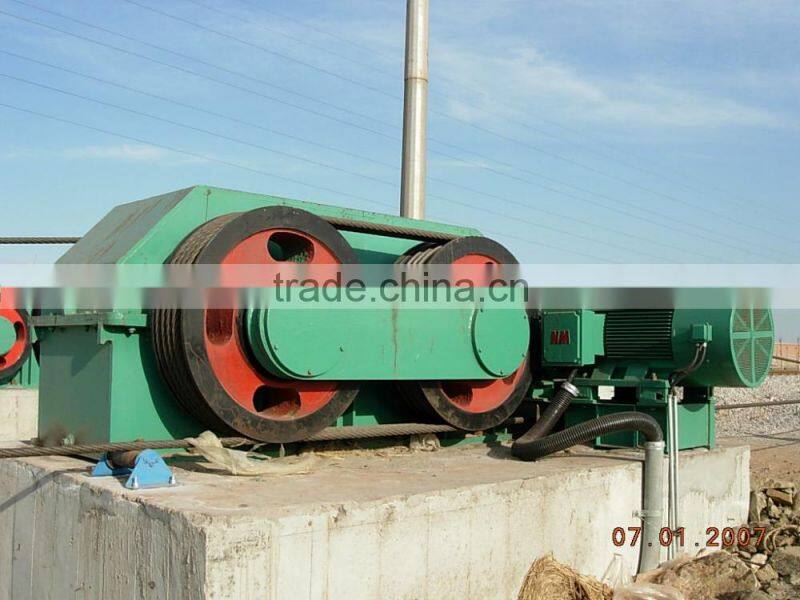

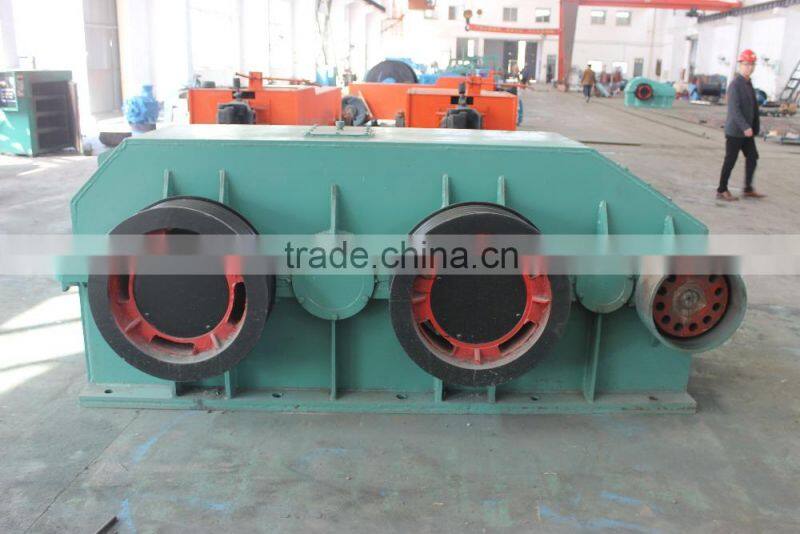

The system consists of motor, coupling, reducer, motor frame, frame wheel, heavy punch stand (including heavy punch, pulley, tractor,holding rope wheel set, guiding wheel set, pressing rope wheel set etc.), which running with steel rope.
Features:
1. Dispatching can use one way of tracking by tractor installed in the center of the whole system, or the other way of branch rope linking up traction.
2. Tracking methods have 2 ways as terminal and pass over , the pass over way needs underground chamber for placing the tractor.
3. Motor adopted normal single speed motor or variable pole and speed motor.
Product category and telechinal parameter:
rail train shunting winch | ||||||||||||
Model | JDM-14 | 2JDM-20 | 4JDM-20 | 2JDM-25 | 4JDM-25 | 2JDM-30 | 4JDM-30 | 2JDM-40 | 4JDM-40 | 2JDM-50 | 4JDM-60 | 4JDM-80 |
| Wire rope static tension KN | 140 | 200 | 200 | 250 | 250 | 300 | 300 | 400 | 400 | 500 | 600 | 800 |
| Rope working speed m/s | 0.12 | 0.15 | 0.15 | 0.15 | 0.15 | 0.16 | 0.15 | 0.016-0.16 | 0.15 | 0.016-0.16 | 0.022-0.38 | 0.022-0.22 |
| Rope bake speed m/s | 0.12 | 0.15 | 0.15 | 0.30 | 0.15 | 0.32 | 0.3 | 0.16-0.32 | 0.3 | 0.16-0.32 | 0.22-0.35 | 0.22-0.35 |
| Wire rope diameter mm | 26 | 32 | 32 | 36 | 36 | 40 | 40 | 42 | 42 | 44 | 46 | 52 |
| Friction wheel diameter mm | 525 | 600 | 570 | 660 | 570 | 750 | 680 | 960 | 680 | 960 | 1250 | 1250 |
| Friction wheel quantity | 1 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 4 |
| Motor power Kw | 22 | 30 | 30 | 40/55 | 37 | 47/67 | 47/67 | 90(FC) | 60/90 | 110(FC) | 160(FC) | 185(FC) |
| Motor speed r/min | 730 | 980 | 750 | 750/1500 | 750 | 750/1500 | 750/1500 | 750 | 750/1500 | 750 | 740 | 740 |
| Winch length mm | 2658 | 2235 | 2590 | 2295 | 2610 | 2470 | 3060 | 2700 | 3160 | 2700 | 3980 | 3980 |
| Winch width mm | 984 | 1980 | 2200 | 2380 | 2280 | 2680 | 2490 | 2970 | 2780 | 3050 | 3660 | 3960 |
| Winch heigth mm | 983 | 1300 | 1030 | 1300 | 1030 | 1360 | 1230 | 1360 | 1230 | 1360 | 1640 | 1640 |
| Weight kg | 2580 | 5380 | 6280 | 5830 | 6660 | 6930 | 9200 | 8556 | 10300 | 8750 | 26000 | 28000 |
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
We insist on offering high quality products, comprehensive service to obtain our customer’s trustand support. Welcome to Xuzhou mine equipment manufacturer co.,ltd.
Our Packaging: Standard Wooden case, or as customer required.
1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
