Explosion-proof Motor 1140V Electric Winch
- any port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wells | |
| Model Number | JD-1.6A | Power Source | Hydraulic | |
| Application | Other, Mining equipment | Capacity | 5~650KN |
Product Description

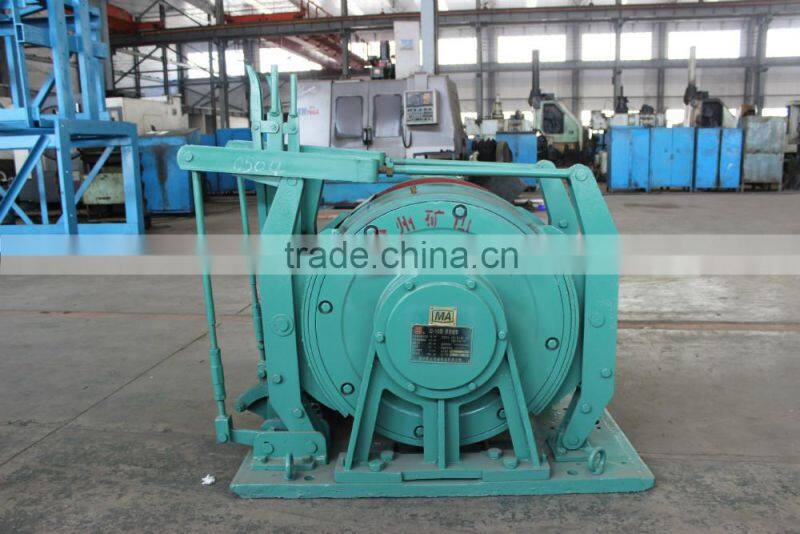

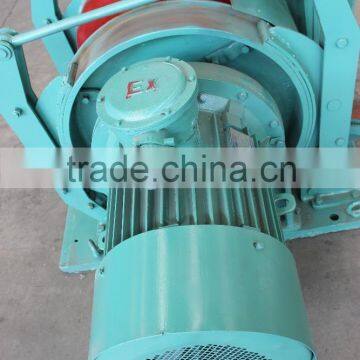

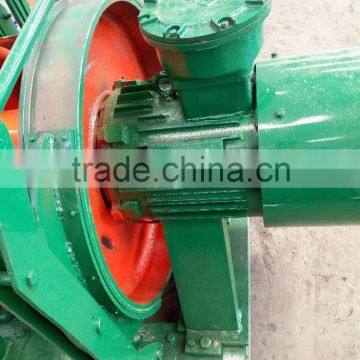

explosion-proof motor 1140V electric winch
explosion-proof motor 1140V electric winch
1.JD series dispatching winch mainly applied in mine underground roadway to dispatch carts or other assistant transmission works, also can be used in surface ground, Metallurgical mines, construction site, etc.
2.JD series dispatching winch consist of two-stage planetary transmission system, drum, brake, hydraulic push rod, base, cover etc.
3.Feature: compact structure, good rigidity, high efficiency, convenient installment, start smoothly, flexible operation, stable brake, reliable brake system, low noise
4.JD-1.6A, JD-2.5C have been added in electric & hydraulic pushing device as safety arrestment braking system surface ground or underground inclined roadways and small scale shaft to lift materials.
Product category and telechinal parameter:
| explosion-proof motor 1140V electric winch | ||||||||
| Model | JD-1 | JD-1.6 | JD-1.6A | JD-2 | JD-2.5 | JD-2.5C | JD-3 | JD-4 |
| Wire rope outer maximum static tension KN | 10 | 16 | 16 | 20 | 25 | 25 | 30 | 40 |
| Wire ropr outer speed m/s | 1.00 | 1.20 | 1.20 | 1.20 | 1.25 | 1.25 | 1.25 | 1.25 |
| Roller diameter mm | 225 | 300 | 300 | 300 | 620 | 620 | 620 | 580 |
| Roller width mm | 303 | 356 | 356 | 356 | 580 | 580 | 580 | 600 |
| Wire capacity m | 400 | 400 | 400 | 400 | 650 | 650 | 650 | 650 |
| Wire rope diameter mm | 12 | 16 | 16 | 16 | 20 | 20 | 20 | 22 |
| Motor power Kw | 11.4 | 25 | 25 | 30 | 40 | 40 | 45 | 55 |
| Motor speed r/min | 1460 | 1470 | 1470 | 1470 | 1470 | 1470 | 1480 | 990 |
| Electro-hydraulic thrusters | / | / | BYT90/8 | / | / | BYT125/10 | / | BYT180/12 |
Dimension length mm | 1100 | 1345 | 1345 | 1500 | 1900 | 1900 | 2080 | 2650 |
| width mm | 765 | 1140 | 1525 | 1200 | 2350 | 2550 | 2350 | 1965 |
| height mm | 730 | 1190 | 1190 | 1190 | 1370 | 1370 | 1370 | 1425 |
| Winch weight kg | 550 | 1460 | 1525 | 1558 | 2800 | 2950 | 2850 | 3650 |
Xuzhou Mine Equipment Manufacturing Co.,Ltd founded in 1956. As a leader of mining equipment manufacture in China,we have been devoted to creating new and high quality products in mining field for more than 50 years.
Our main products including SQ and JWB endless rope continuous tractor, JSDB series double speed multi-purpose winch, JYB series transport winch, JD series shunting winch, JH series prop-pulling winch, JHMB series slow speed drawing winch, and JZ series sinking winch and etc.
Our sales network is not only in domestic, but also exported to foreign for many years.
We insist on offering high quality products, comprehensive service to obtain our customer’s trust and support. Welcome to Xuzhou mine equipment manufacturer co.,ltd.
Our packaging: The standard wooden case or as custmers required.

1. One year warranty for whole machines
2. Low charge for continue maintenance when warranty is expired
3. Exclusive engineer support at any time
Why choose your company?
1. We are the professional maufacturer since 1956,one of biggest supplier in China.
2. We supply high quality products with reasonable price.
3.We have professional sales team.
4.Experienced exporting for all over the world.
5.We provide good after-sales sevice.
Any inquiry,pls feel free to contact us!
