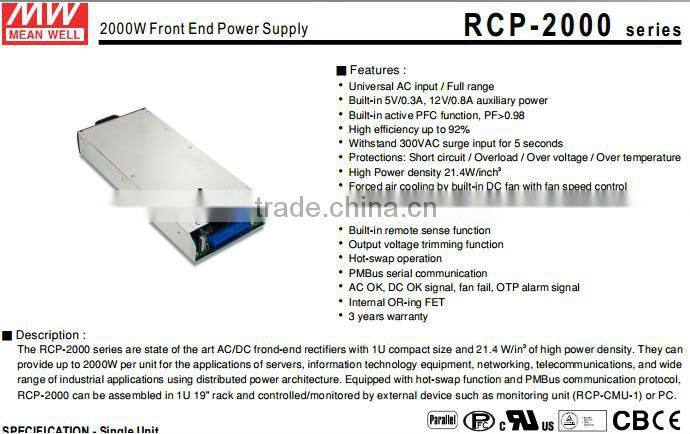

Mean Well 2000w 12v Single Output Power Supplies/ 2000W Front End Power System/2000w Power Supply With Auxiliary Power

MODEL

RCP-2000-12

OUTPUT

DC  VOLTAGE

12V

RATED CURRENT

100A

CURRENT  RANGE

0 ~ 100A

RATED POWER

1200W

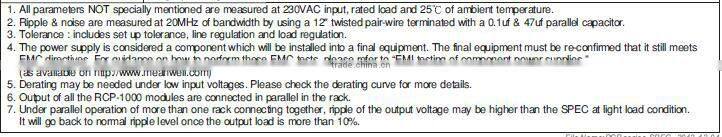

RIPPLE&NOISE (max.)   Note.2

150mVp-p

VOLTAGE ADJ. RANGE

10.5~ 14V

VOLTAGE TOLERANCE Note.3

±2.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±1.0%

SETUP, RISE TIME

1500ms, 60ms / 230VAC   at full load

HOLD UP TIME (Typ.

16ms/230VAC at 75% load 10ms/230VAC at full load

 INPUT

VOLTAGE RANGE

90 ~ 264VAC          127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

86%

AC CURRENT (Typ.)

13A/115VAC    7A/230VAC

INRUSH CURRENT (Typ.)

COLD START  50A

LEAKAGE CURRENT

<1.1mA / 230VAC

PROTECTION

OVER LOAD

105 ~ 125% rated output power

Protection type : Constant current limiting, unit will shut down after

3 sec. re-power on to recover

OVER TEMPERATURE

85°C± 5°C (TSW:detect on heatsink of power transistor )  85°C± 5°C

(TSW2) detect on heatsink of power diode

Protection type : Shut down o/p voltage, re-power on to recover after

temperature goes down

OVER VOLTAGE

14.7~ 17.5V

Protection type : Shut down o/p voltage, re-power on to recover

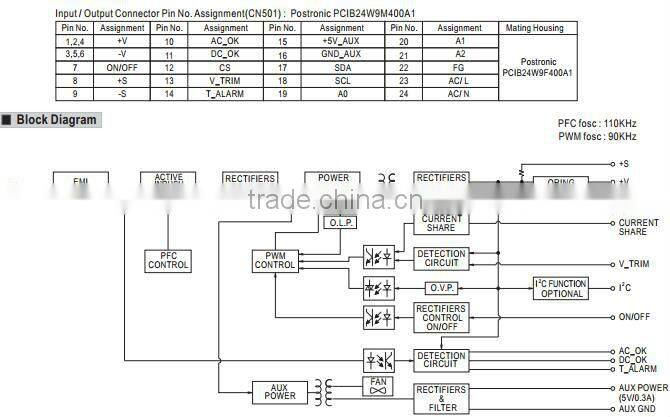

FUNCTION

AUXILIARY POWER

5V @ 0.3A 12V @ 0.8A

REMOTE ON/OFF CONTROL

By electrical signal or dry contact     ON:short     OFF:open

DC OK SIGNAL

The TTL signal out, refer to function manual

AC FAIL SIGNAL

The TTL signal out, refer to function manual

OUTPUT VOLTAGE TRIM

Adjustment of output voltage, possible between 90 ~ 110% of rated output

OVER TEMP WARNING

Logic " High" for over temperature warning, refer to function manual

ENVIRONMENT

WORKING TEMP.

-40~+70°C (Refer to derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY &

EMC

SAFETY STANDARDS

UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC    I/P-FG:2KVAC O/P-FG:0.7KVAC

EMC EMISSION

Compliance to EN55022 (CISPR22) Conduction Class B, Radiation Class A ;

EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61000-6-2(EN50082)heavy industry level, criteria A

ISOLATION  RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

OTHERS

MTBF

60.1K hrs min. MIL-HDBK-217F (25 )

DIMENSION

295*127*41mm (L*W*H)

PACKING

2Kg; 6pcs/13Kg/1.04CUFT
