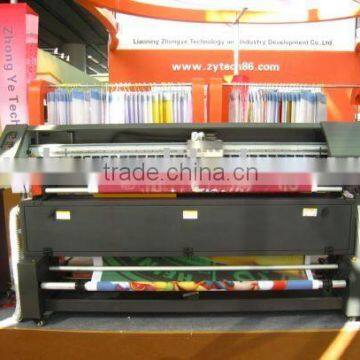

textile printer fabric printer 1.80meter

Printhead

mirco piezo dot-on-demand print head:2×Epson DX5 printheads (paratactic structure)

4 color : C M Y K

Height adjustable range:2-5mm

Resolution(Max)

1440dpi

Printing width(Max)

1.8m

Printing speed

Draft model:540*720dpi 50 sq. m./h

Production model: 720*720dpi 26 sq. m./h

High quality model: 720*1440dpi 14 sq. m./h

Heating system

Front, middle ,back three sections heating system ,PID temperature controller

Adjustable range: room temperature~80

Drying system

Outer fan

Media

Max width:1.8m

Media handling system: Auto media feeding, manual media releasing,Built-in variable adsorption

Media type: Adhesive Vinyl, PVC, Mesh, Textile, Banner, Eco solvent inkjet

paper etc`

Inks

ECO-Solvent Pigment Inks

ECO-Solvent Dye Sublimation Inks

ECO-Solvent Dye Inks

Ink Cartridge: 350 ml, 16 pieces

RIP

iPrint 3.0 Professional Bi-language RIP(Chinese & English)

From: Tiff, Jpeg etc

PostScript file interpreter (optional)

Driver

Professional bi-language software (Chinese & English)

Interface

USB 2.0, RS 232

Working system

Windows XP

Input power

AC 220-240v 50/60 HZ

Working environment

1000W (max. power) 300W (nomal working power)

Temperature:20-25

Humidity: 40-70%,non condensation

Physical specifications

Printer dimension:(L*W*H):2.84*0.9*1.25m(with stand)

Packing dimension:(L*W*H):3*0.93*0.73m(with stand)

Net weight: 160 KG(with stand)

Gross weight: 240 KG(with stand)
