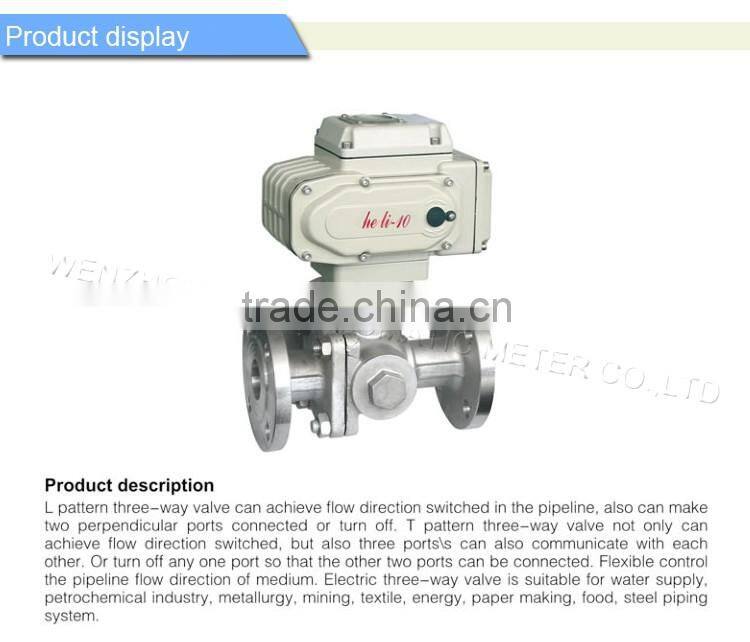

Flange Ball Valve With Electric Actuator
- Ningbo Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Model Number | HL-05 | |
| Brand Name | Heli |
Product Description
Product Details:
| Standard or Nonstandard | Standard |
|---|---|
| Structure | Ball |
| Pressure | Medium Pressure |
| Power | Electromotion |
| Material | Stainless Steel |
| Temperature of Media | Medium Temperature |
| Media | Water |
| Port Size | 10NM/15Nm/30Nm/50Nm |
| Place of Origin | Zhejiang, China (Mainland) |
| Model Number | HL-05 |
| Brand Name | HELI |
| Certification | CQC,CE,ISO9001:2000 |
Model
| HL-05 | ||||||||
Power | DC12V | DC24V | DC220V | AC24V | AC110V | AC220V | AC380V | ||
Motor power | 10W,20W | ||||||||
Rated current | 3.8A | 2A | 0.21A | 2.2A | 0.48A | 0.24A | 0.15A | ||
Output torque | 30Nm/50Nm | 10NM/15Nm/30Nm/50Nm | |||||||
Action time | 6S/10S | 6S/10S/20S/30S | |||||||

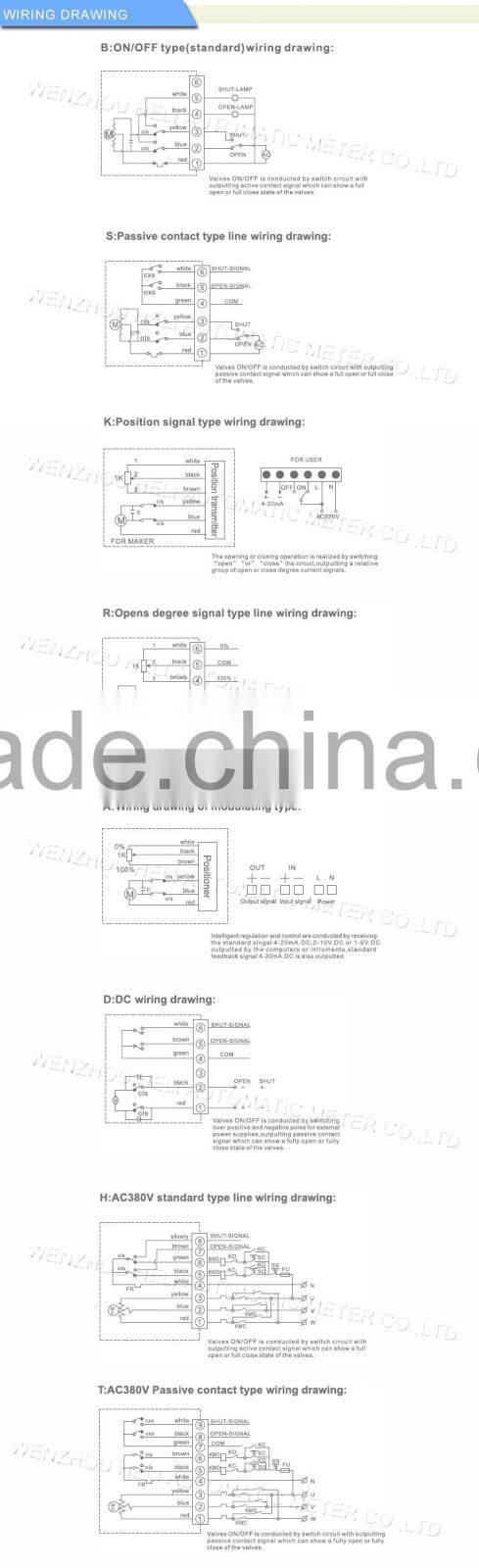

Circuit control | B,S,R,H,A,K,D,T | ||||||||
Rotary angle | 0-90° | ||||||||
Weight | 2.2Kg | ||||||||
Voltage-with standing value | 500VAC/1min | 1500VAC/1min | |||||||
Insulated resistance | 100MΩ/300VDC | 100MΩ/500VDC | |||||||
Protection class | IP67 | ||||||||
Surrounding Temperature | -25°C~60°C(The other temperature can be customized) | ||||||||
Installation angle | Any angle | ||||||||
Case material | Aluminium die-casting components | ||||||||
Optional function | Overload protection, heater | ||||||||
