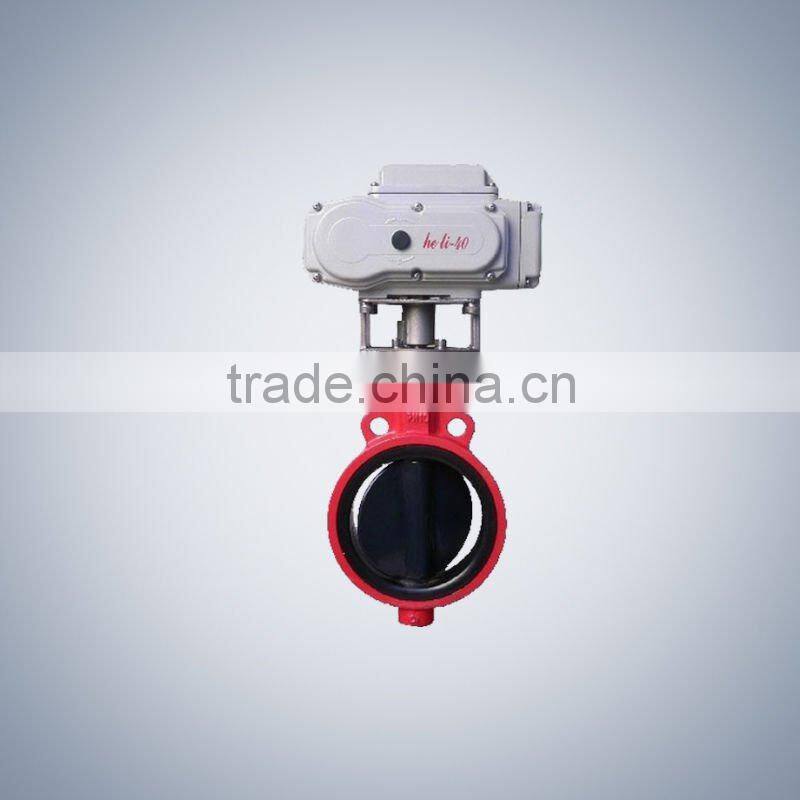

High Performance Motorized Butterfly Valve With CE
US$ 150 - 300
/ Set
10 Sets(Min. Order)
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Low Pressure | Power | Other, Electromotion | |
| Material | Other, WCB | Temperature of Media | Normal Temperature | |
| Media | Gas | Place of Origin | China | |
| Model Number | HL-10 | Brand Name | HELI |
Product Description
Model
| HL-10 | |||||||
Power | DC12V | DC24V | DC220V | AC24V | AC110V | AC220V | AC380V | |
Motor power | 40W,23W | |||||||
Rated current | 4.8A | 2.4A | 0.32A | 3A | 0.64A | 0.24A | 0.19A | |
Output torque | 100Nm | 50Nm/60Nm/100Nm | ||||||
Action time | 10S | 13S/15S/20S/30S | ||||||
Circuit control | B,S,R,H,A,K,D,T | |||||||
Rotary angle | 0-90° | |||||||
Weight | 4 Kg | |||||||
Voltage-with standing valve | 500VAC/1min | 1500VAC/1min | ||||||
Insulated resistance | 100MΩ/300VDC | 100MΩ/500VDC | ||||||
Protection class | IP67 | |||||||
Surrounding Temperature | -25°C~60°C(The other temperature can be customized) | |||||||
Installation angle | Any angle | |||||||
Case material | Aluminium die-casting components | |||||||
Optional function | Overload protection, heater | |||||||
