Tile magnetic motor magnets
US$ 0.01 - 10
/ Piece
500 Pieces(Min. Order)
- Shanghai Port Lianyungang Port Guangzhou Port
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HTMAGC | |
| Model Number | customized | Type | Permanent | |
| Composite | NdFeB Magnet | Shape | Other, tile | |
| Application | Moto Magnet |
Product Description
| Material | SY30 | SY31 | SY32 | SY34H | SY35H | SY39 | SY40H | SY40 | SY41 | SY41 | |
| mt | 380-400 3800-4000 | 380-400 3800-4000 | 390-410 3900-4100 | 360-380 3600-3800 | 420-440 4200-4400 | 360-380 3600-3800 | 390-410 3900-4100 | 400-420 4000-4200 | 410-430 4100-4300 | 420-440 4200-4400 | |
| Br | Gs | ||||||||||
| KA/m | 190-210 2375-2625 | 240-260 3000-3250 | 250-270 3125-3375 | 260-280 3250-3500 | 280-310 3500-3875 | 270-290 3375-3625 | 270-290 3375-3625 | 280-300 3500-3750 | 250-270 3150-3375 | 250-270 3215-3375 | |
| Hcb | Oe | ||||||||||
| Hcj | KJ/m | 200-220 2500-2750 | 350-370 3125-3375 | 260-280 3250-3500 | 320-350 4000-4375 | 310-330 3875-4125 | 350-380 4375-4750 | 310-330 3875-4125 | 310-330 3875-4125 | 260-280 3250-3500 | 260-280 3250-3500 |
| Oe | |||||||||||
| KJ/M | 28-30 3.5-3.7 | 28-30 3.5-3.7 | 29-30 3.6-3.8 | 25-27 3.1-3.3 | 32-35 4.0-4.4 | 26-28 3.2-3.5 | 30-32 3.7-4.0 | 31-33 3.8-4.1 | 32-34 4.0-4.2 | 35-37 4.4-4.6 | |
| (BH) | MGOe | ||||||||||
| max | |||||||||||

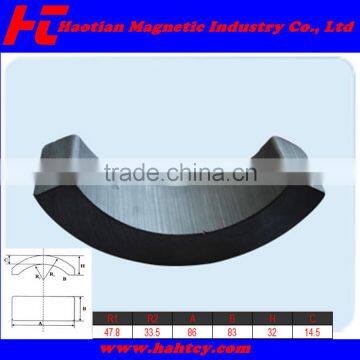

| P/N | R1 | R2 | A | B | H | C |
| 844-36 | 40.5 | 30.4 | 71 | 36 | 25.2 | 9.95 |
| 847 | 46.7 | 35.75 | 50 | 40 | 16.1 | 11 |
| 847-60 | 46.7 | 35.75 | 50 | 60 | 16.1 | 11 |
| 879 | 46.36 | 37.31 | 46.86 | 38.1 | 13.89 | 9.04 |
| 882 | 28.7 | 26 | 51.5 | 33 | 19.3 | 6.1 |
| 885 | 48.25 | 33.25 | 86 | 40 | 32 | 15 |
| 834 | 58 | 43 | 103.2 | 87 | 38 | 15 |
| 886 | 36 | 28 | 38 | 47 | 12.5 | 8 |
| 887 | 27.6 | 20.8 | 48 | 36 | 18.7 | 6.8 |
| 888 | 47.5 | 40.7 | 50 | 55 | 14 | 6.8 |
| 889 | 31 | 23.8 | 33 | 46 | 11 | 7.2 |
| 890 | 52.8 | 45.6 | 27 | 25 | 7.2 | |
| 897 | 38.86 | 29.36 | 69.6 | 38.3 | 26.5 | 9.5 |
| 899 | 38.35 | 27.45 | 67 | 60 | 26 | 10.9 |
| 900 | 24 | 17.6 | 58 | 41.5 | 15.5 | 6.3 |
| 901 | 54 | 39.5 | 56 | 110 | 20.5 | 14.5 |
| 902 | 28 | 22.6 | 53 | 50 | 20.5 | 6.9 |
| 903 | 35.8 | 27.2 | 63 | 70 | 24.1 | 8.6 |
| 904 | 28 | 22.6 | 53 | 40 | 20.5 | 6.9 |
| 905 | 22.5 | 16.6 | 33.5 | 43.5 | 12.7 | 6 |
