Home > Products > Ferrite Magnetic Tile > China Motor Arc Segment Magnet Factory

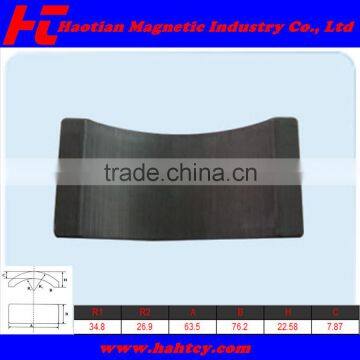

China Motor Arc Segment Magnet Factory
US$ 0.01 - 10
/ Piece
500 Pieces(Min. Order)
- Shanghai Port Lianyungang Port Guangzhou Port
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HTMAGC | |
| Model Number | customized | Type | Permanent | |
| Composite | NdFeB Magnet | Shape | Other, tile | |
| Application | Moto Magnet |
Product Description
| Material | SY30 | SY31 | SY32 | SY34H | SY35H | SY39 | SY40H | SY40 | SY41 | SY41 | |
| mt | 380-400 3800-4000 | 380-400 3800-4000 | 390-410 3900-4100 | 360-380 3600-3800 | 420-440 4200-4400 | 360-380 3600-3800 | 390-410 3900-4100 | 400-420 4000-4200 | 410-430 4100-4300 | 420-440 4200-4400 | |
| Br | Gs | ||||||||||
| KA/m | 190-210 2375-2625 | 240-260 3000-3250 | 250-270 3125-3375 | 260-280 3250-3500 | 280-310 3500-3875 | 270-290 3375-3625 | 270-290 3375-3625 | 280-300 3500-3750 | 250-270 3150-3375 | 250-270 3215-3375 | |
| Hcb | Oe | ||||||||||
| Hcj | KJ/m | 200-220 2500-2750 | 350-370 3125-3375 | 260-280 3250-3500 | 320-350 4000-4375 | 310-330 3875-4125 | 350-380 4375-4750 | 310-330 3875-4125 | 310-330 3875-4125 | 260-280 3250-3500 | 260-280 3250-3500 |
| Oe | |||||||||||
| KJ/M | 28-30 3.5-3.7 | 28-30 3.5-3.7 | 29-30 3.6-3.8 | 25-27 3.1-3.3 | 32-35 4.0-4.4 | 26-28 3.2-3.5 | 30-32 3.7-4.0 | 31-33 3.8-4.1 | 32-34 4.0-4.2 | 35-37 4.4-4.6 | |
| (BH) | MGOe | ||||||||||
| max | |||||||||||
| P/N | R1 | R2 | A | B | H | C |
| 928 | 20.17 | 15.3 | 35.5 | 42 | 13.3 | 4.35 |
| 929 | 35.7 | 27 | 64 | 35.3 | 25.3 | 8.7 |
| 930 | 35.87 | 28.2 | 70.4 | 67.5 | 29.72 | 7,67 |
| 931 | 36.5 | 27.6 | 37 | 58 | 13.3 | 8.9 |
| 932 | 46.5 | 33.1 | 82 | 85 | 32.6 | 13.5 |
| 933 | 46.5 | 33.1 | 82 | 105 | 32.6 | 13.5 |
| 934 | 72.8 | 52.9 | 131 | 43.15 | 49.53 | 19.95 |
| 935 | 33.8 | 24.6 | 59 | 38 | 23.5 | 9.2 |
| 936 | 56.975 | 48.25 | 41.7 | 40 | 11.5 | 8.73 |
| 937 | 53.06 | 36.27 | 99.5 | 81.15 | 38.81 | 16.8 |
| 938 | 56.975 | 48.25 | 41.7 | 27 | 11.5 | 8.73 |
| 939 | 50.57 | 39.17 | 92.13 | 45.6 | 32.45 | 11.4 |
| 940 | 50.57 | 39.17 | 92.13 | 56.83 | 32.45 | 11.4 |
| 941 | 36.27 | 28.77 | 66.2 | 50.8 | 24.5 | 7.57 |
| 942 | 37 | 26.7 | 66 | 60 | 26.5 | 10.2 |
| 943 | 35 | 26.8 | 66.3 | 38 | 25.5 | 8.12 |
| 944 | 20.17 | 15.3 | 35.5 | 30 | 13.3 | 4.35 |
| 945 | 20 | 36 | 20.03 | 41 | 6.8 | 6 |
| 946 | 92.5 | 74.5 | 43 | 28 | 28 | 18 |
| 947 | 33.8 | 24.6 | 59 | 50 | 23.5 | 9.2 |
| P/N | R1 | R2 | A | B | H | C |
| 948 | 46.81 | 38.76 | 52.37 | 91.44 | 13.48 | 8.05 |
| 949 | 17 | 22 | 18.8 | 49 | 6.4 | 5 |
| 950 | 48 | 40.75 | 50.5 | 35 | 12.8 | 7.5 |
| 951 | 58 | 43 | 103.2 | 110 | 38 | 15 |
| 952 | 39 | 31 | 65.9 | 114.3 | 22.4 | 7.9 |
| 953 | 51.1 | 41.1 | 52 | 72 | 15.5 | 10 |
| 954 | 56.5 | 48 | 61 | 45 | 15.5 | 8.5 |
| 955 | 37.6 | 29.7 | 65 | 45.1 | 24 | 7.9 |
| 956 | 52.8 | 46.3 | 54.5 | 35 | 14 | 6.5 |
| 957 | 36.1 | 28.5 | 71.5 | 108 | 30.1 | 7.6 |
| 958 | 38.7 | 26.7 | 67 | 90 | 28 | 12 |
| 959 | 38.1 | 30.12 | 44 | 29.97 | 16.47 | 13.2 |
| 960 | 44.45 | 32.33 | 56.14 | 115.6 | 16.27 | 12.1 |
| 961 | 23.62 | 18.03 | 44.96 | 57.15 | 17.27 | 5.59 |
| 962 | 28.4 | 18.11 | 52.32 | 63.5 | 21.34 | 10.29 |
| 963 | 50 | 40.5 | 60 | 64 | 17.5 | 9.5 |
| 964 | 46.8 | 38.76 | 52.37 | 45 | 13.48 | 8.05 |
| 965 | 33.8 | 24.6 | 59 | 31 | ||
| 966 | 47.85 | 36.75 | 58 | 42.96/87.63 | 20.53 | 15.54 |
| 967 | 40 | 33.5 | 18 | 20 | 6.5 | |
| P/N | R1 | R2 | A | B | H | C |
| 968 | 46.5 | 30.2 | 84.5 | 45 | 35 | 16.3 |
| 968-40 | 46.5 | 30.2 | 84.5 | 40 | 35 | 16.3 |
| 969 | 45.65 | 30.2 | 84.5 | 40 | 34 | 15.45 |
| 970 | 50 | 38 | 87 | 45 | ||
| 971 | 38.35 | 30.38 | 44 | 92.96 | ||
| 972 | 71.8 | 62.7 | 69.5 | 23 | 16.9 | 9.1 |
| 973 | 46.5 | 33 | 81 | 35 | 13.55 | |
| 974 | 24 | 17.2 | 40 | 40 | 15 | 6.8 |
| 975 | 54 | 39.5 | 95 | 100 | 38 | 14.5 |
| 976 | 42.75 | 33 | 83 | 100.4 | ||
| 977 | 39.9 | 30.4 | 72 | 63 | ||
| 978 | 53.25 | 35.9 | 97 | 45 | ||
| 979 | 36.37 | 36.37 | 66.8 | 71.1 | ||
| 980 | 36.37 | 26.8 | 66.8 | 57.9 | ||
| 981 | 29 | 19 | 34 | 25 | 14 | 10 |
| 982 | 22.54 | 17.01 | 34.4 | 50 | ||
| 983 | 46.5 | 33.1 | 82 | 42.5 | ||
| 984 | 45.65 | 30.2 | 84.5 | 65 | ||
| 985 | 31 | 24 | 57 | 46 |
