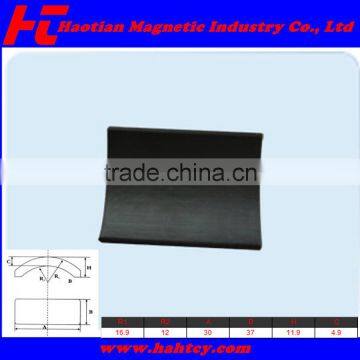

Y30BH ferrite magnets

FOB Price

US$ 0.01 - 10 / Piece

500 Pieces(Min. Order)

Port Shanghai Port Lianyungang Port Guangzhou Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	HTMAGC
Model Number	customized	Type	Permanent
Composite	NdFeB Magnet	Shape	Other, tile
Application	Moto Magnet

Product Description

Material		SY30	SY31	SY32	SY34H	SY35H	SY39	SY40H	SY40	SY41	SY41
	mt	380-400 3800-4000	380-400 3800-4000	390-410 3900-4100	360-380 3600-3800	420-440 4200-4400	360-380 3600-3800	390-410 3900-4100	400-420 4000-4200	410-430 4100-4300	420-440 4200-4400
Br	Gs

	KA/m	190-210 2375-2625	240-260 3000-3250	250-270 3125-3375	260-280 3250-3500	280-310 3500-3875	270-290 3375-3625	270-290 3375-3625	280-300 3500-3750	250-270 3150-3375	250-270 3215-3375
Hcb	Oe

Hcj	KJ/m	200-220 2500-2750	350-370 3125-3375	260-280 3250-3500	320-350 4000-4375	310-330 3875-4125	350-380 4375-4750	310-330 3875-4125	310-330 3875-4125	260-280 3250-3500	260-280 3250-3500
	Oe
	KJ/M	28-30 3.5-3.7	28-30 3.5-3.7	29-30 3.6-3.8	25-27 3.1-3.3	32-35 4.0-4.4	26-28 3.2-3.5	30-32 3.7-4.0	31-33 3.8-4.1	32-34 4.0-4.2	35-37 4.4-4.6
(BH)	MGOe
max

P/N	R1	R2	A	B	H	C
801	16.9	12	30	37	11.9	4.9
802	16.9	12	30	27	11.9	4.9
803	19.8	14.2	35.9	40	14.3	5.6
807	39	27	70	55	29.5	12
807-1	39	27	70	110	29.5	12
809-1	36	28.4	62	50	22	7.6
810	51.5	44.1	27	60	14.2	7.4
811	22	16.4	32	60	10.7	5.6
812-30	29	21.3	51.6	31	21.5	7.6
812-45	29	21.3	51.6	45	21.5	7.6
815	34.8	26.9	63.5	76.2	22.58	7.87
817	38.6	32.6	54.3	24	8.9	6
818	80	69.5	66	20		10.5
819-3	40.25	30	70	95	26.6	10.25
820	46.5	33	81	70	32.6	13.5
820-87	46.5	33	87	71	32.6	13.5
821-1	56.5	40.75	98	80	38	15.75
822	35.7	27	64	50	24.6	8.7
823	35.7	27	64	40	24.6	8.7
824	29	22.5	54	45	21	6.5
P/N	R1	R2	A	B	H	C
825	23.75	17.6	41.5	34	16.6	6.3
826	47.5	40.7	52	50	13	6.8
827-1	46.6	40.75	49.5	20	13	5.9
827-1-1	48	40.75	50	20	13	7.25
827-2	46.6	40.75	49.5	30	13	5.9
827-2-2	48	40.75	50	30	13	7.25
827-3	48	41.8	50	20	13	6.2
828-1	49	41.6	58.5	30	16	7.3
828-2	49	41.6	58.5	40	16	7.3
828-3	49	41.6	58.5	20	16	7.3
829-1	48	40.75	50	27	12.8	7.15
829-2	48	40.7	50	40	12.8	6.9
830-1	23.8	17.5	41.5	50	16	6.3
832	19.7	14.3	35	30		5.4
833	56.6	46.5	61	82
833-2	56.5	48	61	82
835-1	65.5	50.5	116	58	42	15
836-1	50	40.75	51	65	15.5	9.25
842-88	35.7	27	67	88	25.6	8.7
842-105	35.7	27	67	105	25.6	8.7
P/N	R1	R2	A	B	H	C
844-36	40.5	30.4	71	36	25.2	9.95
847	46.7	35.75	50	40	16.1	11
847-60	46.7	35.75	50	60	16.1	11
879	46.36	37.31	46.86	38.1	13.89	9.04
882	28.7	26	51.5	33	19.3	6.1
885	48.25	33.25	86	40	32	15
834	58	43	103.2	87	38	15
886	36	28	38	47	12.5	8
887	27.6	20.8	48	36	18.7	6.8
888	47.5	40.7	50	55	14	6.8
889	31	23.8	33	46	11	7.2
890	52.8	45.6	27	25		7.2
897	38.86	29.36	69.6	38.3	26.5	9.5
899	38.35	27.45	67	60	26	10.9
900	24	17.6	58	41.5	15.5	6.3
901	54	39.5	56	110	20.5	14.5
902	28	22.6	53	50	20.5	6.9
903	35.8	27.2	63	70	24.1	8.6
904	28	22.6	53	40	20.5	6.9
905	22.5	16.6	33.5	43.5	12.7	6

P/N	R1	R2	A	B	H	C
906	26	18.45	44	55	15.4	6.9
908	55	41	103	102		14
909	29	22.5	54	82	21.5	6.5
910	50	38	92	45	34.8	12
911	23.55	19.1	29.2	26.5	8.3	4.45
912	40.5	34.2	70.5	31	24.8	9.95
913	38.5	31.7	69	60	26.5	8
914	32.4	26.5	58.5	32	22.3	6.5
915	38	27	70	100	28	11
916	36.5	29.25	66	101.5	25.4	9.25
917	36	28	48	72		8
918	38.86	29.36	69.6	44	26.5	9.5
920	28.2	25	51.2	45	21.2	5.8
921	39.56	27	72	57.15	30.5	12.56
922	47.8	33.5	86	83	32	14.5
923	35.87	28.2	70.4	97.5
924	69	57.8	70	30	20.9	11.2
925	23.32	16.38	43.1	98.4	17.4	6.7
926	23.32	16.38	43.1	76.2	17.4	6.7
927	93.5	75.5	54.2	37	22	18
P/N	R1	R2	A	B	H	C
928	20.17	15.3	35.5	42	13.3	4.35
929	35.7	27	64	35.3	25.3	8.7
930	35.87	28.2	70.4	67.5	29.72	7,67
931	36.5	27.6	37	58	13.3	8.9
932	46.5	33.1	82	85	32.6	13.5
933	46.5	33.1	82	105	32.6	13.5
934	72.8	52.9	131	43.15	49.53	19.95
935	33.8	24.6	59	38	23.5	9.2
936	56.975	48.25	41.7	40	11.5	8.73
937	53.06	36.27	99.5	81.15	38.81	16.8
938	56.975	48.25	41.7	27	11.5	8.73
939	50.57	39.17	92.13	45.6	32.45	11.4
940	50.57	39.17	92.13	56.83	32.45	11.4
941	36.27	28.77	66.2	50.8	24.5	7.57
942	37	26.7	66	60	26.5	10.2
943	35	26.8	66.3	38	25.5	8.12
944	20.17	15.3	35.5	30	13.3	4.35
945	20	36	20.03	41	6.8	6
946	92.5	74.5	43	28	28	18
947	33.8	24.6	59	50	23.5	9.2
P/N	R1	R2	A	B	H	C
948	46.81	38.76	52.37	91.44	13.48	8.05
949	17	22	18.8	49	6.4	5
950	48	40.75	50.5	35	12.8	7.5
951	58	43	103.2	110	38	15
952	39	31	65.9	114.3	22.4	7.9
953	51.1	41.1	52	72	15.5	10
954	56.5	48	61	45	15.5	8.5
955	37.6	29.7	65	45.1	24	7.9
956	52.8	46.3	54.5	35	14	6.5
957	36.1	28.5	71.5	108	30.1	7.6
958	38.7	26.7	67	90	28	12
959	38.1	30.12	44	29.97	16.47	13.2
960	44.45	32.33	56.14	115.6	16.27	12.1
961	23.62	18.03	44.96	57.15	17.27	5.59
962	28.4	18.11	52.32	63.5	21.34	10.29
963	50	40.5	60	64	17.5	9.5
964	46.8	38.76	52.37	45	13.48	8.05
965	33.8	24.6	59	31
966	47.85	36.75	58	42.96/87.63	20.53	15.54
967	40	33.5	18	20		6.5
P/N	R1	R2	A	B	H	C
968	46.5	30.2	84.5	45	35	16.3
968-40	46.5	30.2	84.5	40	35	16.3
969	45.65	30.2	84.5	40	34	15.45
970	50	38	87	45
971	38.35	30.38	44	92.96
972	71.8	62.7	69.5	23	16.9	9.1
973	46.5	33	81	35		13.55
974	24	17.2	40	40	15	6.8
975	54	39.5	95	100	38	14.5
976	42.75	33	83	100.4
977	39.9	30.4	72	63
978	53.25	35.9	97	45
979	36.37	36.37	66.8	71.1
980	36.37	26.8	66.8	57.9
981	29	19	34	25	14	10
982	22.54	17.01	34.4	50
983	46.5	33.1	82	42.5
984	45.65	30.2	84.5	65
985	31	24	57	46
