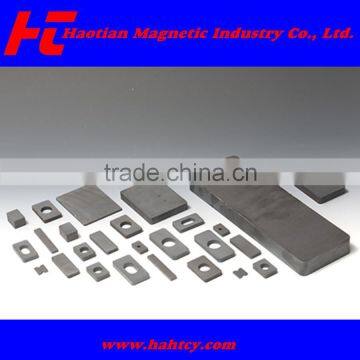

Block ferrite magnet

FOB Price

US$ 0.01 - 10 / Piece

500 Pieces(Min. Order)

Port Shanghai Port Lianyungang Port Guangzhou Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	HTMAGC
Model Number	customized	Type	Permanent
Composite	Ferrite Magnet	Shape	Ball
Application	Moto Magnet

Product Description

Product Description

HARD FERRITE MAGNETS
Hard ferrite (ceramic) magnets were developed in the 1960's as a low cost alternative to metallic magnets. Even though they exhibit low energy (compared with other permanent magnet materials) and are relatively brittle and hard, ferrite magnets have won wide acceptance due to their good resistance to demagnetization, excellent corrosion resistance and low price per pound. In fact, measured by weight, ferrite represents more than 75 percent of the world magnet consumption. It is the first choice for most types of DC motors, magnetic separators, magnetic resonance imaging and automotive sensors.

Ferrite magnets characteristics

Mostly Used national standard - SJ285-77 permanent ferrite magnet standard

Grade	Value(min/typical in our factory)
	Br		Hcb(BHC)		Hcj(IHC)		(BH)max
	MT	KG	KA/m	Koe	KA/m	KOe	Kj/m^3	MGOe
Y10T(=C1)	200/218	2.00/2.18	125/145	1.57/1.82	210/250	2.64/3.14	6.5/8.0	0.8/1.0
Y25	360/370	3.60/3.70	135/150	1.70/1.88	140/170	1.76/2.14	22.5/25.3	2.8/3.2
Y30(=C5)	380/385	3.80/3.85	191/210	2.40/2.64	199/220	2.50/2.51	26.0/28	3.4/3.7
Y30BH	380/390	3.80/3.90	223/235	2.80/2.95	231/245	2.90/3.08	27.0/30.0	3.4/3.7
Y33	410/420	4.10/4.20	220/235	2.77/2.95	225/240	2.83/3.01	31.5/33.0	4.0/4.2
Y35	400/410	4.00/4.10	175/195	2.20/2.45	180/200	2.26/2.51	30.0/32.0	3.8/4.0
C8(=C8A)	385/390	3.85/3.90	235/255	2.95/3.20	242/265	3.05/3.33	27.8/30.0	3.5/3.7
C10	400/410	4.00/4.10	288/300	3.62/3.77	280/287	3.51/3.60	30.4/31.9	3.8/4.0

Packaging & Shipping

Packing

Hard Ferrite Magnet : Carton& Pallet, or according to customers’s requirement.
Pallet Size and Weight: 100*100*150cm/pallet, 1~1.5 ton/pallet.
Carton weight: 15kg/carton.

Shipping

All available shipping ways could be applied, by courier, air or sea, better to choose by sea.

1. By Sea: If the GW is over 50kg, we advise ship by sea when you are not urgent for the goods as the charge of ocean way is cheaper than by air.

2. By Air: If the good below 20kg, we advise ship by air as we HAWELL MAG signed a long-term agreement with Express (DHL, TNT, FedEx) and the best discount we can provide to you.

3. Full-way tracking the cargos for you before the goods arrive.

Company Information:

As a permanent ferrite magnet factory and magnetic assembly factory in Jiangsu and based on more than 15 years of production experience, we have good connection with some reputable other magnet factories. With our abundant experience and industrious and hardworking staff members, our production capacity amounts to 7000 ton/year.So we will guarantee the sufficient supplies and on-time delivery. We can supply a wide range of products to meet ever-changing market demands. Customize orders are welcomed.

We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
