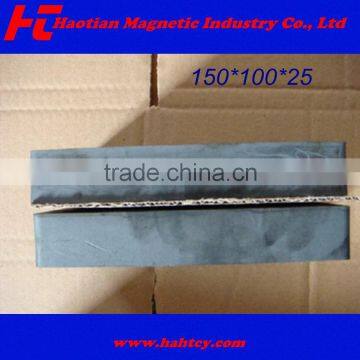

Block Ferrite magnet 150x100x25

FOB Price

US$ 0.01 - 10 / Piece

500 Pieces(Min. Order)

Port Shanghai Port Lianyungang Port Guangzhou Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	HTMAGC
Model Number	customized	Type	Permanent
Composite	Ferrite Magnet	Shape	Block
Application	Industrial Magnet

Product Description

Product Description

Introduction

Ferrite Magnet, made by molding powder mixture of about 80% Fe2O3 and about 20% either BaCo3 or SrO3, belong to the brittleness material,is also called ceramic magnet. The molded powder metallic green is sintered inside a temperature controlled furnace what is heated with electricity or coal. The ferrite magnets have good heat resistance, low cost, moderate performance, has become the most widely used permanent magnet.

Ferrite magnet features: high magnetic properties, good stability and low temperature coefficient.

Ferrite magnet applications: widely used in speakers, motors, toys, auto parts , instruments and so on.

Specification:

Grade	Br		HcB		Hcj		(BH)max		TK(Br)%/K		TK(Hcj)%/K	Max Temp	MMPA
Grade	KGs	mT	kOe	Ka/m	kOe	Ka/m	MGOe	Kj/m³				Max Temp	Equivalents
Y10T	2.00-2.18	200-218	1.57-1.82	125-145	2.64-3.14	210-250	0.8-1.0	6.5-8.0	-0.2	0.3		250	C1
Y25	3.60-3.70	360-370	1.70-1.88	135-150	1.76-2.14	140-170	2.8-3.2	22.5-25.3	-0.2	0.3		250
Y30	3.80-3.90	380-390	2.40-2.64	191-210	2.50-2.51	199-220	3.4-3.7	27.0-30.0	-0.2	0.3		250
Y33	4.00-4.10	400-410	2.20-2.45	175-195	2.26-2.51	180-200	3.8-4.0	30.0-31.5	-0.2	0.3		250	C5
Y35	4.10-4.20	410-420	2.77-2.95	220-235	2.83-3.01	225-240	4.0-4.2	31.5-33.0	-0.2	0.3		250
Y30BH	3.80-3.90	380-390	2.80-2.95	223-235	2.90-3.08	231-245	3.4-3.7	27.0-30.0	-0.2	0.3		250	C8
Y33BH	4.00-4.10	400-410	3.62-3.77	288-300	3.51-3.60	280-287	3.8-4.0	30.4-31.5	-0.2	0.3			C8

Packaging & Shipping

Packing

Hard Ferrite Magnet : Carton& Pallet, or according to customers’s requirement.
Pallet Size and Weight: 100*100*150cm/pallet, 1~1.5 ton/pallet.
Carton weight: 15kg/carton.

Shipping

All available shipping ways could be applied, by courier, air or sea, better to choose by sea.

1. By Sea: If the GW is over 50kg, we advise ship by sea when you are not urgent for the goods as the charge of ocean way is cheaper than by air.

2. By Air: If the good below 20kg, we advise ship by air as we HAWELL MAG signed a long-term agreement with Express (DHL, TNT, FedEx) and the best discount we can provide to you.

3. Full-way tracking the cargos for you before the goods arrive.

Company Information:

As a permanent ferrite magnet factory and magnetic assembly factory in Jiangsu and based on more than 15 years of production experience, we have good connection with some reputable other magnet factories. With our abundant experience and industrious and hardworking staff members, our production capacity amounts to 7000 ton/year.So we will guarantee the sufficient supplies and on-time delivery. We can supply a wide range of products to meet ever-changing market demands. Customize orders are welcomed.

We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
