Home > Products > Huntington Series > Two Axis Tilt Stage With Micrometer Head HTTS05-2A

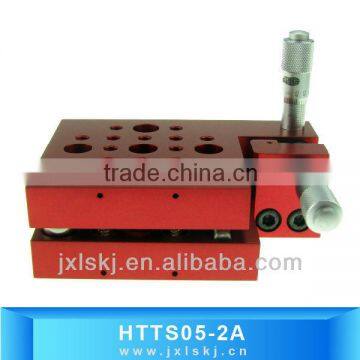

Two Axis Tilt Stage With Micrometer Head HTTS05-2A
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | HT | |
| Model Number | HTTS05-2A |
Product Description

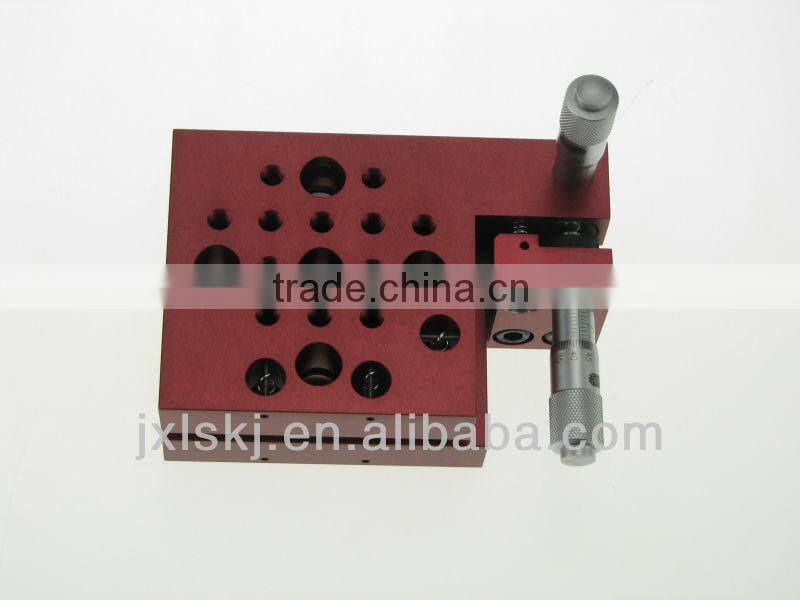

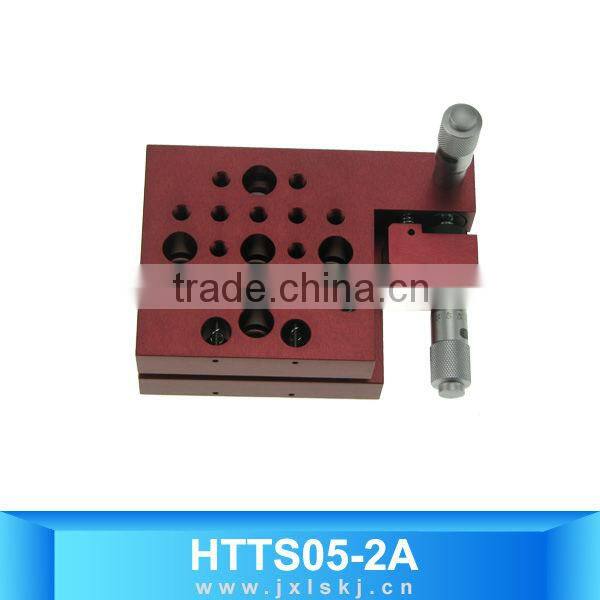

Two axis Tilt stage with micrometer head HTTS05-2A
1.Single or Two-axis Tilt Adjustment
2.Micrometer Head
3.High Precision, Good Stablity
4.There are standard mounting holes on the upper and bottom plate.
5.Spring Reset

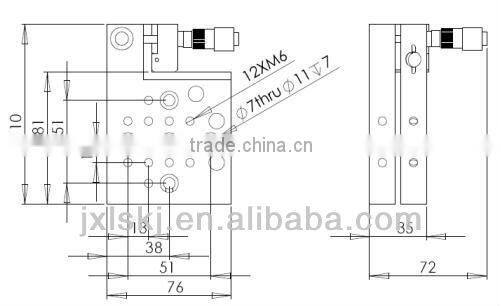

Platform Dimension | 80x75mm |
Angle Adjustment | ±5° |
Finish | Anodized |
Color | Chinese Red |
Drive Mode | Micrometer Head |
| Clear Aperture | No |
Weight | 0.52kg |
