25mm Universal Post Holder
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | HT | |
| Model Number | HTRH25P |
Product Description

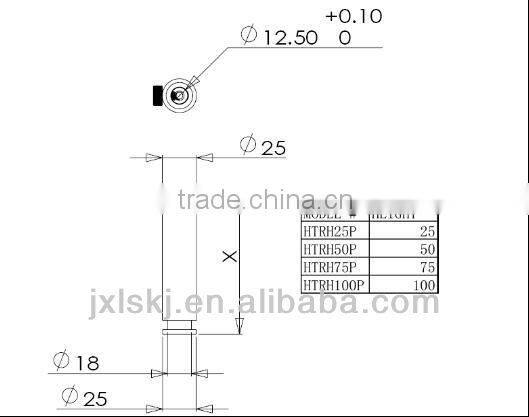

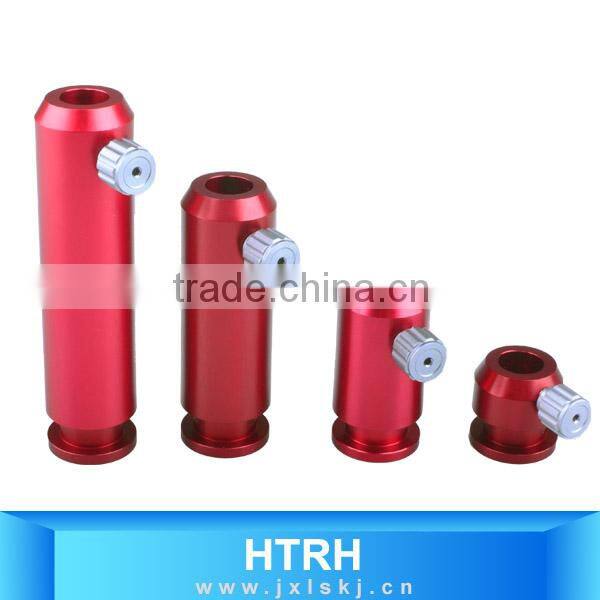

25mm Universal Post Holder
| Features: |
| 1. Post Holder center with 12.5 mm diameter hole, can make support posts fixed on different height. |
2.Axial precision machined V-shaped slot at central hole does not cause other displacement in adjusting the height of support posts and ensures stable locking; |
| 3.M6 thread hole in the bottom is convenient for connecting with other optical benches. |
Model | HTRH25P | HTRH50P | HTRH75P | HTRH100P |
|
diameter | 12.5mm | ||||
Height | 25mm | 50mm | 75mm | 100mm |
|
Weight | 0.02kg | 0.06kg | 0.08kg | 0.1kg |
|
Related products:
1.LSZG series support posts
2.LSCL series Magnetic bases
