Mango Juice Machine Production Line
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Beverage, Other, Apparel, Beverage, Machinery & Hardware, Apparel | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 380voltage | Power | 5kw | |
| Place of Origin | Jiangsu, China | Brand Name | sunswell | |
| Model Number | RXGF | Dimension(L*W*H) | 2500 2000 21000 | |
| Weight | 3000kg | Certification | CE UL | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
mango juice machineSUS 316 fabiricated.
CE certificated
2000bph to 30000bph

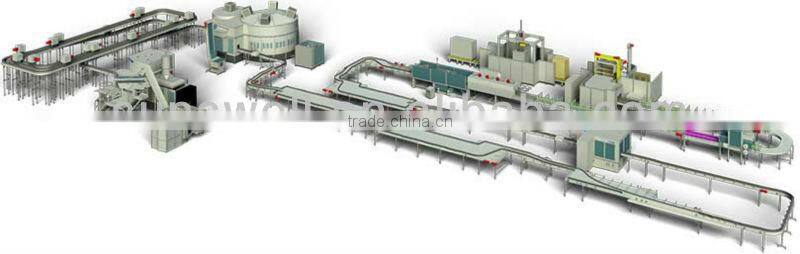

1. mango juice machine prodution line flow chart
RXFG series is special for juice filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of hot filling juice beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.
the output can reach 30000bph for this machine
the output range is 2000-30000bph
with gripper technology, very easy to change your bottle style.
2. Techncal details of mango juice machine
2.1.Bottle infeed

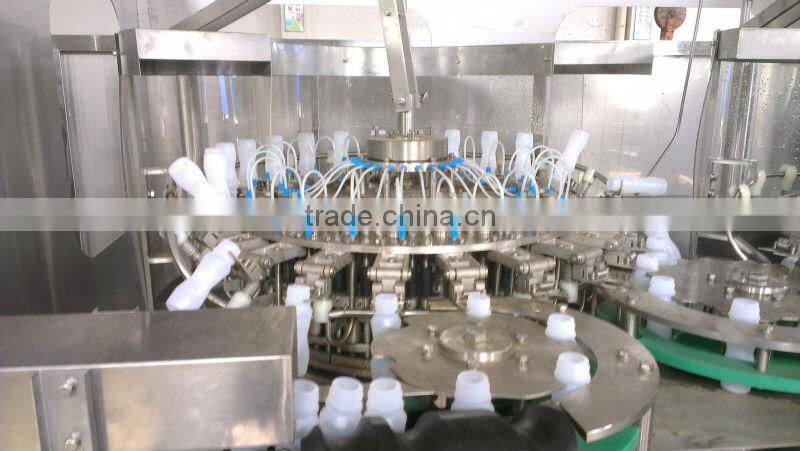

2.2. Rinser
2.3. Filler
2.4. capper
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Controlling cabinet
main components
1) Material of filling valve: Stainless steel SUS316L.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: ABB/SEW.
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: PROFACE.
7) PLC: Mitsubishi.
8) Pneumatic components: FESTO.
9) Seals: Busak+Shamban.
3. Model of mango juice machine
Model | Working capacity | Maximum capacity |
RXGF 8-8-6 | 2000BPH | 3000BPH |
RXGF14-12-5 | 5,000BPH | 6,000BPH |
RXGF18-18-6 | 7,000BPH | 8,000BPH |
RXGF24-24-6 | 10,000BPH | 12,000BPH |
RXGF32-32-8 | 12,000BPH | 15,000BPH |
RXGF40-40-10 | 15,000BPH | 18,000BPH |
RXGF50-50-12 | 18,000BPH | 20,000BPH |
4. Plant tour
