Small Factory Water Filling Machine Bottle Plant
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Commodity | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V | Power | 4.4 | |
| Place of Origin | China | Brand Name | TOPSPACK | |
| Model Number | TP-LF-A10G | Dimension(L*W*H) | 2150*1650*2250 | |
| Weight | 2800KG | Certification | CE |
Product Description
Specifications
1.Automatic filling, high efficiency2.Suitable for water milk juice oil liquid
3.Omron control system

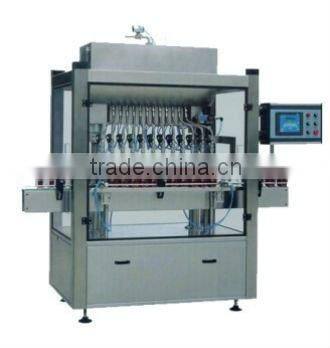

TP-LF-A10G small factory water filling machine bottle plant
Function:
It is for the quantitative automatic liquid filling machine can be used in liquid, concentrated slurry filling operation, applicable to all types of round bottles, flat bottles and other special-shaped bottles. It is designed to straight-line working way, using PLC logic controller and various detection sensors and the folding cylinder to achieve the purpose of automatic control.
Technical Parameter:
Suitable container: Column form bottles, round bottle, flat bottle and other special-shaped bottles
Filling volume: 1000-5000ml
Filling heads: 4 heads
Filling speed: 400-800p/h
Filling accuracy: +-0.5%
Power supply: 220V, 50/60HZ
Electrical power: 1.5KW
Note: We can customize your order if you have special demands.
Main character:
l LCD touch interface, a simple mechanical adjustment
l Operation is more easily
l Can save 10 sets of information, there is no need to debugging when the bottle type changes
l With the day or the cumulative number of filling display
l Convergence can be stand-alone or pipelining
l Touch screen, PLC, transducer and other electrical components selected imported brands
l Contact parts with some materials are 316L stainless steel.
