Dust-proof Stainless Steel Flexible Powder Screw Feeder
- Shanghai
- T/T Credit Card PayPal
You May Like
-
Dual Direction Flexible Screw Feeder, Screw Conveyor for Powder
-
Wear Resistant Auger Screw Feeder From Gold Supplier Working With Packing Machine
-
Dry Powder Inclined Screw Handling Machine
-
Easy Operate Vacuum Conveyor for Feeding Powder
-
Chemical Powder Vacuum Conveyor Machines
-
ZFJ Pneumatic Food Vacuum Powder Conveyor Machine
Product Details
| Condition | New | Application | Other, Powder and Granules | |
| Packaging Type | Cartons | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 3P AC208-415V 50-60Hz | Power | 610W | |
| Brand Name | TOPSPACK | Model Number | HZ-2A2 | |
| Dimension(L*W*H) | 720*620*800mm | Weight | 100KG | |
| Certification | CE,SGS |
Product Description
Specifications
1.with vibrating and feeding motor2.whole machine SUS 304
3.with dust-proof hooper
4.suitable for powder and granules

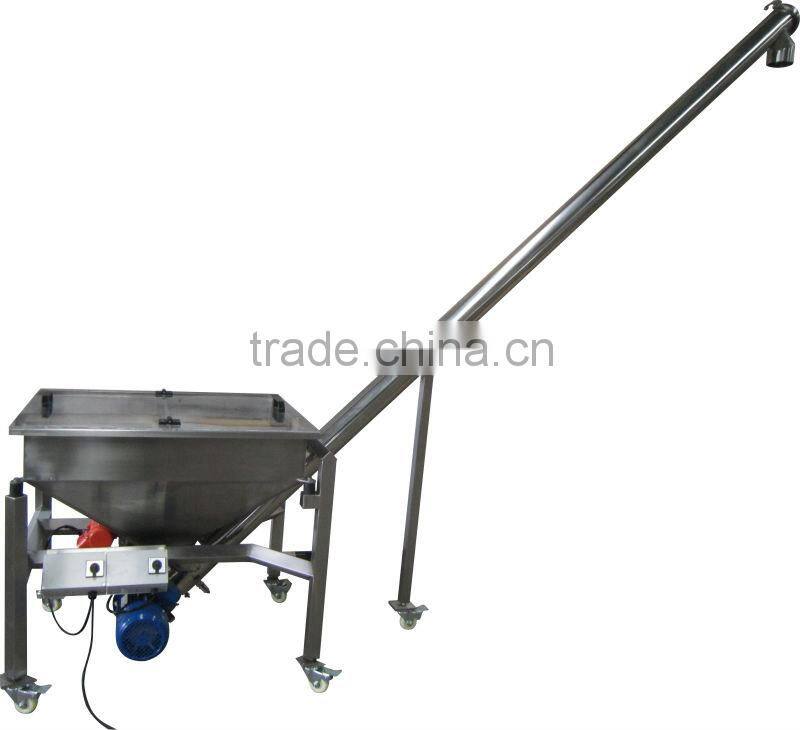

TOPSPACK Dust-proof Stainless Steel Flexible Powder Screw Feeder

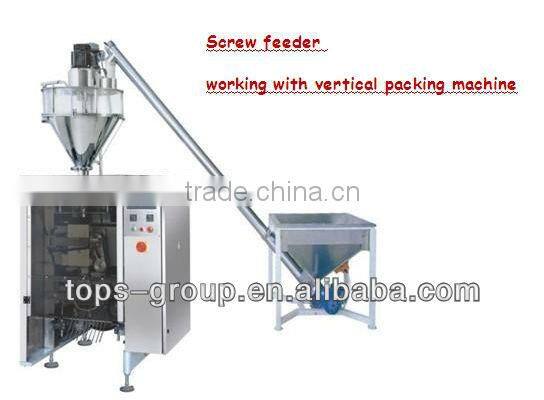

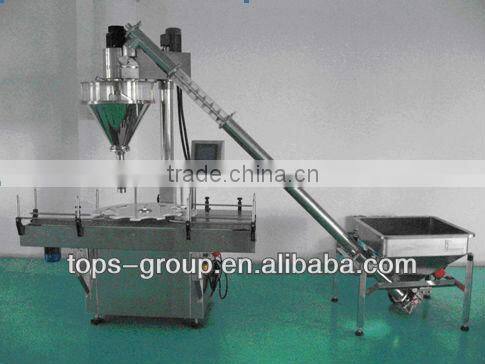

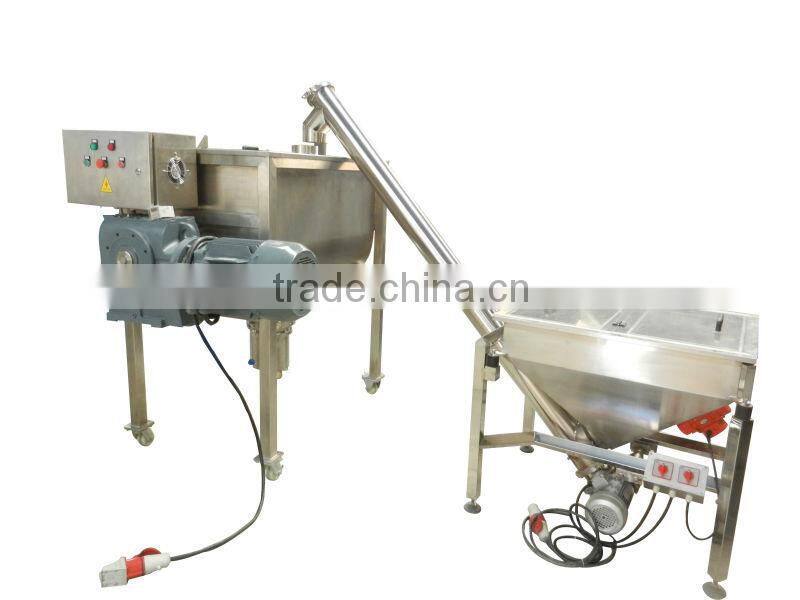

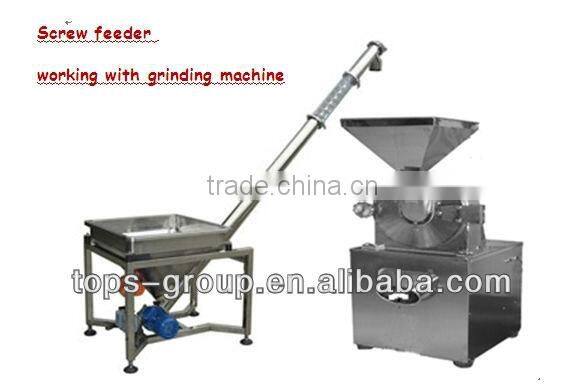

This machine can convey many different materials, like dry powder,such as coffee powder, wheat flour, condiment and it also fits for some small batches. Combining with the packaging machine of our company, we can present you situation tracing with the above material. It can also be used separately. The whole machine are made of stainless steel of 304 except for the motor.

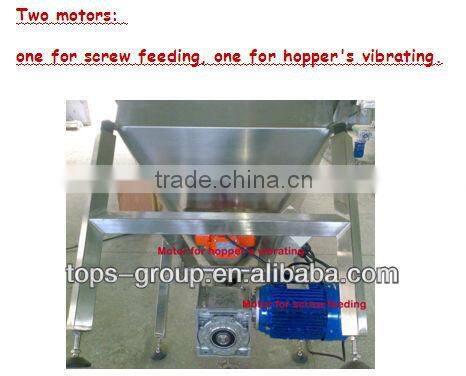

1.The vibrating screw feeding machine equips with double motors:feeding motor and vibrating motor, each of them has its own switch control.
2.Once starts the switch,the hopper would be in continuously vibration which makes the material flow easily and convective. and with different requirement,the size can be changed X cor made according to customer’s requirement.
3.The hopper separates from the twisting shift, designing with the reasonable structure, each part of the conveyor can be taken down easily.

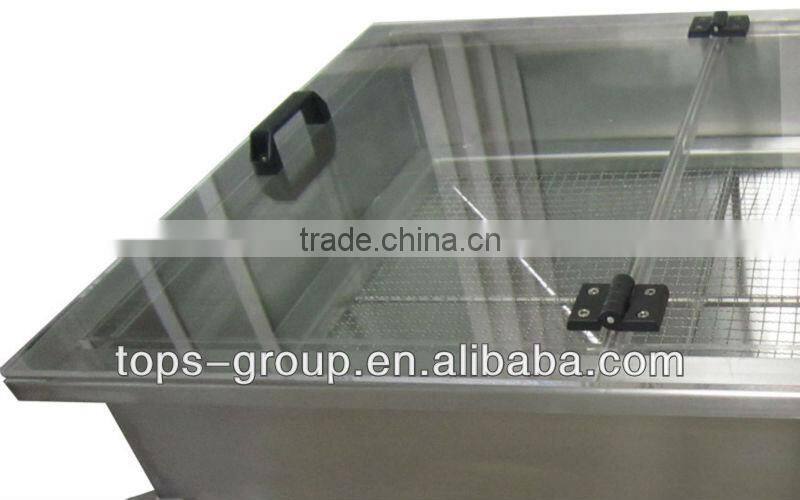

4.With dust-proof characteristic, the hopper won’t be glued or polluted by dust and powder. And the complete machine is made of Ss304 except for the motor.

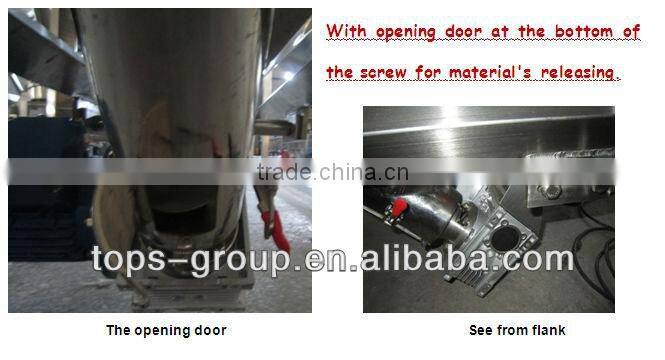

5.With specific design,it’s very easily and convenient to clean up the residue and leftover,also this equipment can discharge the material reversely, and the storing materials at the bottom of hopper pipe can be easily released from the door once starting the switch.
Main specification | HZ-2A2 | HZ-2A3 | HZ-2A5 | HZ-2A7 | HZ-2A8 | HZ-2A12 |
Charging capacity | 2m3/h | 3m3/h | 5m3/h | 7m3/h | 8m3/h | 12m3/h |
Diameter of pipe | Φ102mm | Φ114mm | Φ141mm | Φ159mm | Φ168mm | Φ219mm |
Hopper volume | 100L | 200L | 200L | 200L | 200L | 200L |
Power supply | 3P AC208-415V 50-60Hz | |||||
Total power | 610W | 810W | 1560W | 2260W | 3060W | 4060W |
Total weight | 100kg | 130kg | 170kg | 200kg | 220kg | 270kg |
Overall dimensions of hopper | 720*620*800mm | 1023*820*900mm | ||||
Charging height | Standard1.85m,1-5m could be designed and manufactured | |||||
Charging angle | Standard45 degree,30-60 degree are also available | |||||
