Product Details
| Products Status | Stock | Application | Other, lcd monitor intraoral camera | |
| Screen Size | Other, 5.5" | Response Time | 10ms | |
| Brightness | 350cd/m | Interface Type | HDMI, Other, HDMI, SDI | |
| Contrast Ratio | 500:1 | Resolution | Other, 800x480 | |
| Widescreen | Yes | Panel Type | TFT | |
| Pixel Pitch | 0.045(W)x0.135(H) mm | Brand Name | SEETEC | |
| Model Number | X5 | Place of Origin | Fujian, China |
Product Description

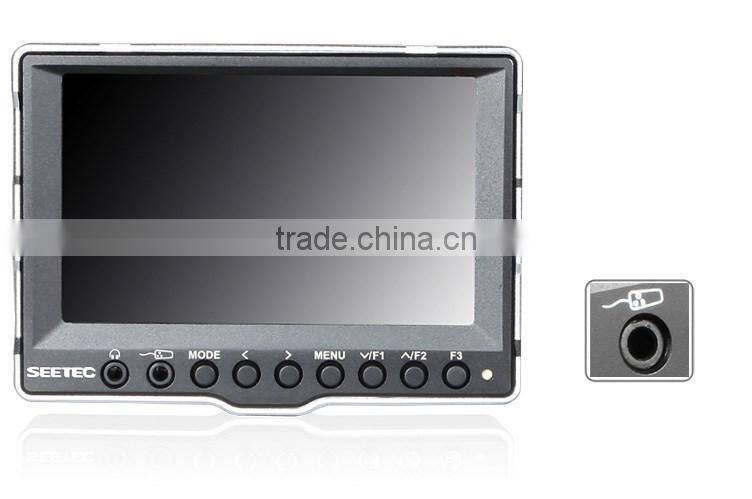

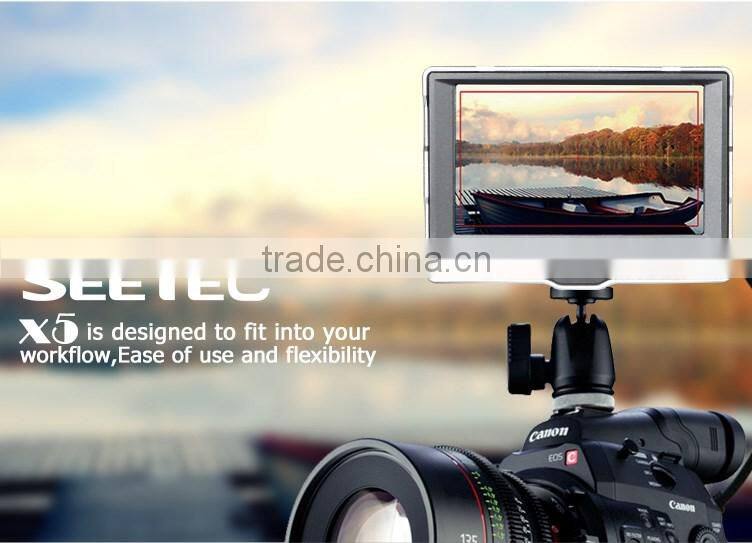

Aluminum panel false colors function mirror image small 5 inch tft color screen lcd monitor intraoral camera
Provides SDI input and output functions, which could identify HD & SD signals automatically. X5 monitor adopts high-end image processing chip, professional 5'' LCD panel with 800x480 resolution, high brightness and high contrast characteristics. Also the wide viewing a ngle (H.120°/V.140°) could achieve multi-angle picture watching and avoid image grey reversal.
As a standard transmission format of broadcast television digital signal, SDI has been adopted by the TV industry all over the world. No matter the filming creating, nor the post editing, all process with SDI for the HD & SD audio/ video signals. Most professional HD cameras and hi-end HDV recode and transfer HD video signals by this format as well.
| Description | 5" SDI HD Field Monitor Aluminum | ||
| Model | X5 | ||
| Resolution | 800x480 | ||
| Dot pitch | 0.05(W) x 0.15 (H) | ||
| Aspect ratio | 16:9 | ||
| Brightness | 350cd/m² | ||
| Contrast | 500:1 | ||
| Backlight | LED | ||
| Response time | 10ms | ||
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | ||
| Inputs | HDMI,SDI | ||
| Outputs | SDI,Earphone jack | ||
| SDI Support Mode | ITU-R BT.656 | 576i | |
| SMPTE-125M | 480i | ||
| SMPTE-274M | 1080i(60/59.94/50) 1080p(30/29.97/25/24/24fps/23.98/23.98fps) | ||
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | ||
| SMPTE-424M | 1080i(60/59.94/50) 1080p(60/59.94/50) | ||
| HDMI Support Mode | 480i / 576i / 480p/576p | ||
| 1080i (60/59.94/50) | |||
| 720p (60/59.94/50/30/29/25/24/23.98) | |||
| 1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) | |||
| Power Consumption | ≤10W | ||
| Input Voltage | DC7V-18V | ||
| working Temperature | -20℃ ~ 55℃ | ||
| storage Temperature | -30℃ ~ 65℃ | ||
| Install Way | 1/4"-20 Thread Socket | ||
| Unit Size | 134L × 97W ×28.5H(mm) | ||
| Unit Weight | 475g | ||

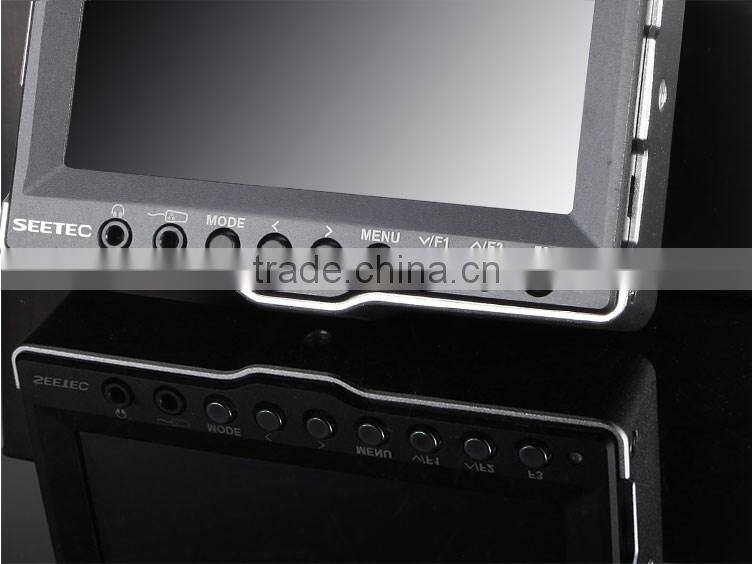

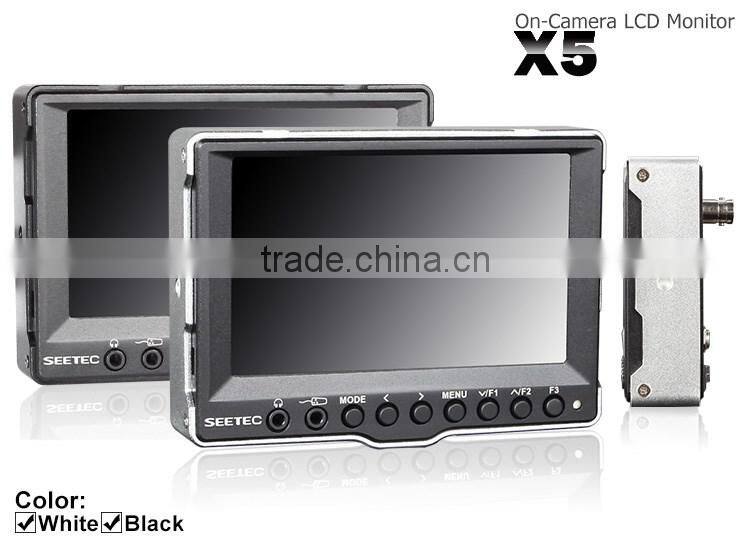

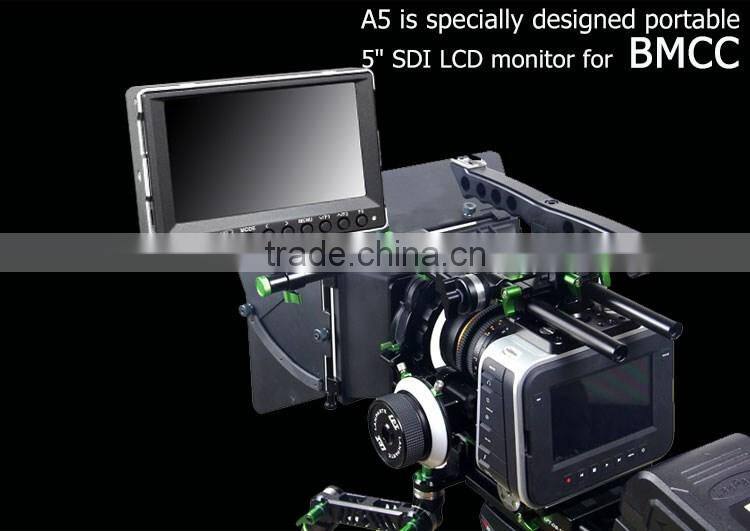

Durable Aluminum Construction
The X5’s frame is constructed with durable aluminum making it perfect for the professional video shooting . Its solid design ensures the X5 performs at its best even in the roughest terrains, ensuring the monitor’s reliability and longevity.

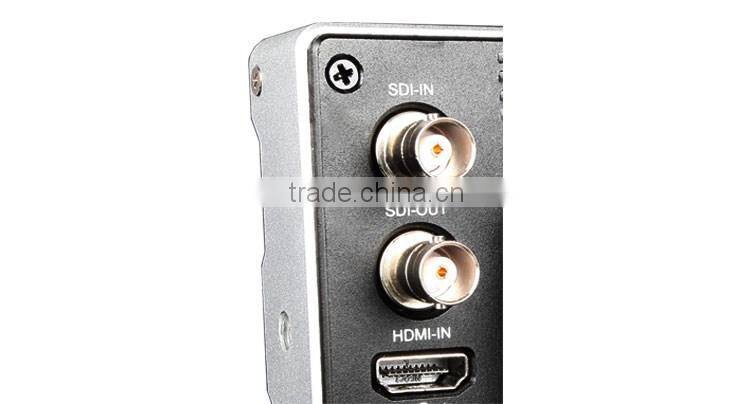

Inputs and Outputs
The X5 features SDI and HDMI inputs and SDI outputs.Since the monitor is all digital you get the purest and cleanest signal directly to the LCD panel. To remove the legacy analog inputs and circuits helps keep you image as clean as possible.

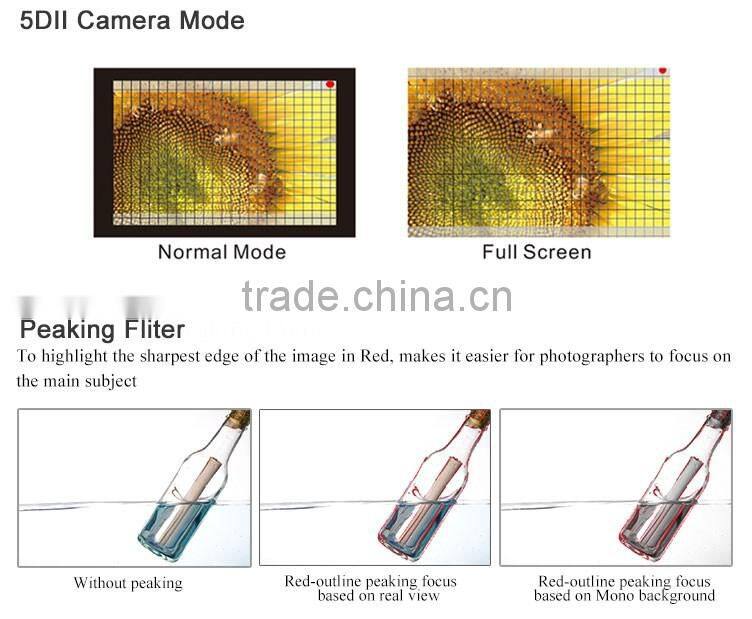

1. Camera 5D II Mode

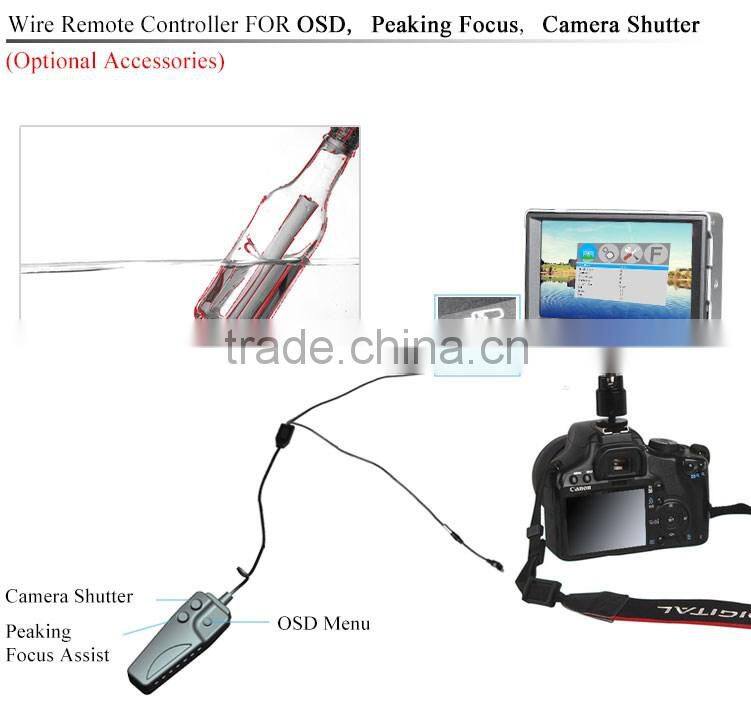

2. Peaking Focus Assist (1. Red-outline peaking focos based on real view; 2. Red-outline peaking focus based on Mono background)
3. Pixel-to-Pixel
4. Exposure (Zebra)
5. Histogram
6. False Colors
7. Check Field (Red, Green, Blue, Mono)
8. Centre Marker
9. Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
10. Mirror image (L/D, L/R)/ Freeze

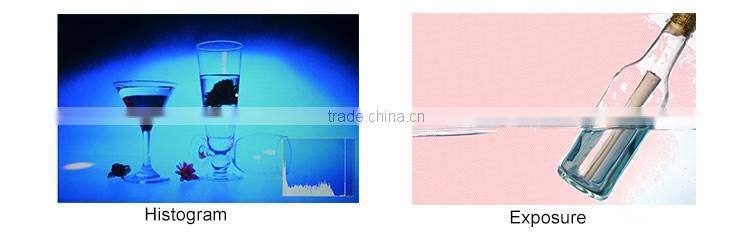

Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizont alaxis (Left: Dark, Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis
Exposure
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern

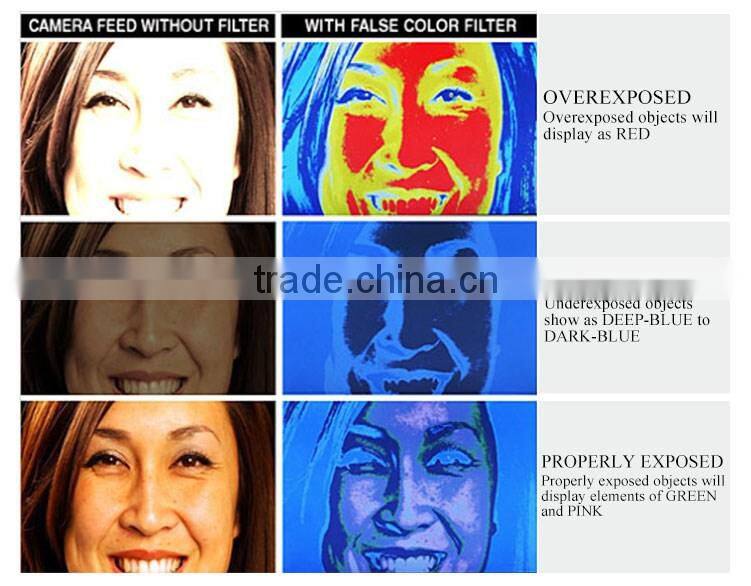

False Color
False color can be intuitive observation and calculation in the scene lighting levels,make brightness or lighting value mapping for the display brightness of false color, from the darkest to the brightest, in turn display blue, cyan, green, yellow, orange and red

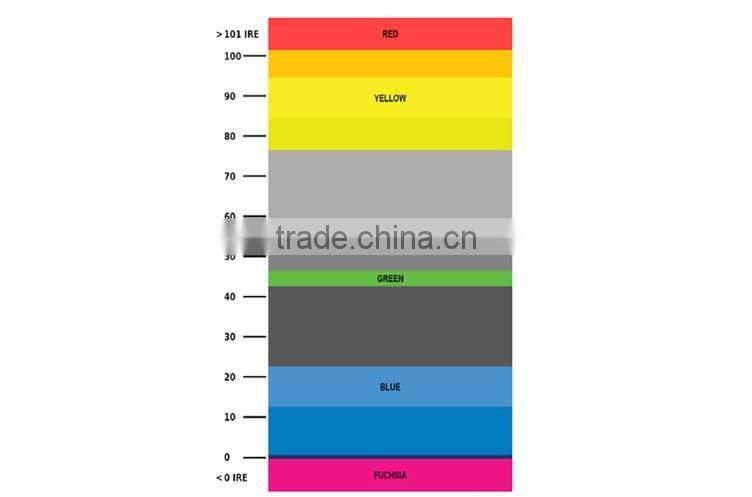

False Color Key
To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people)
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.
Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.
SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.
We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.
We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
