5" Dslr Field Hdmi Monitor for Action Camera With F970 Plate ST5D/O
- Xiamen port
- T/T D/P D/A Credit Card PayPal
You May Like
-
7 Inch Slim, Lightweight Design Ips Panel Dslr Mount Monitor ST699
-
5" Hdmi Dual Monitor Field for Camera 5D II Mode With F970 Plate ST5D/O
-
5.6"1080p Field Monitor Ips Panel With F970 Plate ST56D/O
-
5.6" Pip Function Monitor Ips Panel With F970 Plate ST56D/O
-
5" Dslr Field Hdmi Monitor for Camera 5D II Mode With F970 Plate ST5D/O
-
5.6" Ultra-High Resolution Ips Panel Hdmi Monitor With F970 Plate ST56D/O
Product Details
| Products Status | Stock | Application | Other, Field Monitor | |
| Screen Size | Other, 5." | Response Time | 30ms | |
| Brightness | 350cd/m | Interface Type | HDMI, S-Video | |
| Contrast Ratio | 500:1 | Resolution | Other, 1280*800 pixels (up to1920*1440) | |
| Widescreen | Yes | Panel Type | IPS | |
| Pixel Pitch | 0.045(W) *0.135(H) mm | Brand Name | SEETEC | |
| Model Number | ST5D/O | Place of Origin | Fujian, China |
Product Description

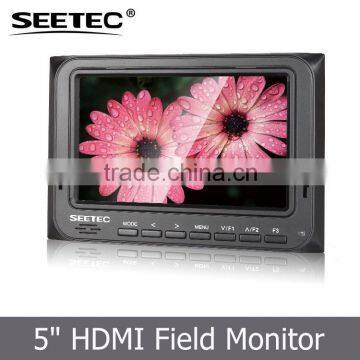

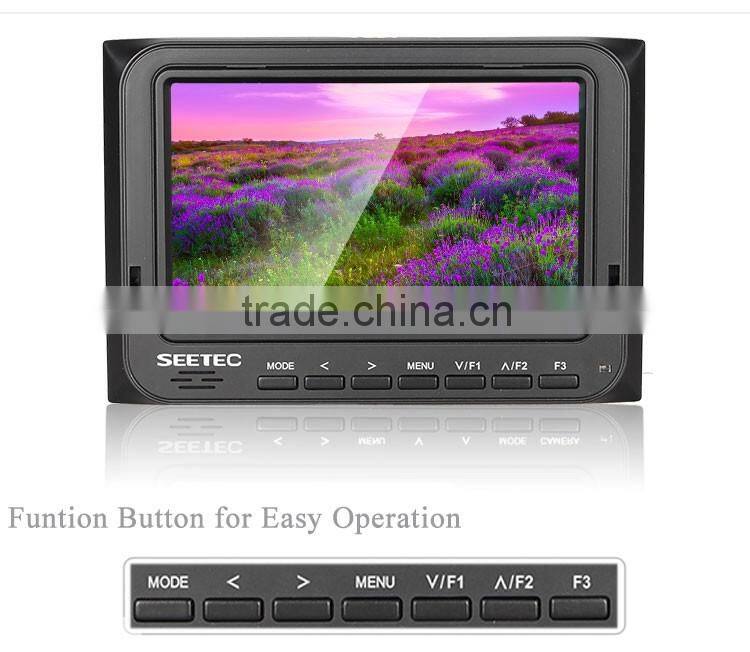

5" dslr field hdmi monitor for action camera with F970 Plate ST5D/O

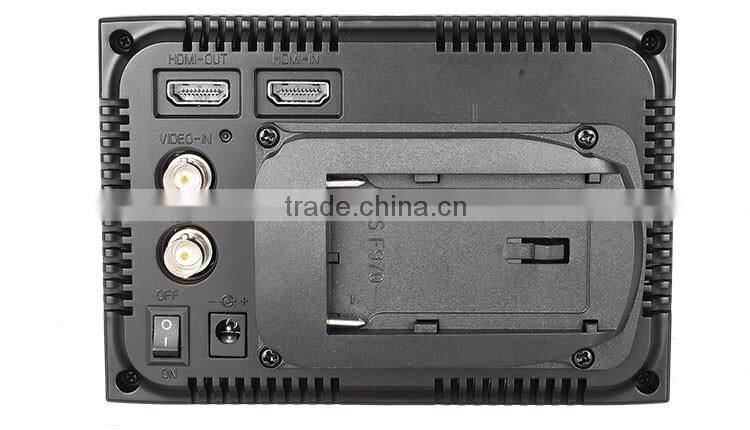

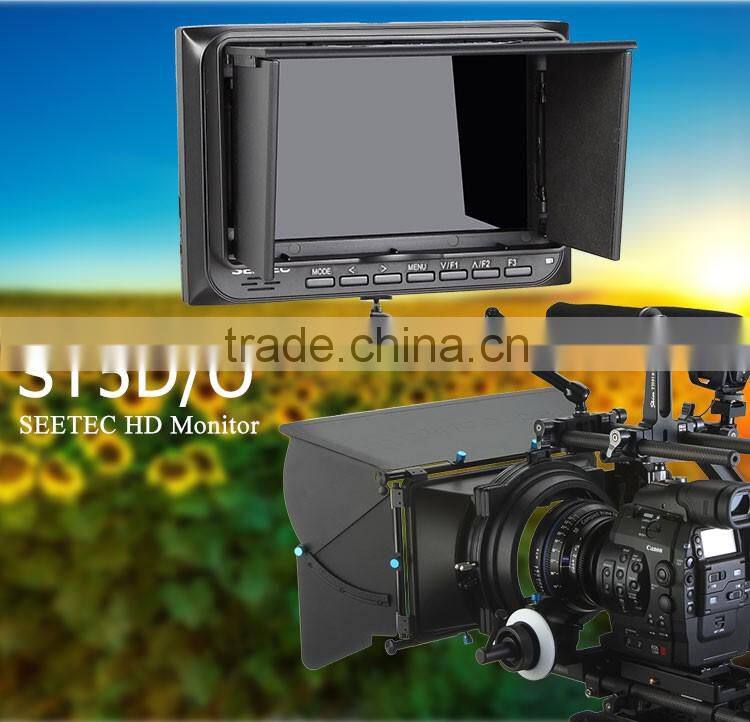

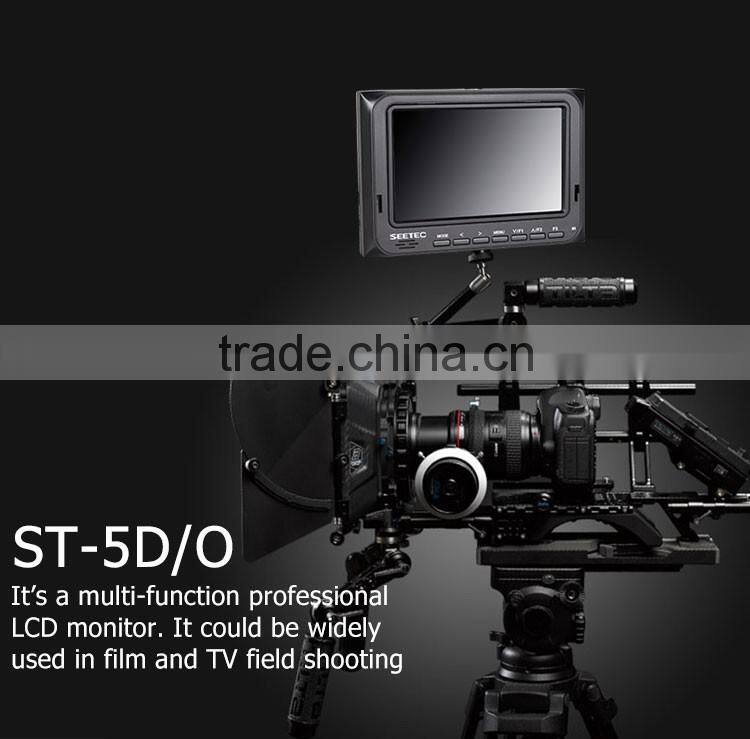

The SEETEC ST5D/O Camera Top Field Monitor F970 Kit provides a light weight 5-inch 800 x 480 LCD monitor with HDMI that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. Its small size is perfect for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane. This unit offers a compostite video input and audio input, along with HDMI in and out. A variety of features include a 3.5mm stereo headphone jack, front speaker for audio monitoring, auto aspect ratio detect, zoom, image flip/ flop and full color adjustment, and battery saver switch. Users also have the ability to power this monitor using a standard F970 battery. This feature allows the monitor to be powered using an existing DSLR battery for mobile on-the-go monitoring.
| Desciption | 5" On-Camera Field HD Monitor | |
| Model | ST5D/O (ST5D W/O HDMI output) | |
| Screen size | 5'' | |
| Dot Resolution | 800x480 pixels (up to1920×1440) | |
| Dot pitch | 0.045(W) × 0.135 (H) mm | |
| Aspect Ratio | 16:9 | |
| Brightness | 350cd/m² | |
| Contrast Ratio | 500:1 | |
| Backlight | LED | |
| Response time | 10ms | |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | |
| Input Signals | Video,Audio,HDMI | |
| Output Signals | HDMI,Built-in speaker | |
| HDMI Support Format | 480i / 576i / 480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | |
| Power Consumption | ≤6W | |
| Input Voltage | DC 6V-24V | |
| workingingTemperature | -20℃ ~ 55℃ | |
| storage Temperature | -30℃ ~ 65℃ | |
| Install Way | 1/4"-20 Thread Socket(2 sides up&down) | |
| Unit Size | 146L * 100H *29.5D (mm) | |

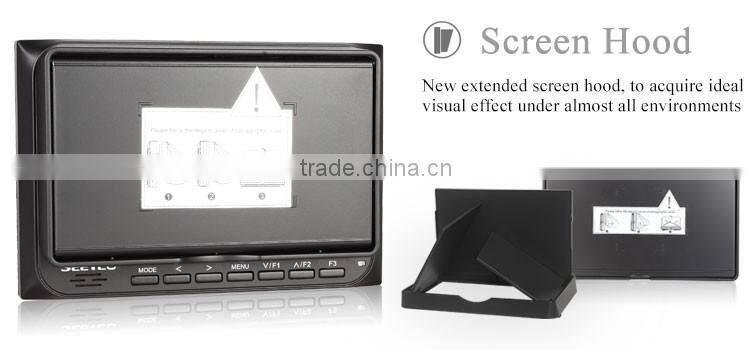

| Unit Weight | 260g/340g(With sun shade) | |
Support Multiple Types of Input
ST56D/O supports Audio/ Video and HDMI signal inputs up to 1080p

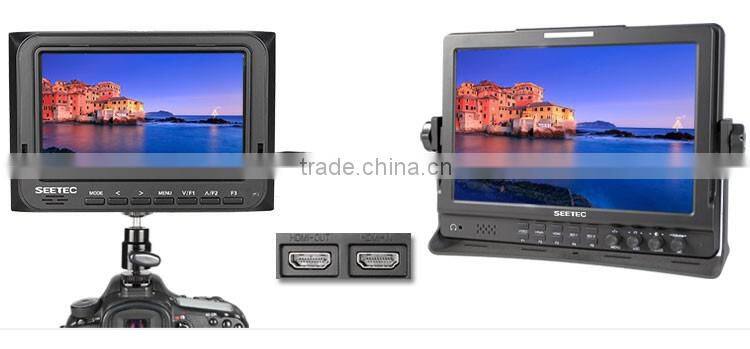

Daisy-Chain Live Displays
The ST56D/O has both HDMI in and out plug-ins, allowing it not only display live signals, but also send them out to other monitors simultaneously. It s able to display live picture on multiple displays at once while still maintain the original video quality.

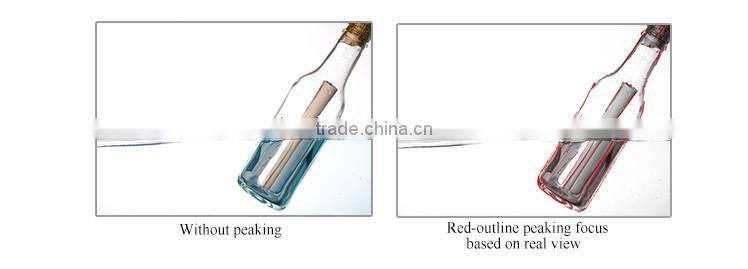

1.Peaking Focus Assist(Red-outline peaking focus based on Mono background)
2.Camera 5D II Mode

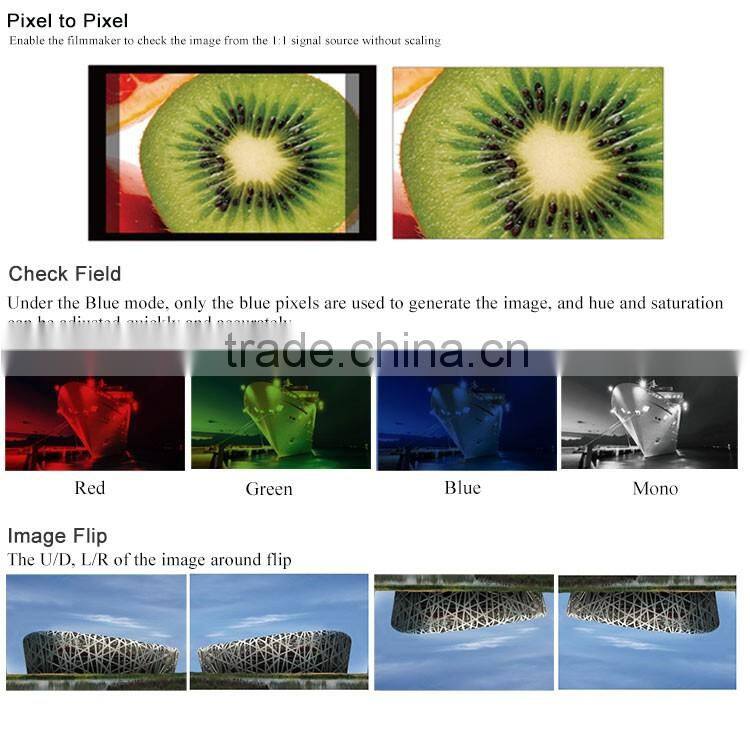

3.Check Field: (Red,Green,Blue,Mono)

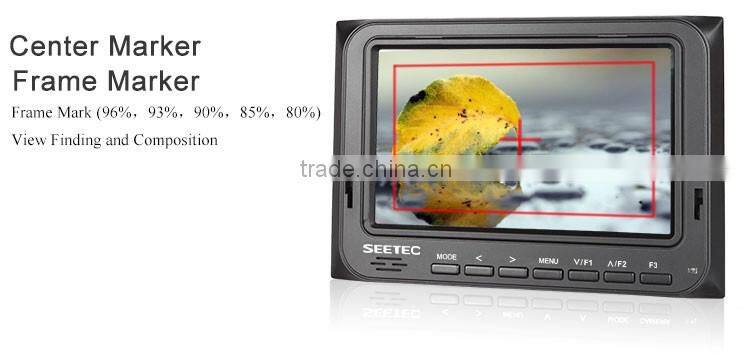

4.Centre Marker
5.Screen Marker (80%,85%,90%,93%,96%,2.35:1)

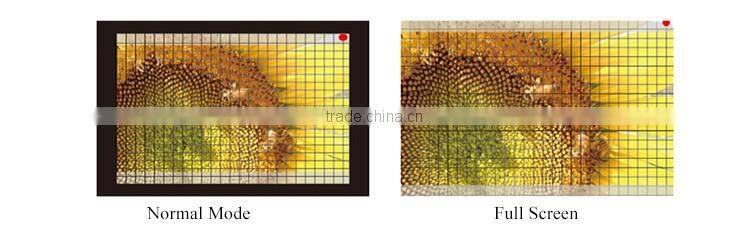

6.4:3&16:9 image adjustable
7.Front Earphone Jack
8.Image Flip (U/D,L/R)
9.Pixel-to-Pixel 10.Image Freeze
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.
Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.
SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.
We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.
We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
