Good Air Tightness Hoisting Marine Rubber Airbag With Spot Goods
- Qingdao
- T/T
You May Like
-
High Quality Flexo Rubber Ship Launching Airbag With Fast Delivery
-
Chinese Ship Launching/lifting Rubber Marine Airbag With Fast Delivery
-
World Widely Used High Buoyance Good Air Tightness Marine Inflatable Ship Airbag
-
Made in China Good Air Tightness Marine Rubber Boat Airbag
-
Made in China Marine Building Rubber Ship Hoisting Airbag
-
Passed ISO14409 Rubber Heavy Lifting Marine Airbag
Product Details
| Place of Origin | Shandong, China | Brand Name | Xincheng | |
| Model Number | XC.NO.A1898 | Part | Other, marine rubber airbag |
Product Description

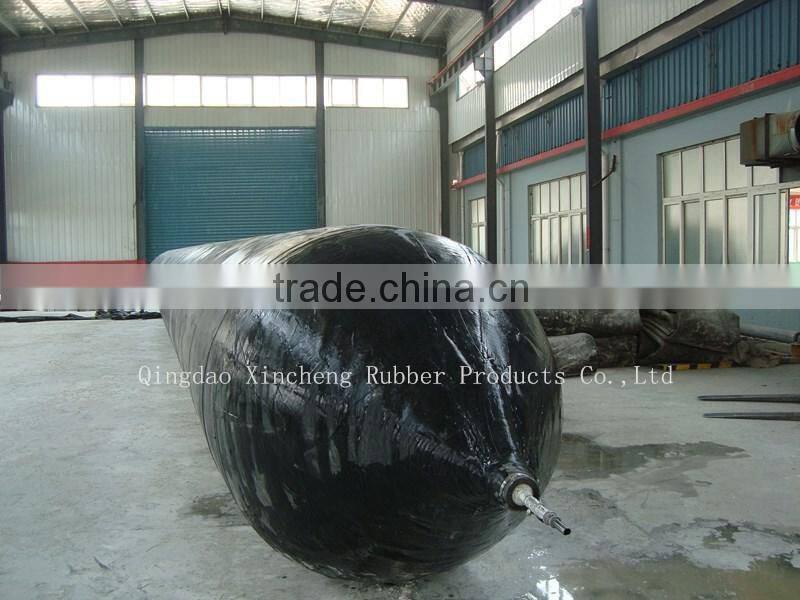

Good air tightness hoisting marine rubber airbag with spot goods
1. Value for Money, you will get the best price.
2. Unrivalled Expertise, we promise trustworthy product quality and service.
3. Good product lifespan and quality warranty.
4. Environment friendly and anti-collision.

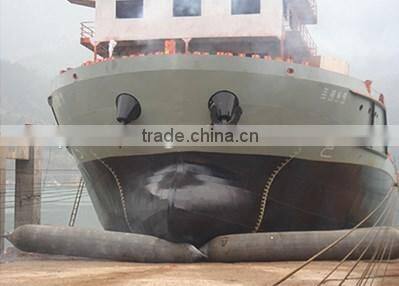

1. Shipwreck salvage.
2. Floating bridge and dock construction.
3. Rescue and remove of wrecked ship.
4. Can be used as pontoons for supporting docks and other floating structure.
Airbag Structure:
Specification Form of Airbag:
1> Diameter (D) : From 0.8m to 2.5m.
2> Effective Length (EL) : From 6m to 25m.
3> Total Length (TL) : From 7m to 28m.
4> Other specification of ship launching airbags also available upon customer’s request
Besides,we can according to your ship information provide you the most suitable size, etc.
DIAMETER | WORKING PRESSURE | WORKING HIGHT | GUARANTEED BEARING CAPACITY PER UNIT LENGTH | ||
KN/m | T/M | Lb/ft | |||
D=1.2m (D=3.94FT) |
0.17Mpa (24.66psi) | 0.7m(2.296ft) | 133.61 | 13.62 | 9154 |
0.6m(1.968ft) | 160.30 | 16.34 | 10983 | ||
0.5m(1.640ft) | 187.08 | 19.07 | 12818 | ||
0.4m(1.312ft) | 213.76 | 21.79 | 14646 | ||
0.3m(0.984ft) | 240.44 | 24.51 | 16474 | ||
0.2m(0.656ft) | 267.22 | 27.24 | 18309 | ||
D=1.5m (D=4.92ft) |
0.13Mpa (18.85psi) | 0.9m(2.952ft) | 122.63 | 12.50 | 8402 |
0.8m(2.624ft) | 143.03 | 14.58 | 9800 | ||
0.7m(2.296ft) | 163.43 | 16.66 | 11198 | ||
0.6m(1.968ft) | 183.94 | 18.75 | 12602 | ||
0.5m(1.640ft) | 204.34 | 20.83 | 14000 | ||
0.4m(1.312ft) | 224.75 | 22.91 | 15398 | ||
0.3m(0.984ft) | 245.15 | 24.99 | 16797 | ||
D=1.8m (D=5.90ft) |
0.11Mpa (15.95psi) | 1.1m(3.608ft) | 120.96 | 12.33 | 8287 |
1.0m(3.280ft) | 138.22 | 14.09 | 9470 | ||
0.9m(2.952ft) | 155.59 | 15.86 | 10660 | ||
0.8m(2.624ft) | 172.85 | 17.62 | 11843 | ||
0.7m(2.296ft) | 190.22 | 19.39 | 13033 | ||
0.6m(1.968ft) | 207.48 | 21.15 | 14216 | ||
0.5m(1.640ft) | 224.75 | 22.91 | 15398 | ||
0.4m(1.312ft) | 242.01 | 24.67 | 16581 | ||
0.3m(0.984ft) | 259.38 | 26.44 | 17771 | ||
0.2m(o.656ft) | 276.64 | 28.20 | 18954 | ||
NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST . | |||||
Inflatable Accessories of Airbag:
♦—— Fiber layers:
♦—— Our equipment :
We are looking forward to build business with you. If you have any questions, please feel free to contact me.
