Ship Launching/Landing Marine Vessel Lifting Airbag
- Qingdao
- T/T
You May Like
-
Competitive Price Vessel Hoisting Rubber Marine Lifting Airbag
-
World Widely Used High-performance Buoy Lifting Marine Airbag
-
Iso14409 Certification High Bearing Capacity Ship Pneumatic Rubber Airbag
-
World Widely Used ISO14409 Lifting Marine Rubber Boat Airbag
-
Made in China ISO14409 Floating Launching Type Marine Rubber Airbag
-
Rubber Marine Airbag for Ship Moving & Building
Product Details
| Place of Origin | Shandong, China | Brand Name | Xincheng | |
| Model Number | XC.NO.A1869 | Part | Other, Vessel Lifting Airbag |
Product Description

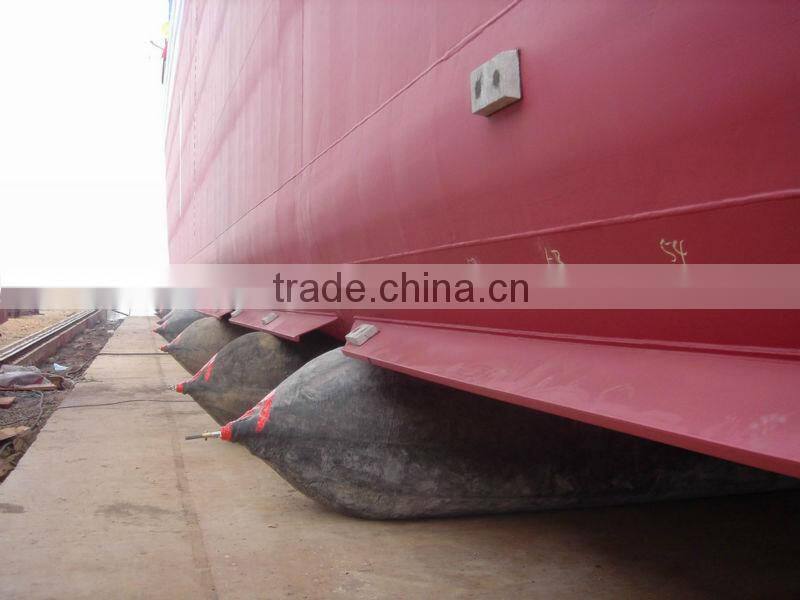

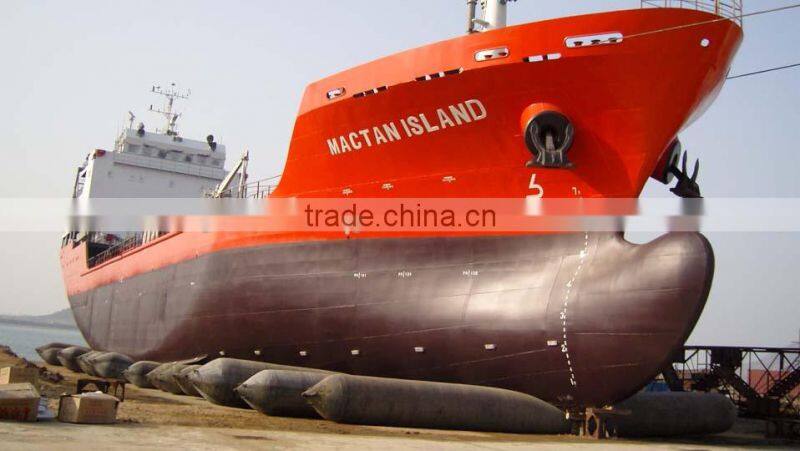

Ship Launching/Landing Marine Vessel Lifting Airbag
Specifications
1.Reliable quality assurance
2.Competitive price advantage
3.Easy installation
4.Professional technology
Applications:
1. Shipwreck salvage.
2. Floating bridge and dock construction.
3. Rescue and remove of wrecked ship.

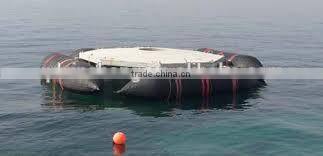

4. Can be used as pontoons for supporting docks and other floating structure.
Airbag Structure:
Specification Form of Airbag:
1> Diameter (D) : From 0.8m to 2.5m.
2> Effective Length (EL) : From 6m to 25m.
3> Total Length (TL) : From 7m to 28m.
4> Other specification of ship launching airbags also available upon customer’s request
Besides,we can according to your ship information provide you the most suitable size, etc.
DIAMETER | WORKING PRESSURE | WORKING HIGHT | GUARANTEED BEARING CAPACITY PER UNIT LENGTH | ||
KN/m | T/M | Lb/ft | |||
D=1.2m (D=3.94FT) |
0.17Mpa (24.66psi) | 0.7m(2.296ft) | 133.61 | 13.62 | 9154 |
0.6m(1.968ft) | 160.30 | 16.34 | 10983 | ||
0.5m(1.640ft) | 187.08 | 19.07 | 12818 | ||
0.4m(1.312ft) | 213.76 | 21.79 | 14646 | ||
0.3m(0.984ft) | 240.44 | 24.51 | 16474 | ||
0.2m(0.656ft) | 267.22 | 27.24 | 18309 | ||
D=1.5m (D=4.92ft) |
0.13Mpa (18.85psi) | 0.9m(2.952ft) | 122.63 | 12.50 | 8402 |
0.8m(2.624ft) | 143.03 | 14.58 | 9800 | ||
0.7m(2.296ft) | 163.43 | 16.66 | 11198 | ||
0.6m(1.968ft) | 183.94 | 18.75 | 12602 | ||
0.5m(1.640ft) | 204.34 | 20.83 | 14000 | ||
0.4m(1.312ft) | 224.75 | 22.91 | 15398 | ||
0.3m(0.984ft) | 245.15 | 24.99 | 16797 | ||
D=1.8m (D=5.90ft) |
0.11Mpa (15.95psi) | 1.1m(3.608ft) | 120.96 | 12.33 | 8287 |
1.0m(3.280ft) | 138.22 | 14.09 | 9470 | ||
0.9m(2.952ft) | 155.59 | 15.86 | 10660 | ||
0.8m(2.624ft) | 172.85 | 17.62 | 11843 | ||
0.7m(2.296ft) | 190.22 | 19.39 | 13033 | ||
0.6m(1.968ft) | 207.48 | 21.15 | 14216 | ||
0.5m(1.640ft) | 224.75 | 22.91 | 15398 | ||
0.4m(1.312ft) | 242.01 | 24.67 | 16581 | ||
0.3m(0.984ft) | 259.38 | 26.44 | 17771 | ||
0.2m(o.656ft) | 276.64 | 28.20 | 18954 | ||
NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST . | |||||

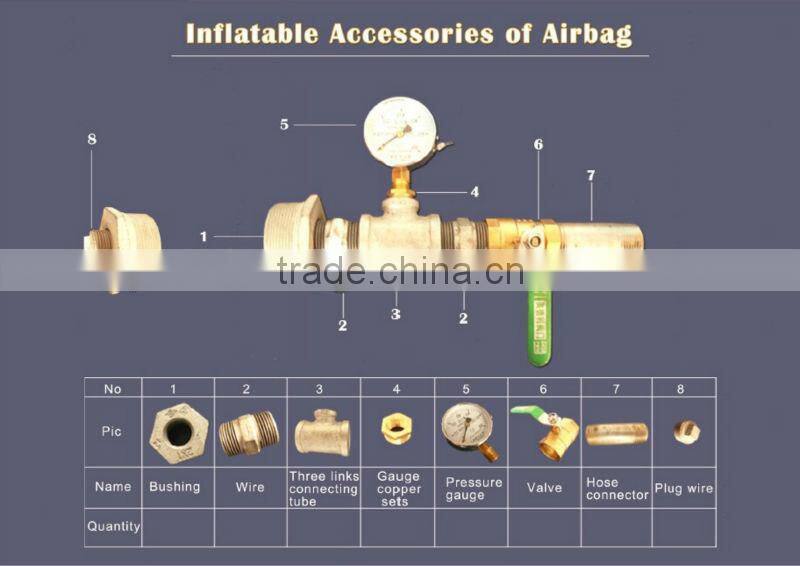

Inflatable Accessories of Airbag:
Qingdao Xincheng Rubber Products Co., Ltd, which was founded in 1986, is a collection of
production,scientific research and design, product development, technical services for the
integration of enterprises, is the professional manufacturer of ship launching airbag, Pneumatic rubber fender, marine rubber fender in China area. Company as the leading
enterprise has passed the certification of CCS , ISO9001:2008, SGS, LR etc.
We are looking forward to build business with you. If you have any questions, please feel free to contact me.
