High Lifting Force Marine Rubber Airbags,hoisting Airbag Used for Ship Launching
- Qingdao
- T/T
You May Like
-
Factory Outlet High Buoyancy Ship Lifting Airbag Custom Made Marine Pontoon
-
CCS Certification High Intense Marine Ship Launching Balloon Lifting Airbag
-
Used for Ship Lifting Type High-performance Marine Rubber Airbag
-
ISO14409 Certification Boat/Ship Launching Inflatable Rubber Airbag
-
Marine Hoisting and Moving Boat Lifting Rubber Airbag
-
Lifting Marine Rubber Airbags,boat Rubber Airbag for Ship Launching
Product Details
| Place of Origin | Shandong, China | Brand Name | Xincheng | |
| Model Number | XC.NO.A1809 | Part | Other, hoisting airbag |
Product Description
XINCHENG is the leading enterprise in the line of rubber airbag manufacturing.Keep manufacturing in strict international quality standard by ISO14409:2001 and GB/T21482-2008.

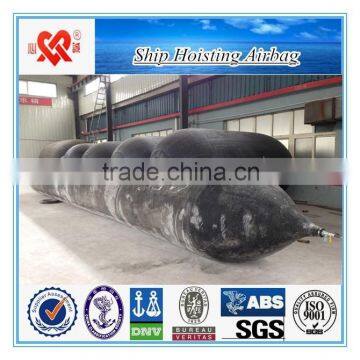

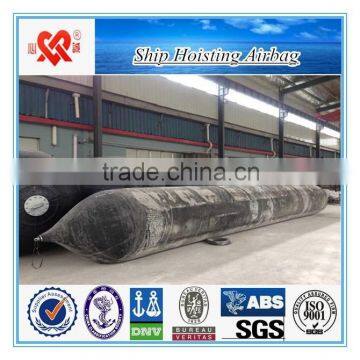

hoisting airbag also known as rubber airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by rubber & multiply layer of rubber-dipped tyre fabric.
hoisting airbag have the benefit of not only saving labor and time, but investment costs. Additionally they are flexible, portable, and dependable. Marine airbags are very popular with shipyard, ship owner, and marine supplies company now.
Advantage | 1. High strength 2. Wear resistance and anti-aging 3. Good air tightness 4. Safety and reliability 5. High kneading & compressing resistance and damping capacity |
Applicable | 1. ship launching and ship landing airbags |
2. rubber airbag for ship lifting, heavy lifting,caisson moving,upgrading,heavy building or constructions moving | |
3. Standard ship airbag maximum diameter size range is 3.0m | |

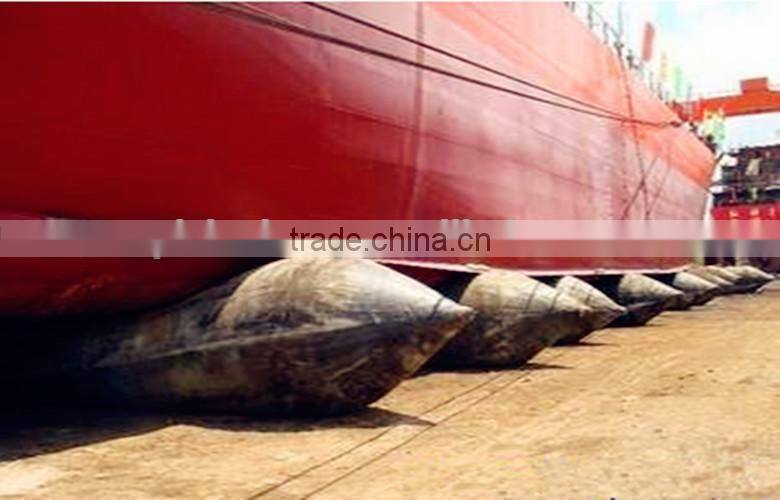

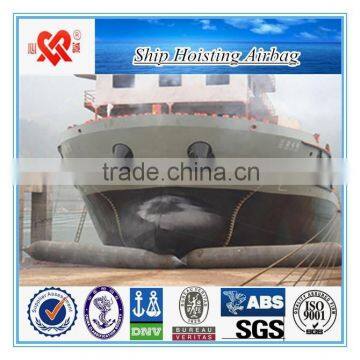

4.High-pressure ship launching marine airbags are used for ship launching, ship landing, ship lifting, loading, and floating. |

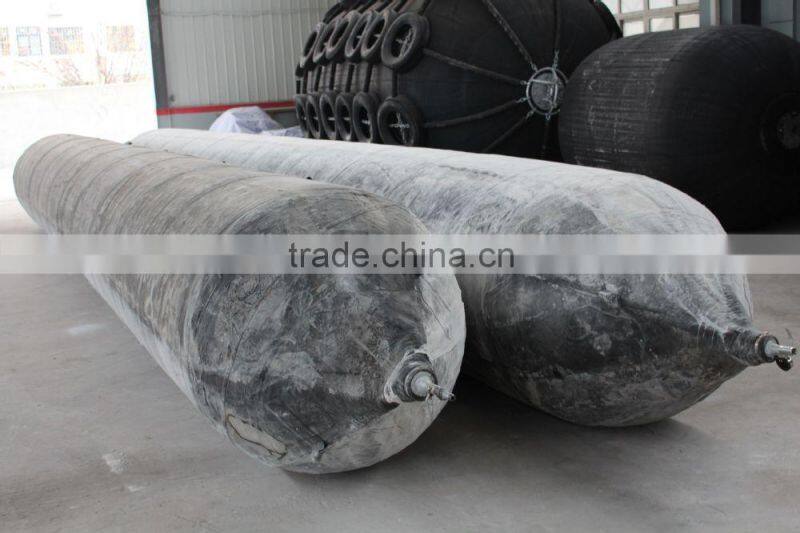

>------ The different size of hoisting airbag :
>------ hoisting airbag technical specification:
1> Diameter (D) : From 0.8m to 2.5m.
2> Effective Length (EL) : From 6m to 25m.
3> Total Length (TL) : From 7m to 28m.
4> Other specification of ship launching airbags also available upon customer’s request
Besides,we can according to your ship information provide you the most suitable size, etc.
DIAMETER | WORKING PRESSURE | WORKING HIGHT | GUARANTEED BEARING CAPACITY PER UNIT LENGTH | ||
KN/m | T/M | Lb/ft | |||
D=1.2m (D=3.94FT) |
0.17Mpa (24.66psi) | 0.7m(2.296ft) | 133.61 | 13.62 | 9154 |
0.6m(1.968ft) | 160.30 | 16.34 | 10983 | ||
0.5m(1.640ft) | 187.08 | 19.07 | 12818 | ||
0.4m(1.312ft) | 213.76 | 21.79 | 14646 | ||
0.3m(0.984ft) | 240.44 | 24.51 | 16474 | ||
0.2m(0.656ft) | 267.22 | 27.24 | 18309 | ||
D=1.5m (D=4.92ft) |
0.13Mpa (18.85psi) | 0.9m(2.952ft) | 122.63 | 12.50 | 8402 |
0.8m(2.624ft) | 143.03 | 14.58 | 9800 | ||
0.7m(2.296ft) | 163.43 | 16.66 | 11198 | ||
0.6m(1.968ft) | 183.94 | 18.75 | 12602 | ||
0.5m(1.640ft) | 204.34 | 20.83 | 14000 | ||
0.4m(1.312ft) | 224.75 | 22.91 | 15398 | ||
0.3m(0.984ft) | 245.15 | 24.99 | 16797 | ||
D=1.8m (D=5.90ft) |
0.11Mpa (15.95psi) | 1.1m(3.608ft) | 120.96 | 12.33 | 8287 |
1.0m(3.280ft) | 138.22 | 14.09 | 9470 | ||
0.9m(2.952ft) | 155.59 | 15.86 | 10660 | ||
0.8m(2.624ft) | 172.85 | 17.62 | 11843 | ||
0.7m(2.296ft) | 190.22 | 19.39 | 13033 | ||
0.6m(1.968ft) | 207.48 | 21.15 | 14216 | ||
0.5m(1.640ft) | 224.75 | 22.91 | 15398 | ||
0.4m(1.312ft) | 242.01 | 24.67 | 16581 | ||
0.3m(0.984ft) | 259.38 | 26.44 | 17771 | ||
0.2m(o.656ft) | 276.64 | 28.20 | 18954 | ||
NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST . | |||||

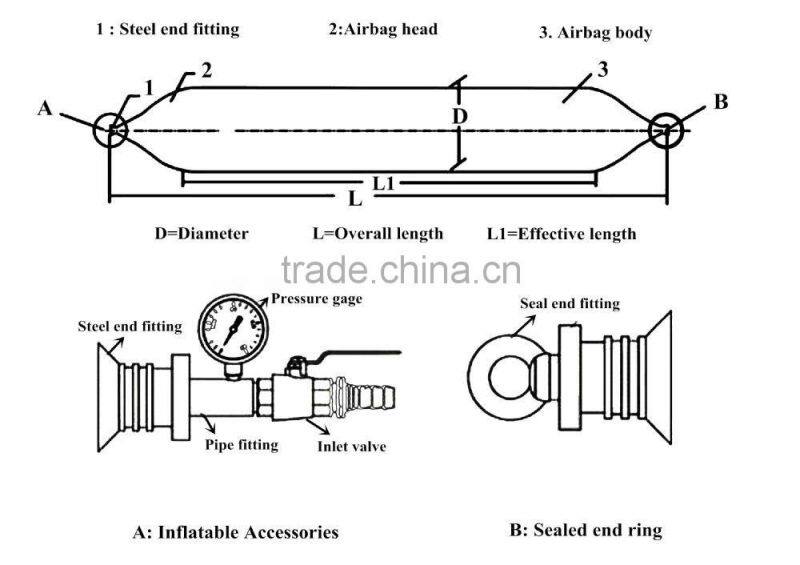

>------ Structure chart:
>------ Why do customers like to choose us:
1. Value for Money, you will get the best price based on the excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and service.
3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.Meanwhile, we have 3 years quality warranty period.
4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.
5. As our customers, we will provide a set of repaire tools with free.

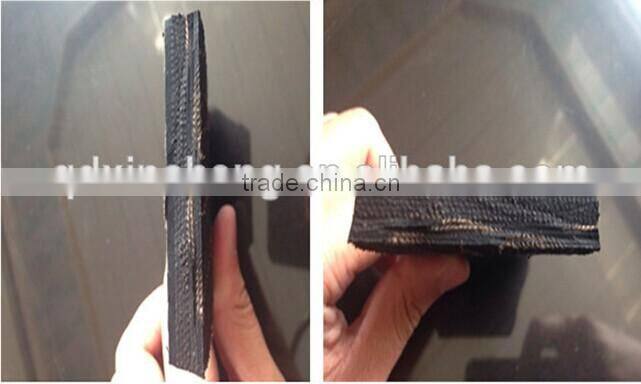

>------ The Natural Rubber Material and Fiber Layers:
>------ Our equipments:
Our company own many professional machineries (internal mixer, rubber mixing machine, four roll rubber calender, vulcanizer and vulcanizing boiler with various specifications)
PACKING : 1.Packed in Woven bags or containter. 2.It also depends on our clients' need
DELIVERY : Usually 7days, it depends on order's quantity.
PAYMENT TERM : 1. TT( 30% deposit, the balance money before shipmet. 2. L/C at sight

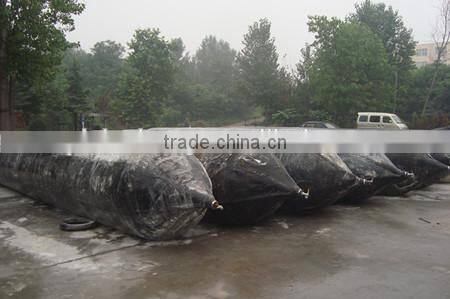

>------ Deflated transportation packing:
Qingdao Xincheng Rubber Products Co., Ltd, which was founded in 1986, is a collection of
production,scientific research and design, product development, technical services for the
integration of enterprises, is the professional manufacturer of ship launching airbag, Pneumatic
rubber fender, marine rubber fender in China area. Company as the leading enterprise has
passed the certification of CCS , ISO9001:2008, SGS, BV etc.
TOP 10 ENTERPRISES OF RUBBER PRODUCTS IN CHINA
"Quality first" is always our first principle.
We are looking forward to your inquiry and factory visitation is always welcome!
