Home > Products > Ophthalmic Instrument > operation microscope
operation microscope
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ZELLER | |
| Model Number | YZ20P6 |
Product Description
Specifications

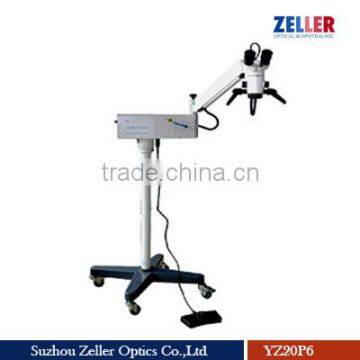

YZ20P6 operation microscope is a coaxial illumination operation microscope for one man.portable,compact common ophthalmic .YZ20P6 operation microscope is a coaxial illumination operation microscope for one man.portable,compact common ophthalmic .
1.Optical lens are all multi-coated, mild-proof and anti-reflective. Image is clear and view field is even.
2.Illumination system does no harm to tissues by using cold light source fiber. Illumination is sufficient and even.
3.Cortical remnants on the posterior capsular can be clearly observed by the 6°+0° coaxial illumination.
4.Position screw can protect the arm at any location from moving.
| Specifications: | |||
| Model | YZ20P6 | ||
| Eyepiece Magnifications | 12.5× | ||
| Objective Focus | 200mm | ||
| Working Distance | 190mm | ||
| Magnification for Main Microscope | 5.3×,8×,12× steps | ||
| Diameter of Field | F38mm,F25mm,F17mm | ||
| Adjustable Diopter | ±7D | ||
| Adjustable range for Pupil Distance | 50mm~80mm | ||
| Depth of Filed | 2mm ~ 18mm | ||
| Maximal Resolution | 100 LP/mm | ||
| Illumination Source | 12V/100W,Halogen | ||
| Illumination Type | 6°+0°cold light coaxial illumination | ||
| Coaxial Illumination | ≥30000lx | ||
| Reaching Radius of Arm | 1030mm | ||
| Adjusting Range of Balance Arm | 750 mm~1150 mm | ||
| Fine Focus Range | 30mm | ||
