Home > Products > Blow molding machine > PET bottle blow molding machine
PET bottle blow molding machine
- 5 Set / Sets per Month
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | YuFeng | Model Number | DY-2000 | |
| Voltage | Can be customize | Power(W) | 20kw | |
| Dimension(L*W*H) | 1700*1600*1900mm | Weight | 2200kg | |
| Certification | CE. | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

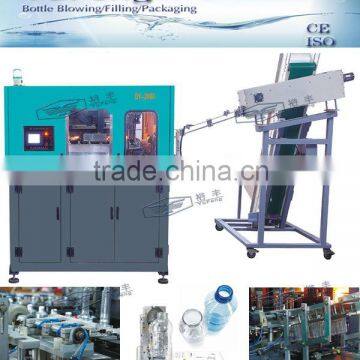

Plastic bottle blow molding machine
Description
DY-2000 is full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 1.5L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of PET
Flow chart - - - Bottle blow molding machine
Features - - - Bottle blow molding machine
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:2000BPH(2-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Technological parameter - - - Bottle blow molding machine
| Description | Unit | DY-2000 | |
| Molding | Clamping force | kg | 16000 |
| Clamping stroke | mm | 180 | |
| Stretching stroke | mm | 420 | |
| Bottom stroke | mm | 50 | |
| Cavity pitch | mm | 120 | |
| Number of cavities | 2 | ||
| Container | Max. container volume | ltr | 2 |
| Neck diameter range | mm | 38 | |
| Max. container diameter | mm | 100 | |
| Max. container height | mm | 320 | |
| Carriage unit | purchase | 560 | |
| Theoretical output | BPH | 2200 | |
| Electric System | Total power | kw | 20 |
| Heating power | kw | 17 | |
| Max. heating power | kw | 32 | |
| Air System | Operating pressure | kg/cm2 | 7-10 |
| Low pressure air consumption | ltr/min | 1400 | |
| Blowing pressure | kg/cm2 | 35 | |
| High pressure air consumption | ltr/min | 2400 | |
| Machine | Main engine size | mm | 1700*1600*1900 |
| Preform unscrambler size | mm | 1800*1100*2500 | |
| Main engine weight | kg | 2200 | |
| Preform unscrambler weight | kg | 500 | |
Preform unscrambler - - - Bottle blow molding machine
Shipment - - - Bottle blow molding machine
♣♣♣ Welcome to visit YuFeng factory ♣♣♣
Contact Us
- Zhangjiagang City Yufeng Beverage Machinery Co., Ltd.
- Contact nameMuse Jiang Chat Now
- Phone86-512-58539526
- AddressZhenbei Road, Leyu Town
