Home > Products > Blow molding machine > 6 cavity automatic PET bottle blowing machine / bottle blowing system
6 cavity automatic PET bottle blowing machine / bottle blowing system
- 3 Set / Sets per Month
- shanghai port
- T/T Credit Card
You May Like
-
Air Dryer
-
6000BPH automatic bottle blowing machine / bottle blow molding machine / bottle blower
-
Leak testing machine
-
Semi-automatic bottle unscrambler / bottle sorter/ bottle sorting table
-
semi-automatic bottle unscrambler/ sorter/ sorting machine
-
air conveying bottle unscrambler / bottle sorter/ bottle sorting machine
Product Details
| Condition | New | Application | Other, bottle | |
| Packaging Material | Other, PET | Automatic Grade | Automatic | |
| Driven Type | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | YF | Model Number | YFCM-8Y |
Product Description

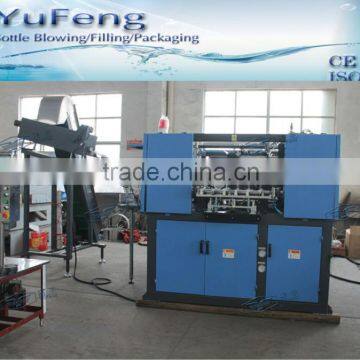

hollow blow machine:
YFCM-8Y semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
Technique Parameter of blow molding machine:
Main parameter: | ||
Model | CM-8Y | |
Container | Product material | PET |
Volume | 0.1L-2L | |
Theoretical output | 1200-1600PCS/H | |
Preform length | 15mm-350mm | |
Preform inner diameter | φ5mm-38mm | |
Moulding | Max.mould plate Dimenstion(L x W) | 350x380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 16mm | |
Machine size and weight | Main machine (L x W x H) | 160x60x161cm |
Main machine weight | 500Kg | |
Heater (L x W x H) | 187x63x145cm | |
Heater weight | 250Kg | |
Power | 17.5kw | |
