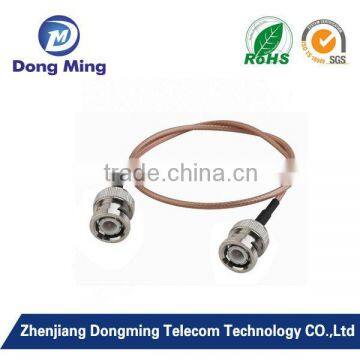

BNC plug to BNC plug coaxial cable RG316
USD $5,000 - $100,000
/ Piece
100 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- shenzhen or shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DM, DM | |
| Model Number | BNC plug to BNC plug coaxial cable RG316 | Type | Other, BNC, BNC plug to BNC plug coaxial cable RG316 | |
| Application | Other, RF,auotomtive,audio,video,microwave, RF,Auomotive,Audio,Video,Microwave | Gender | Other, male,female, female.male |
Product Description
BNC plug to BNC plug coaxial cable RG316
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
| Characteristic impedance | 50Ω/75Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~4GHz(50Ω) | VSWR | ≤1.30 | |||
| 0~2GHz(75Ω) | ||||||
| Voltage rating | 500V(r ms) | Disengage force | ≥0.6N | |||
| Contact resistance | Center conductor | ≤1.5mΩ | Durability | 500 Cycles | ||
| Outer conductor | ≤1mΩ | |||||
| Material And Plating | ||||||
| Body | Brass , nickel plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper or phosphor bronze , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Beryllium copper , gold plated | |||||
| Crimp ferrules | Copper alloy , gold or nickel plated | |||||
