Home > Products > RF connector > Inverter Sma Female Coaxial Connector Adapter

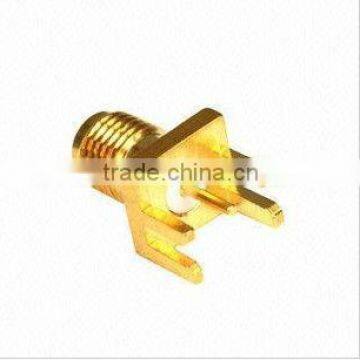

Inverter Sma Female Coaxial Connector Adapter
Negotiable
/ Piece
100 Pieces(Min. Order)
- Credit Card
You May Like
-
MCX Female Nut Bulkhead Crimp RG174 RG316 LMR100 RF Connector
-
MCX Female Right Angle Crimp Type for RG316
-
RF Connector N Female for Semi Cable
-
N Male Coaxial Connector for LMR 400connector
-
SMB Plug Male Connector Crimp RG316 RG174 LMR100
-
SMB Female Jack Connector Crimp RG316 RG174 LMR100 Phantom Radio
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DM, DM | |
| Model Number | inverter sma female coaxial connector adapter | Type | Other, SMA, inverter sma female coaxial connector adapter | |
| Application | Other, RF, RF | Gender | Female |
Product Description
inverter sma female coaxial connector adapter
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 1000V(r ms) | |||
| Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ | |
| With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | |||
| VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | ||
| With semi-rigid/flexible cable | ≤1.05+0.02F | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated or stainless steel passivated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Silicon rubber | |||||
| Crimp ferrules | Copper alloy , gold or nickel plated | |||||
