MCX male elbow RF coaxial adapter connector for RG174 cable
Negotiable
/ Piece
100 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Credit Card
You May Like
-
MCX Male Crimp Straight Connector for RG174 LMR100 RG316 cable
-
TNC female straighrt solder type
-
SMA female to female flange connector
-
BNC female jack center solder PCB mount RF Coxial Cable connector converter for Mobile signal booster repeater Antennas
-
RF connector N male right angle crimp type for RG174
-
MMCX female bulkhead coaxial connector for RG174 RG316 cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DM, DM | |
| Model Number | MCX male elbow RF coaxial adapter connector for RG174 cable | Type | Other, MCX, MCX male elbow RF coaxial adapter connector for RG174 cable | |
| Application | Other, RF, RF | Gender | Other, Male, male |
Product Description

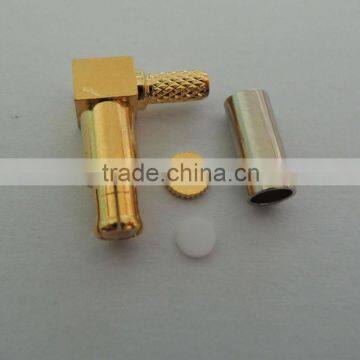

MCX male elbow RF coaxial adapter connector for RG174 cable
Series MCX are sure to fit most applications where space ,weight ,performance and easy to assembly are required in RF circuits of mobile and fixed communication system.
| Key Performance | ||||||
| Temperature range | -65~+155 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω/70Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~6GHz(50Ω) | VSWR | ≤1.20(50Ω) | |||
| 0~1.5GHz(75Ω) | ≤1.35(75Ω) | |||||
| Voltage rating | 335V(r ms) | Insertion loss | 0.1dB at 1GHz | |||
| Contact resistance | Center conductor | ≤5mΩ | Durability | 500 Cycles | ||
| Outer conductor | ≤2.5mΩ | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper ,gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Cooper alloy,nickel or gold plated | |||||
| Crimp ferrules | Beryllium copper ,gold plated | |||||
