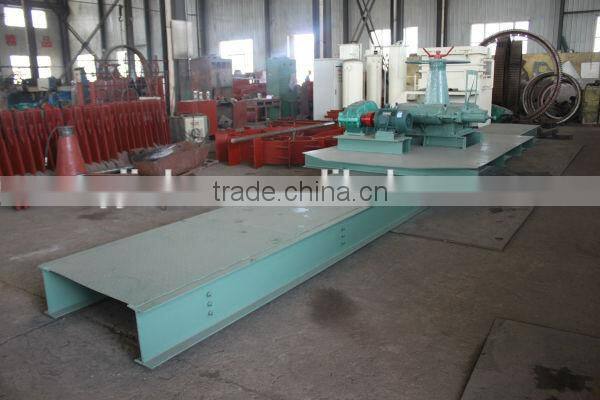

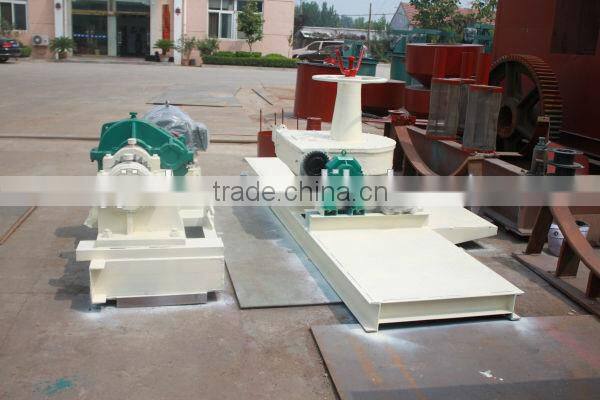

Gold Ore Beneficiation Line Center Driving Thickener

1,Adopt the reducer and the worm gear transmission,High transmission torque,high efficiency,and is provided

with a torque protection device,convenient to use.

2,When The load is too large,the scrape mud system underwater can be lifted manually (or electric),then

gradually decreased,scraping sludge by layer;

3,The setting mud with a small scraper mixing and scraping mud,discharging mud completely, no blockage.

It is mainly dehydration in the beneficiation process of wet concentrate, as using concentrate for the first stage of

dehydration.In general,install between the selection and filtration equipment,sometimes as selected before dehydrat

ion,it also can be used for the dewatering operation in chemical industry and coal preparation plant.

1. Feeding equipment
2. Screening equipment
3. Crushing machine
4. Grinding equipment
5. Spiral classifier
6. Floating equipment
7. Stirred tank
8. Thickening equipment
9. Cyaniding equipment
10. Gravity separation equipment
11. Magnetic separator
12. Hydrocyclone
13. Filter equipment

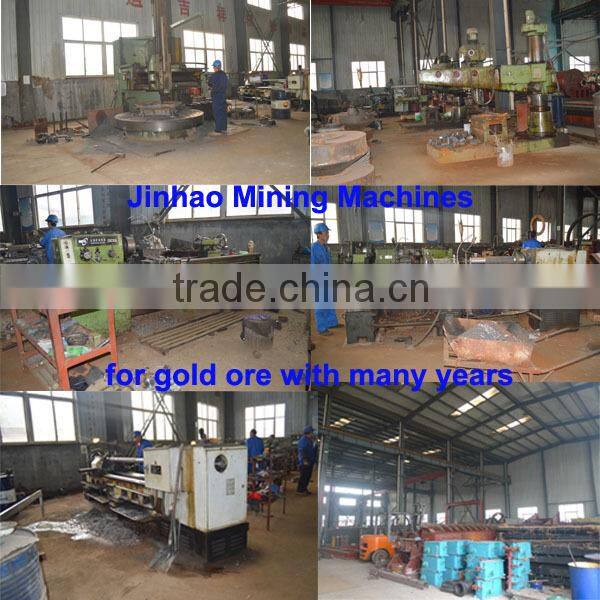

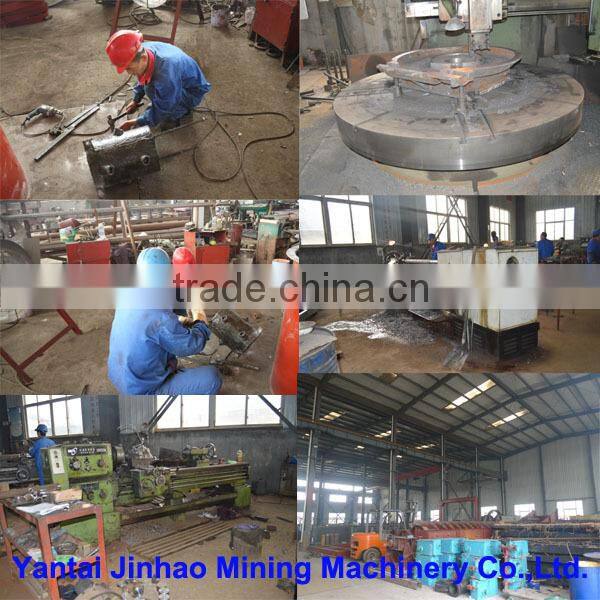

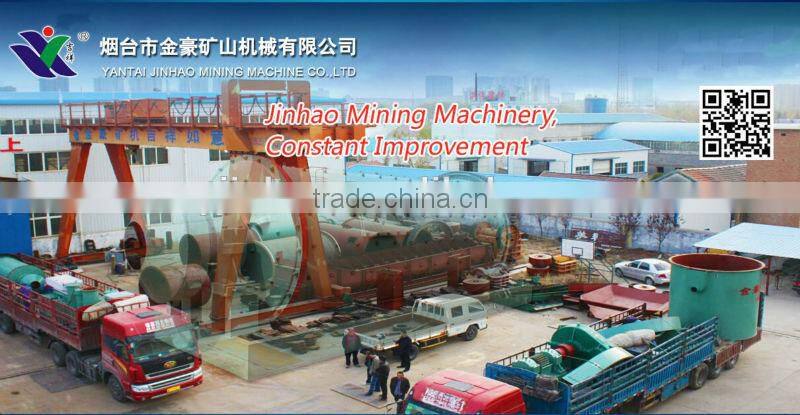

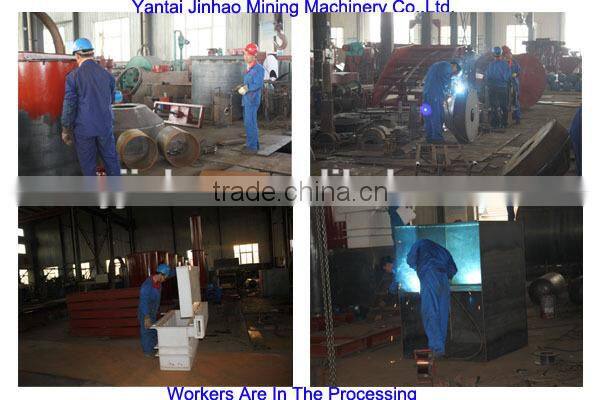

   Yantai Jinhao Mining Machinery Co., Ltd. devotes in manufacturing dressing equipment for non-ferrous

metal ores and other ores. It covers 45000 square meters with 40 units of professional huge processing machinery in good condition. We supply not only high quality machinery, but the assembling instruction,

testing instruction of the equipment, and the overall service including design of the production line of ore dressing / smelting, personnel training, and technique guidance. With good quality and service, all types

of our product are sold and more and more applied in more than 30 countries with good reputation .
