Fiber Glass Adhesive Tape Insulating Material Used For Iron Core/Motor

FOB Price

US$ 0.08 - 0.25 / Meter

1000 Meters(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Hai Ying
Model Number	2853-w,2841-w,2830	Type	Insulation Tape
Material	Other, Fiberglass, Glass Fiber	Application	Other, Transformer,Motor,Arrester
Tensile Strength	≥1500N/cm

Product Description

Specifications

1> MOQ:2000M
2>Supply Abilities:4500000M/Month
3>ISO9001:2008 SGS Certificate
4>EXW Price

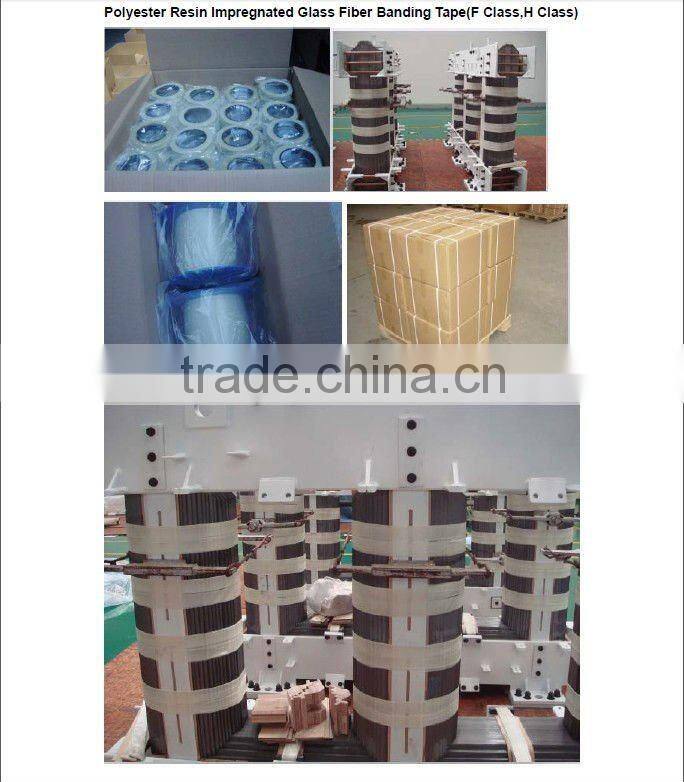

Manufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual Inductor

Popular & Best-selling Insulating Fiber Glass Tape:

"HaiYing"H180, F155,B130 banding tapes consist of parallel twisted E-glass yarns preimpregnated with a special thermosetting polyester resin. The banding tape is pliable and tacky. Its web structure provides easy unwind without glass strands separation and overlapping.The product contributes the characteristics of high tensile strength, high resistance to shocks, high modulus of elasticity, dimensional stability as well as no magnetically confining and eddy currents losses, which can be widely used as ideal banding materials for electrical motors, transformers and lightning arresters.

Properties:

Type	2850-W	2841-W	2830
Thermal class	H	F	B
Volatile content	≤2%	≤4%	≤5%
Loss of weight at calcination	26%±2%	26%±2%	26%±2%
Soluble resin content	≥90%	≥90%	≥90%
Tensile strength before curing	≥2000N/cm(0.33mmT)	≥1500N/cm(0.3mmT)	≥500N/cm(0.17mmT)
Maximum pull while banding	1500N/cm	1000N/cm	400N/cm

Specification:

Thickness (mm)	Width (mm)	Length (M/pancake)
0.17	10,15,20,25,30	250
0.17	50	100,120
0.3/0.33	10,15,20,25,30	200
0.3/0.33	50	100

* Special specification and package are availabe upon request, (such as spool)

Curing cycles:

Temperature (°C)	160	150	135	120	115
Time (hour)	5	6	8	16	24

* The above times do not include the time for the workpiece to reach the curing temperature.

Storage stabili:

Storage temperture °C	10	15	20	30
Time (month)	12	10	6	3
