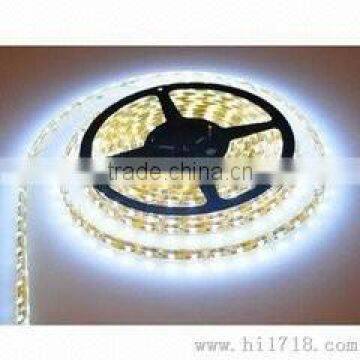

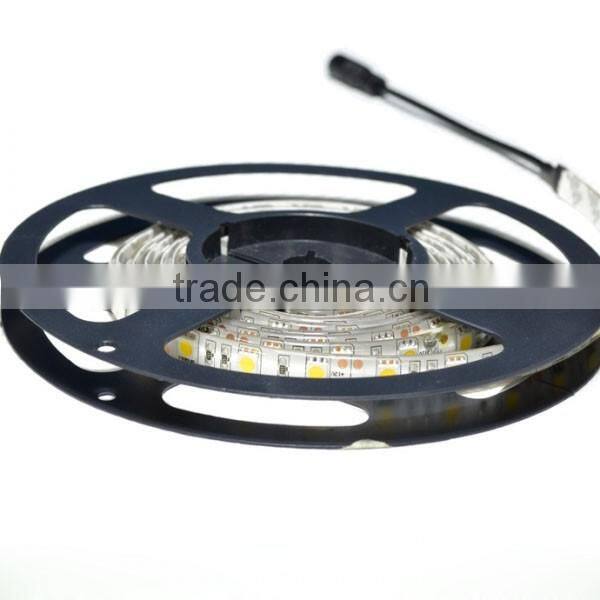

IP20 Single Color DC12V/24V SMD5050 30LEDs Flexible LED Strip Light Strips

   IP20 single color DC12V/24V SMD5050 30LEDs  flexible LED strip light strips

1.Features

1. TOP Epistar Chip SMD5050 LED, 20-25lm/LED, 120deg beam angle

2. Easy to install for any bending

3. Low power consumption,  free maintenance

4. 30000hrs lifespan or 5year warranty

5. Certification: CE & RoHS

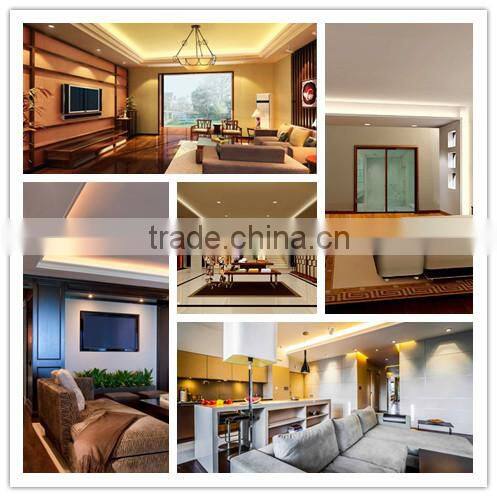

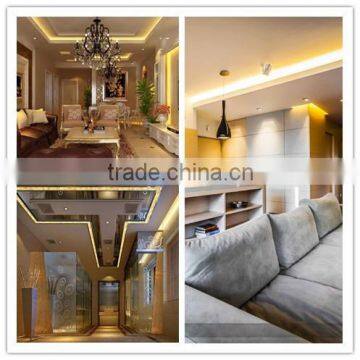

2.Application

1. Cove lighting

2. Architectural lights for canopy, corridor, window, archway

3. Backlight or edge lighting for signage

4. DIY lights for home use

5. Path and contour marking

6. Decorative lights for holiday, event, show, exhibition

7. Special light effect for art gallery and glass-made items

3. Parameter

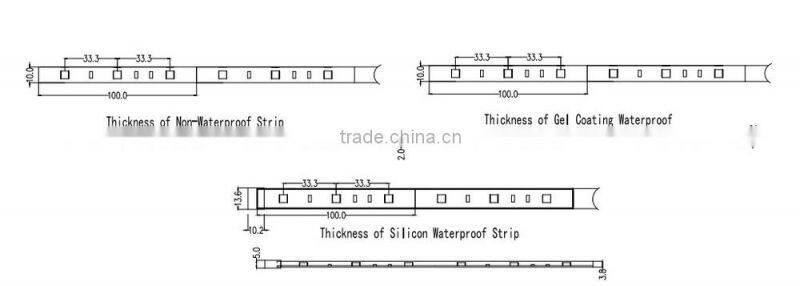

 4. Dimension

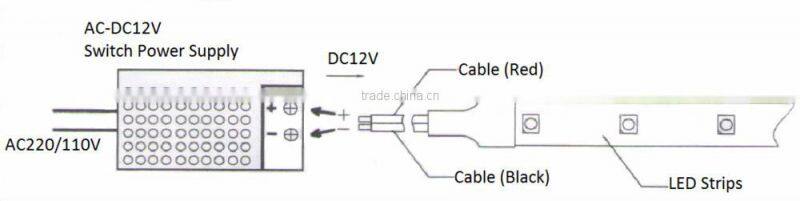

5.Connect Drawing

6. Package

7.Notes

1. Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 12V before power supply concatenation,working voltage is 12V, Wrong voltage concatenation will cause permanent damage.

2. Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.

3. Ensure cable outlet of strip to be waterproof

4. Prohibit touching and operating with static.

5. Please use qualified SMPS with short circuit protection S.O.P. certificate.

6. Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and low voltage    transmission cable.

7. Don’t hit,squeeze strip, don’t bend strip overly

8. Ensure installed surface tidy, clean and dry.

9. Avoid rain and mechanical vibration.

10. Place SMPS in ventilated and dry environment.

11. Usually only80-90% of SMPS total power is consumed
