2015 Hot Sale SMD3528 Led Strip Light 300LED Red
US$ 1 - 8
/ Meter
200 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
-
Hot Sell High Quality SMD 3014 Non-waterprooof Flexible LED Strip 3014 With CE RoHS UL
-
Hot Sell High Quality Epistar Chip SMD 3014 Flexible LED Strip 3014 With CE RoHS UL
-
5year Warranty SMD 3014 Non-waterprooof Flexible LED Strip 3014 With CE RoHS UL Quality Choice
-
5year Warranty Epistar Chip SMD 3014 Flexible LED Strip 3014 With CE RoHS UL
-
Super Brightness Warm White SMD2835 60LED LED Flexible Strip Light 2835 With CE RoHS
-
UL CE RoHS Certified SMD3528 LED Flexible Strip Light DC12 24V IP33 3528
Product Details
| LED Light Source | SMD3528 | Type | Flex LED Strips | |
| Input Voltage(V) | DC12&DC24V | Lamp Power | 4.8W | |
| Lamp Luminous Flux(lm) | 390lm | Color Temperature(CCT) | 2400K-12000K | |
| Working Temperature(℃) | -30, 40 | Working Lifetime(Hour) | 30000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | Other, Warm White, WW/NW/CW/R/G/B/RGB | Place of Origin | Guangdong, China | |
| Brand Name | Hanron | Model Number | HR00-A12AWW60 |
Product Description
2015 Hot Sale SMD3528 led strip light 300LED Red
Features
1. TOP Epistar Chip SMD3528 LED, 7-8lm/LED, 120deg beam angle
2. Easy to install for any bending
3. Low power consumption, free maintenance
4. 30000hrs lifespan or 5year warranty
5. Certification: CE & RoHS

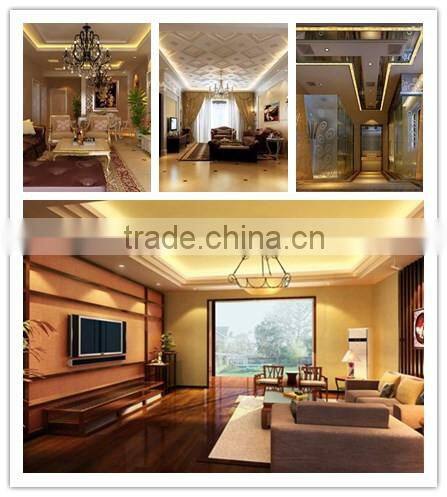

Application
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Parameter
| Item NO. | LED Type | LED QTY (PCS) | Voltage (V) | Power (W/M) | Color | Wave Length/C. T. | Luminous Flux/M | Beam Angle | Protect Level | DIMENSION (MM) | PCB COLOR | PACKAGE |
| HR00-A12AWW60P | SMD3528 | 60 | DC12/DC24 | 4.8 | W | 2800-3200K | 390LM±10% | 120° | IP20/ IP65/ IP67/ IP68 | 5000*8 | White | 5m/Reel |
| HR00-A12ANW60P | SMD3528 | 60 | DC12/DC24 | 4.8 | WW | 400-4500K | 390LM±10% | 5000*8 | White | 5m/Reel | ||
| HR00-A12AW60P | SMD3528 | 60 | DC12/DC24 | 4.8 | CW | 5500-6500K | 390LM±10% | 5000*8 | White | 5m/Reel | ||
| HR00-A12AR60P | SMD3528 | 60 | DC12/DC24 | 4.8 | RED | 620-630nm | 120LM±10% | 5000*8 | White | 5m/Reel | ||
| HR00-A12AY60P | SMD3528 | 60 | DC12/DC24 | 4.8 | YELLOW | 585-595nm | 120LM±10% | 5000*8 | White | 5m/Reel | ||
| HR00-A12AB60P | SMD3528 | 60 | DC12/DC24 | 4.8 | BLUE | 465-475nm | 72LM±10% | 5000*8 | White | 5m/Reel | ||
| HR00-A12AG60P | SMD3528 | 60 | DC12/DC24 | 4.8 | GREEN | 520-530nm | 210LM±10% | 5000*8 | White | 5m/Reel |

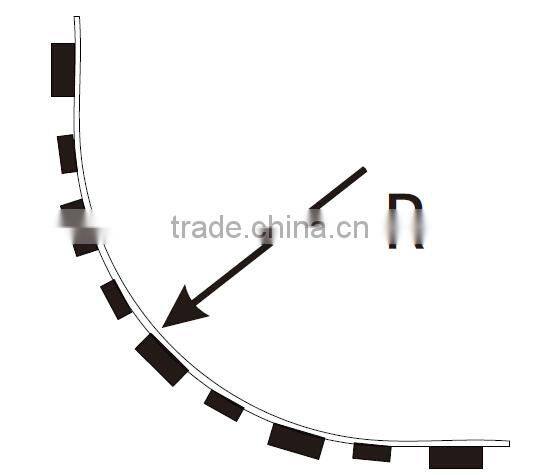

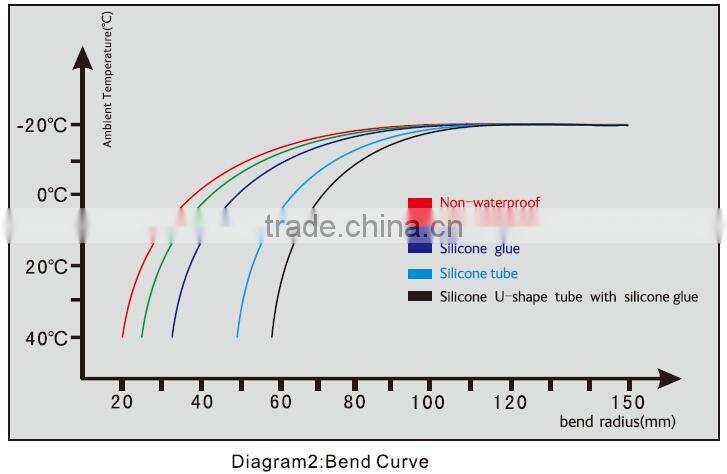

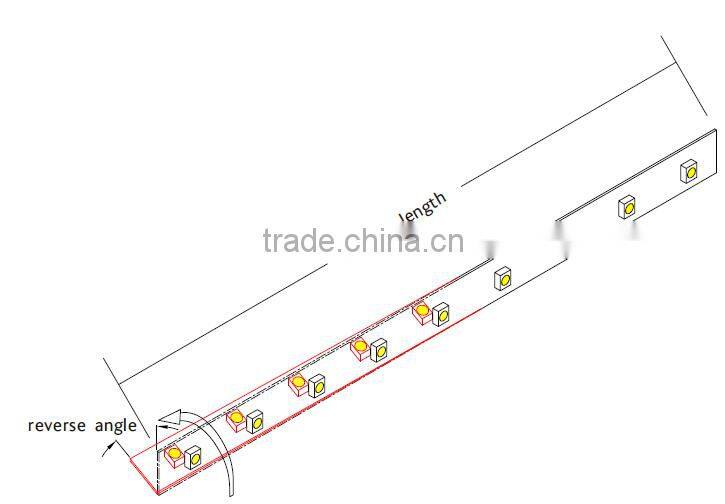

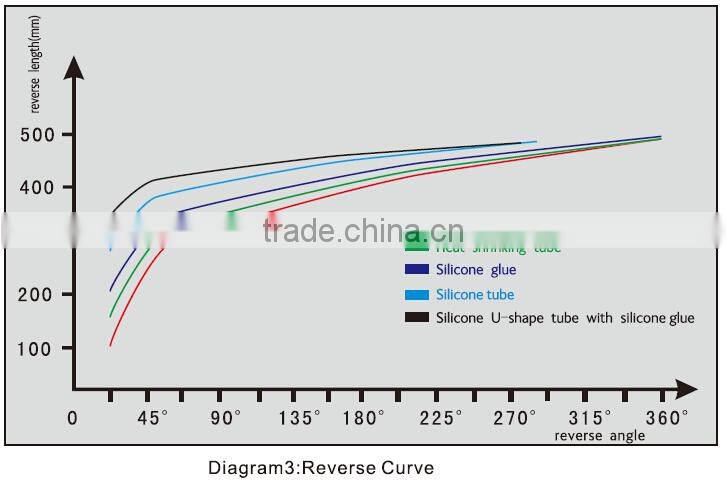

Curve Line
Dimension
Connect Drawing

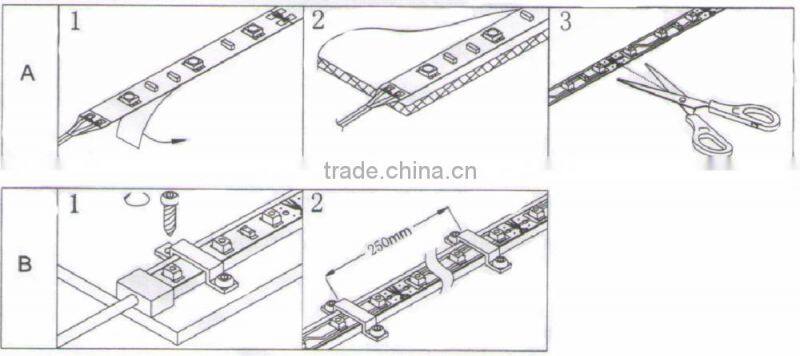

Installation
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.

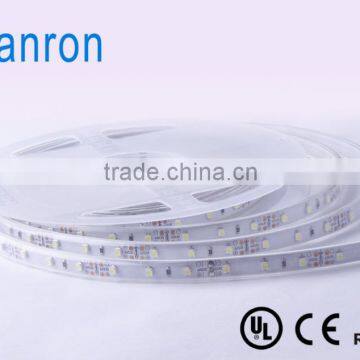

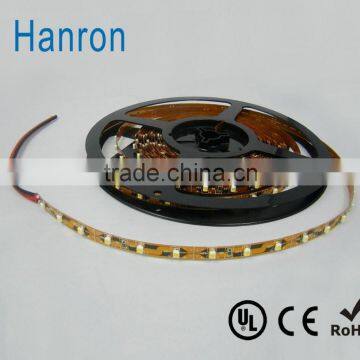

3528 LED Stirps Light
