DC24V Waterproof LED Strip Lighting Accessories Connectors Smd 3528 60leds uv LED Strips Lights
US$ 1 - 10
/ Meter
200 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
-
Underwater Glue Waterproof Epistar DC 24V IP68 Warm White LED Strip Smd 3528 60leds LED Strip Light Lighting
-
Underwater Warm White Glue Waterproof Epistar DC 12V IP68 LED Strip Smd 3528 60leds LED Strip Light Lighting
-
5 Years Warranty Nature White DC 24V Waterproof IP65 LED Strip Smd3528 60leds LED Strip Light Lighting
-
5 Years Warranty DC24V 30 LEDS SMD 2835 Flexible Led Strip Rope Light
-
5 Year Warranty 24V Smd 2835 Waterproof IP65 30leds LED Strip Light
-
Waterproof DC 24V 30Leds SMD2835 Flexible Led Strip Rope Light
Product Details
| LED Light Source | LED | Type | Flex LED Strips | |
| Input Voltage(V) | DC24V | Lamp Power | 4.8W/M | |
| Lamp Luminous Flux(lm) | 7-8lm/LED | Color Temperature(CCT) | 2400K-12000K | |
| Working Temperature(℃) | -40, 50 | Working Lifetime(Hour) | 30000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | Warm White | Place of Origin | Guangdong, China | |
| Brand Name | Hanron | Model Number | HR00-A24EWW60PA |
Product Description

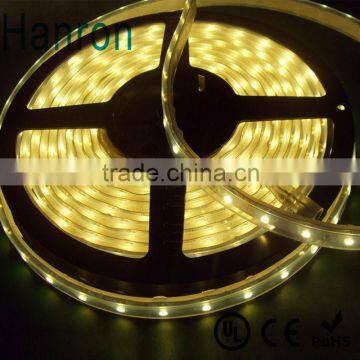

DC24V waterproof LED Strip lighting accessories connectors smd 3528 60leds uv LED strips lights
SMD3528LED Strip Specification:
| Item NO. | HR00-A24EWW60PA |
| Voltage | 24V |
| Power | 4.8W/Meter |
| Led number | 60leds/Meter |
| CCT | 2800-3200K |
| Color | Warm White |
| IP Grade | IP66 Silicone Tube Waterproof |
| Certificate | CE&RoHS |
| Warranty | 5Year |
Features:
TOP SMD2835 chip, high brightness, wide beam angle, low decay.
Low power consumption, long life span, free maintenance
Easy to install for any bending
Storage temperature:-50℃ - 60℃
Working temperature: -40℃ - 50℃
Certification: CE & RoHs

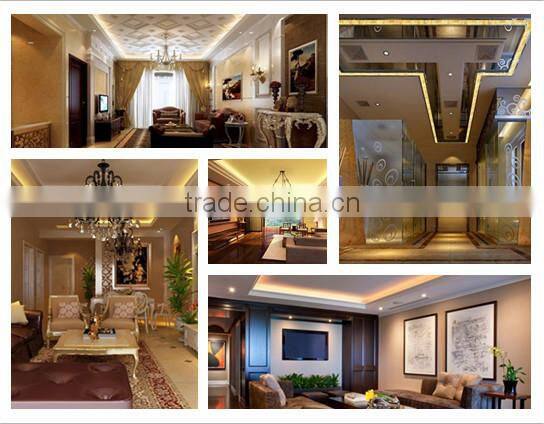

Application:
- Cove lighting
- Backlight or edge lighting for signage
- Path and contour marking
- Architectural lights for canopy, corridor, window, archway
- Special light effect for art gallery and glass-made items
- Path and contour marking
- DIY lights for home use
Parameter
| Item NO. | Description | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level | Size |
| Angle | (mm) | ||||||
| HR00-A24AWW60PA | Non-Waterproof SMD3528 SMD3528 | WW | 2800-3200K | 450LM±10% | 120° | IP20 | 5000*8*2mm |
| HR00-A24ANW60PA | NW | 4000-4500K | 450LM±10% | ||||
| HR00-A24AW60PA | W | 5500-6500K | 450LM±10% | ||||
| HR00-A24AR60PA | Red | 620-630nm | 136LM±10% | ||||
| HR00-A24AY60PA | Yellow | 585-595nm | 136LM±10% | ||||
| HR00-A24AB60PA | Blue | 465-475nm | 84LM±10% | ||||
| HR00-A24AG60PA | Green | 520-530nm | 242LM±10% | ||||
| HR00-A24DWW60PA | Silicone Waterproof SMD3528 60LED/M | WW | 2800-3200K | 450LM±10% | 120° | IP65 | 5000*8*2.2mm |
| HR00-A24DNW60PA | NW | 4000-4500K | 450LM±10% | ||||
| HR00-A24DW60PA | W | 5500-6500K | 450LM±10% | ||||
| HR00-A24DR60PA | Red | 620-630nm | 136LM±10% | ||||
| HR00-A24DY60PA | Yellow | 585-595nm | 136LM±10% | ||||
| HR00-A24DB60PA | Blue | 465-475nm | 84LM±10% | ||||
| HR00-A24DG60PA | Green | 520-530nm | 242LM±10% | ||||
| HR00-A24EWW60PA | Silicone Tube Waterproof SMD3528 Waterproof 60LED/M | WW | 2800-3200K | 450LM±10% | 120° | IP67 | 5000*8*3.8mm |
| HR00-A24ENW60PA | NW | 4000-4500K | 450LM±10% | ||||
| HR00-A24EW60PA | W | 5500-6500K | 450LM±10% | ||||
| HR00-A24ER60PA | Red | 620-630nm | 136LM±10% | ||||
| HR00-A24EY60PA | Yellow | 585-595nm | 136LM±10% | ||||
| HR00-A24EB60PA | Blue | 465-475nm | 84LM±10% | ||||
| HR00-A24EG60PA | Green | 520-530nm | 242LM±10% | ||||
| HR00-A24FWW60PA | Glue Filling Waterproof SMD3528 60LED/M | WW | 2800-3200K | 450LM±10% | 120° | IP68 | 5000*8*3.8mm |
| HR00-A24FNW60PA | NW | 4000-4500K | 450LM±10% | ||||
| HR00-A24FW60PA | W | 5500-6500K | 450LM±10% | ||||
| HR00-A24FR60PA | Red | 620-630nm | 136LM±10% | ||||
| HR00-A24FY60PA | Yellow | 585-595nm | 136LM±10% | ||||
| HR00-A24FB60PA | Blue | 465-475nm | 84LM±10% | ||||
| HR00-A24FG60PA | Green | 520-530nm | 242LM±10% |
Dimension
Connect Drawing
Installation
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
Certificate
Factory Tour 1
Factory Tour 2
Our Advantage
Quality Control
DC24V waterproof LED Strip lighting accessories connectors smd 3528 60leds uv LED strips lights
DC24V waterproof LED Strip lighting accessories connectors smd 3528 60leds uv LED strips lights
DC24V waterproof LED Strip lighting accessories connectors smd 3528 60leds uv LED strips lights
