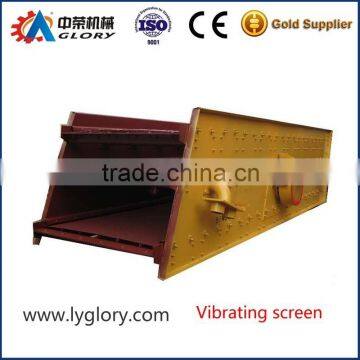

High efficiency vibrating screen with good service
- 100 Set / Sets per Month
- Qingdao or per demand
- T/T
You May Like
Product Details
Condition | New | Type | Other, Circular, Circular | |
Application | Other, Ore, Aggregate Field, Concrete Mixing Plant etc | Place of Origin | Henan, China | |
Brand Name | Zhongrong, OEM | Model Number | Per specification | |
Voltage | Per specification | Power(W) | 15-74 kw | |
Dimension(L*W*H) | Per specification | Weight | Per specification | |
Certification | ISO9001, CE | Warranty | 12 months, 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The moving road of this screen is similar as a circle, so it is called Circular Vibrating screen. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and eccentric block helps to adjust amplitude. This kind of screen is of long screening stream line and more sieving specifications. So it is widely used for grading in the industries of quarry, building material, transportation, energy, chemical industry, etc.
Technical data:
Model | Screen Area (m²) | Installation angle (°) | Screen Size (mm) | Max. Feed Size (mm) | Vibrating Frequency (r/min) | Double Swing (mm) | Power (kW) | Capacity (t/h) | Weight (t) |
2YKN2160 | 12.6 | 20 | 6~150 | 400 | 800-900 | 7~11 | 30 | 100~600 | 8.8 |
3YKN2160 | 12.6 | 20 | 6~150 | 400 | 800-900 | 7~11 | 37 | 100~600 | 11.1 |
4YKN2160 | 12.6 | 20 | 6~150 | 400 | 800-900 | 7~11 | 45 | 100~600 | 13.2 |
2YKN2460 | 14.4 | 20 | 6~150 | 400 | 800-900 | 7~11 | 30 | 150~850 | 9.1 |
3YKN2460 | 14.4 | 20 | 6~150 | 400 | 800-900 | 7~11 | 37 | 150~850 | 12 |
4YKN2460 | 14.4 | 20 | 6~150 | 400 | 800-900 | 7~11 | 45 | 150~850 | 13.8 |
2YKN3072 | 21.6 | 20 | 6~120 | 300 | 800-900 | 7~10 | 2×37 | 200~1200 | 18.9 |
3YKN3072 | 21.6 | 20 | 6~120 | 300 | 800-900 | 7~10 | 2×45 | 200~1200 | 23.5 |
Working principle:
The vibrating screen uses the motor to driver the eccentric shaft to make the screen body periodically along with the direction of vibration force.The materials make circular movement on the screen to realize sieving.
Features:
1. It uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of high strength.
3.The side plate of the screen box use the steel which make the boiler,the steel have high strength and strong impact-resistance.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption,and little noise.
Applications: grading in the industries of quarry, building material, transportation, energy, chemical industry, etc.
Processing Capacity:

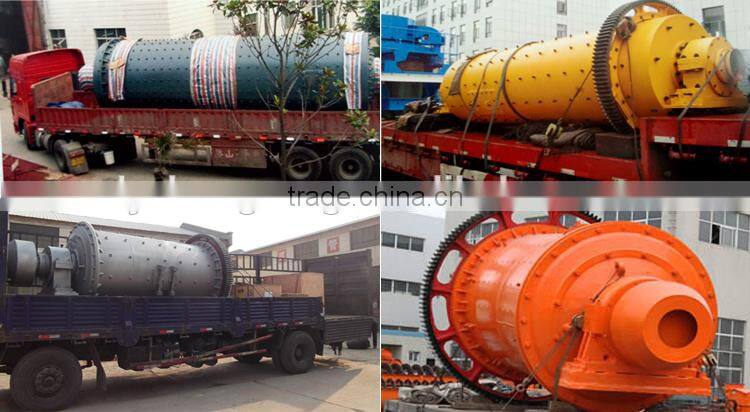

Packaging photos:
Customer Visit:
Welcome to contact and visit us.
