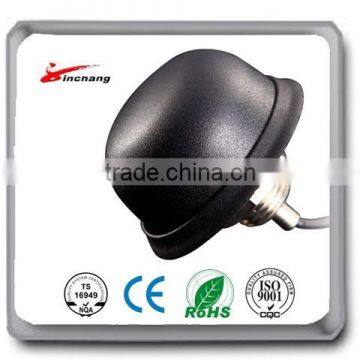

(Manufactory) Free sample high quality GPS+GSM Combi high powered car auto Antenna With SMA SMB MCS FAKRA

FOB Price

USD $2 - $10 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JINCHANG
Model Number	JCB601

auto antenna

1 Electrical Characteristics

1.1 Dielectric Antenna

Form 1

No.	Item	Specifications	Post Environmental Tolerance
1	Center Frequency	1575.42 MHz	±3 MHz
2	Band Width	±5 MHz	±1 MHz
3	V.S.W.R(in BW)	1.5:1	—
4	Gain(Zenith)	3 dB	±0.5 dB
5	Polarization	RHCP	—
6	Impedance	50 Ω	—

1.2 LNA/Filter

Form 2

No.	Item	Specifications	Post Environmental Tolerance
1	LNA Gain	14±2 dB	±2.5 dB
2	Noise Figure	1.5 dB	—
4	DC Voltage	2.7~5.5V
5	DC Current	5~15 mA

1.3 GSM Antenna

Form 3

1.4 Mechanical

Form 4
